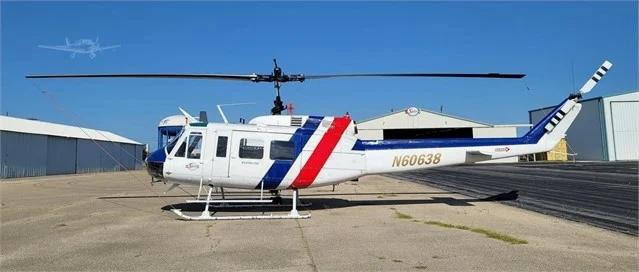

1968 BELL UH-1H
Reg # N60638
$795,000
Summary
Beautiful Aircraft, Well Maintained, Nicely Equipped with SPARE -0- TSO Transmission and Isolair Eliminator II Water Tank - 350 gal, BatteryMinder Charging System, Blade shipping Boxes.
LOCATED in TEMPLE, TEXAS - AVAILABLE IMMEDIATELY!
Airframe:
Total Time: 4841
Engines:
Lycoming T53 L-13
Time: 4200
LOCATED in TEMPLE, TEXAS - AVAILABLE IMMEDIATELY!
Airframe:
Total Time: 4841
Engines:
Lycoming T53 L-13
Time: 4200

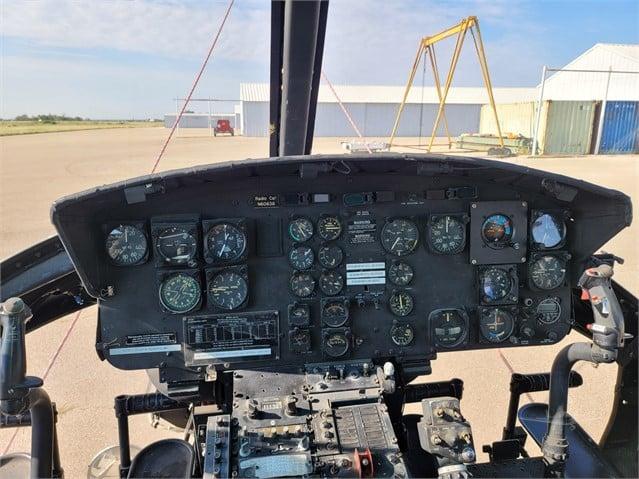

Avionics
• (2) C-1611 Audio Distribution Panels
• UHF Control Panel C-6287/ARC-51BX UHF Transceiver
• FM Control Panel C-3835/ARC-54 FM Transceiver
• VHF AM/FM RT-1354 Control Panel/ARC-186 Transceiver
• VHF Nav/Com Control Panel/ARN-82 Transceiver
• ADF C-6899 Control Panel/ARN-83 Receiver
• Transponder/Bendix King KT-76A
• UHF Control Panel C-6287/ARC-51BX UHF Transceiver
• FM Control Panel C-3835/ARC-54 FM Transceiver
• VHF AM/FM RT-1354 Control Panel/ARC-186 Transceiver
• VHF Nav/Com Control Panel/ARN-82 Transceiver
• ADF C-6899 Control Panel/ARN-83 Receiver
• Transponder/Bendix King KT-76A

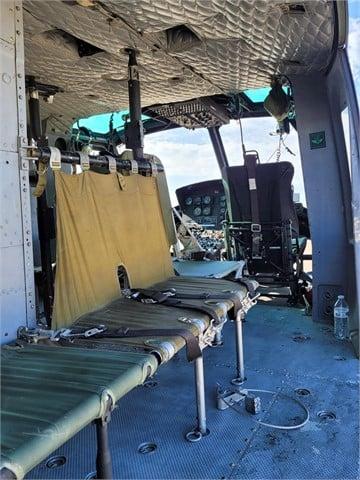

Interior
10 Place Troop Seating
Additional Equipment
• Dual Controls
• Co-Pilot Instruments
• Bleed Air Heater
• High Skid Landing Gear w/Steps
• Concorde Lead Acid Battery
• Cargo Hook w/Dual Cargo Mirrors
• Wire Strike Protection System
• Glass Windshields
LOOSE EQUIPMENT HIGHLIGHTS
• Complete Logs and Flight Manual
• Ground Handling Wheels w/Tow Bar
• M/R Blade Tie Downs & Blade Shipping Boxes (Metal)
• Isolair Eliminator II Water Tank System (350 gal)
• Spare Transmission –0– TSO
• BatteryMINDER Charging System
• Co-Pilot Instruments
• Bleed Air Heater
• High Skid Landing Gear w/Steps
• Concorde Lead Acid Battery
• Cargo Hook w/Dual Cargo Mirrors
• Wire Strike Protection System
• Glass Windshields
LOOSE EQUIPMENT HIGHLIGHTS
• Complete Logs and Flight Manual
• Ground Handling Wheels w/Tow Bar
• M/R Blade Tie Downs & Blade Shipping Boxes (Metal)
• Isolair Eliminator II Water Tank System (350 gal)
• Spare Transmission –0– TSO
• BatteryMINDER Charging System
Remarks
TIMES REMAINING/KEY COMPONENTS
- M/R Blades x 2 1772.0
- M/R TT Straps 1772.0
- M/R Trunnion 14602.9
- Inb/Outb Fittings/Pins 1633.9
- Stab Bar Support x 2 3666.0
- Stab Bar Frame x 2 11844.0
- Drag Brace Clevis x 2 2833.9
- Scissors/Sleeve OH 723.0
- Swashplate Assy OH 768.1
- Mast Assy OH 1350.7
- Main Transmission 195.0*
- Main Driveshaft OH 2398.6
- 42 Deg Gearbox OH 4550.1
- 90 Deg Gearbox OH 1170.0
- T/R Grips x 2 1311.6
- T/R Blade x 1 354.9
- T/R Blade x 1 512.6
- Engine Overhaul 1531.7
* Spare –0– TSO Transmission Included
- M/R Blades x 2 1772.0
- M/R TT Straps 1772.0
- M/R Trunnion 14602.9
- Inb/Outb Fittings/Pins 1633.9
- Stab Bar Support x 2 3666.0
- Stab Bar Frame x 2 11844.0
- Drag Brace Clevis x 2 2833.9
- Scissors/Sleeve OH 723.0
- Swashplate Assy OH 768.1
- Mast Assy OH 1350.7
- Main Transmission 195.0*
- Main Driveshaft OH 2398.6
- 42 Deg Gearbox OH 4550.1
- 90 Deg Gearbox OH 1170.0
- T/R Grips x 2 1311.6
- T/R Blade x 1 354.9
- T/R Blade x 1 512.6
- Engine Overhaul 1531.7
* Spare –0– TSO Transmission Included
