*AVAILABLE FOR VIEWINGS AT DALLAS LOVE FIELD (KDAL)*

- Always Hangared
- No Damage History
- Batch 3.4 Avionics Upgrade
- Airframe on Smart Parts Plus
- Engines on Rolls Royce Corporate Care
- APU on Honeywell MSP
- Avionics on Honeywell Avionics Protection Plan (HAPP)
- Partial Refurbishment, Cabin Management System Upgrade and Complete Repaint in 2015
- Increased MTOW to 98,000 lbs (SB 700-11-016)
- Crew Force Measuring System (SB 700-31-020)
- FAR Part 91 Certified
- Honeywell Primus Elite DU-875 Display Upgrade
- TCAS 7.1

Airframe:
Total Time: 4,833
Total Landings: 1,490

Certificate of Airworthiness: June 2004
Entry Into Service: March 2005

Certification: FAR Part 91

Total Time Since New: 4,833 Hours
Total Landings Since New: 1,490

Program Coverage: Enrolled on Smart Parts Plus

Maintenance Tracking: CAMP

Engines:
ROLLS ROYCE BR700-710A2-20
Time: 4789/4833

APU:
Time: 3487
Program Coverage: Enrolled on Honeywell MSP

TYPE OF UNIT / QUANTITY / DESCRIPTION

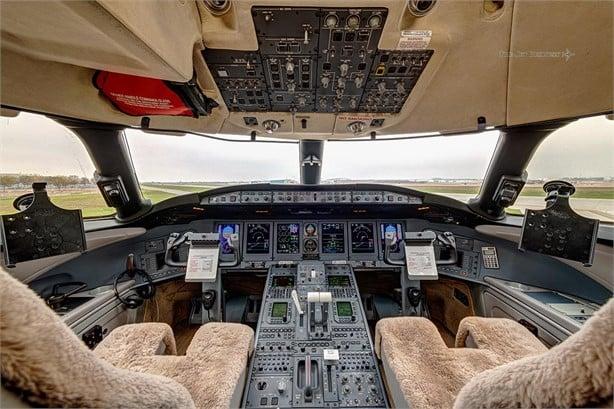

- EFIS (Electronic Flight Instrument System) / 6-Tube / Honeywell Primus Elite DU-875 LCD Displays
- FMS (Flight Management System) / Triple / Honeywell NZ-2000
- GPS (Global Positioning System) / Dual Honeywell / GP-550
- IRU (Inertial Reference Unit) / Triple / Honeywell Laseref IV
- MADC (Micro Air Data Computer) / Triple / Honeywell AZ-840
- NAV (Navigation Radio) / Dual / Honeywell RNZ-851
- DME (Distance Measuring Equipment) / Dual / Honeywell RM-855
- EICAS (Engine Indication and Crew Alerting System) / Single / Honeywell
- ADF (Automatic Direction Finder) / Dual / Honeywell AT-860
- RMU (Radio Management Units) / Dual / Honeywell RM-855
- HUD (Heads Up Display) / Single / Thales
- VHF COM (Very High Freq. Communication) / Triple / Honeywell RCZ-833 w/8.33 KHz spacing
- HF COM (High Freq. Communications) / Dual / Rockwell Collins HF-9031A
- SELCAL (Selective Calling System) / Single / Coltech CSD-714
- SATCOM (Satellite Communications) / Single / Honeywell MCS-6000
- RADAR (Radio Detection and Ranging) / Single / Primus 880 Color WX Radar
- RADAR ALT (Radar Altimeter) / Dual / Rockwell Collins ALT-4000
- XPNDR (Transponder) / Dual / Honeywell RM-855 Mode S
- EGPWS (Enhanced Ground Proximity Warning System) / Single / Honeywell Mark V
- TCAS (Traffic Collision Avoidance System) / Single / Honeywell RT-950 Change 7.1
- CVR (Cockpit Voice Recorder) / Single / Honeywell Solid State CVR
- FDR (Flight Data Recorder) / Single / Honeywell Solid State FDR

NAVIGATION & COMPLIANCE:

- RVSM
- ADS-B Out
- Batch 3 Avionics
- FANS-1/A+
- WAAS / LPV
- MNPS
- RNP 1/5/10
- CPDLC
- RNP 4

2015
Base Paint Colour(s): Matterhorn White
Stripe Colour(s): Red and Blue

Number of Passengers: Thirteen (13)
Galley Location: Forward

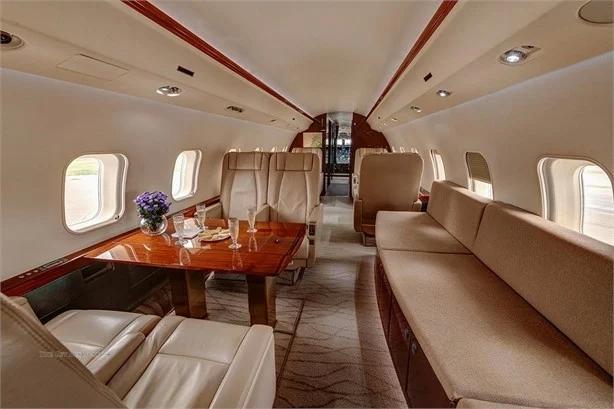

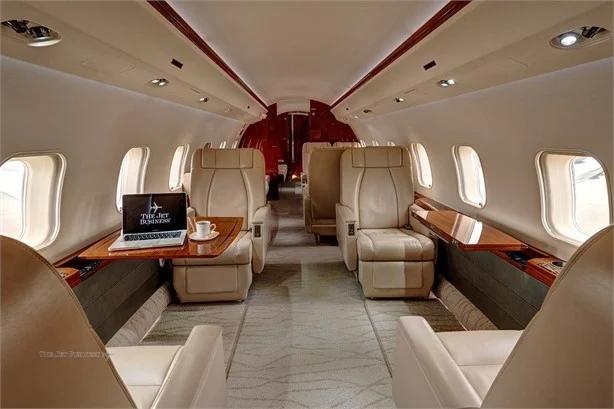

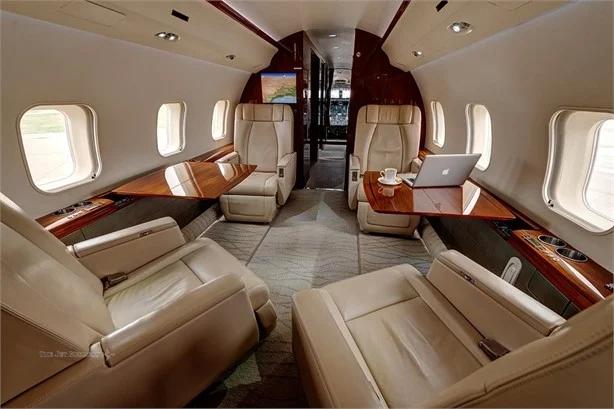

Fwd Cabin Configuration: Four (4) Place Executive Club
Mid Cabin Configuration: Four (4) Place Conference Group Opposite a Credenza

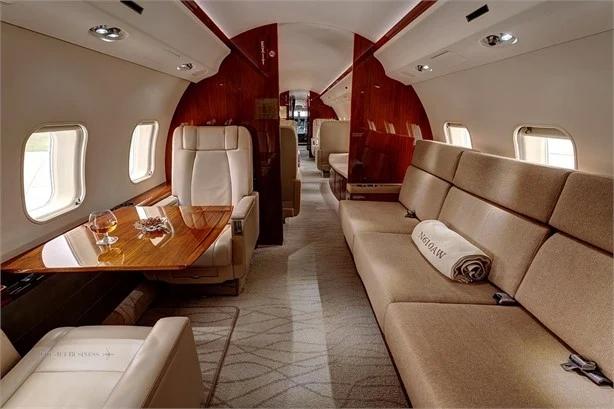

Aft Cabin Configuration: Two (2) Place Club Opposite a Three (3) Place Divan

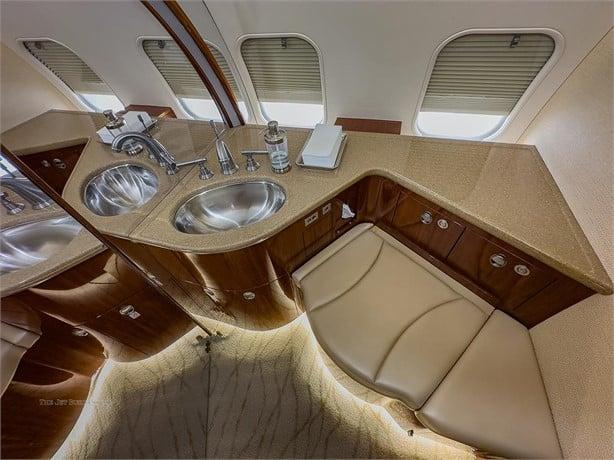

Lavatory Location(s): Forward and Aft

Crew Rest: Forward

Jumpseat: Equipped

Other Features: New Carpet, Global 6000 Pilot Seats, Refurnished Veneer in 2015, Cabin Seat Leather Replaced 2011, Electric Lumbar

Galley Equipment: TIA Microwave Oven, High Temp Oven, Espresso Coffee Maker, Air Chiller, Ice Drawer

- ELT (Emergency Locator Transmitter): Artex 406 ELT
- FMS Data Loader: Honeywell DL-900
- Lighting Sensor System: Honeywell LSZ-860
- External Camera System: Securaplane System
- Operations at Airports with Maximum Weight Restrictions: SB 700-11-018
- Increased MTOW to 98,000 lbs: SB 700-11-016
- Crew Force Measuring System: SB 700-31-020

INSPECTION / LAST PERFORMED / NEXT DUE:

- 120 Month Check (8C) / February 2015 / February 2025
- 180 Month Check (12C) / February 2020 / February 2035
