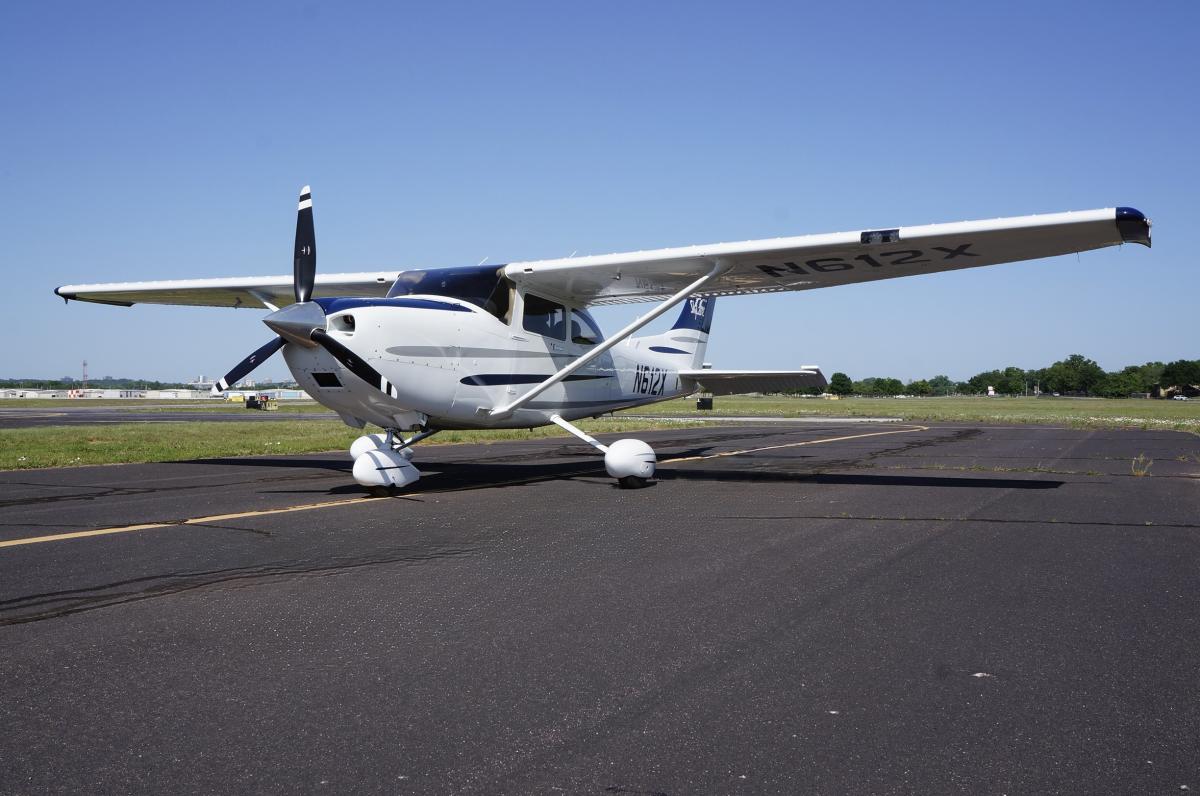

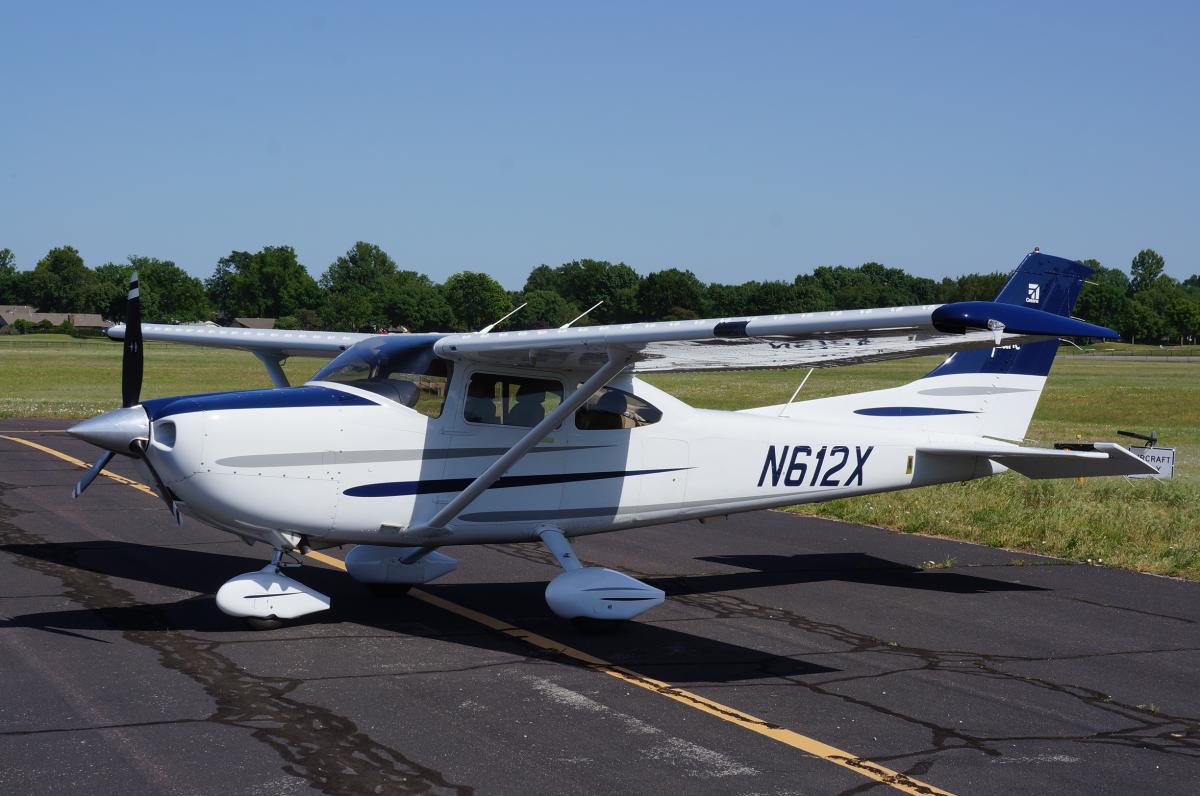

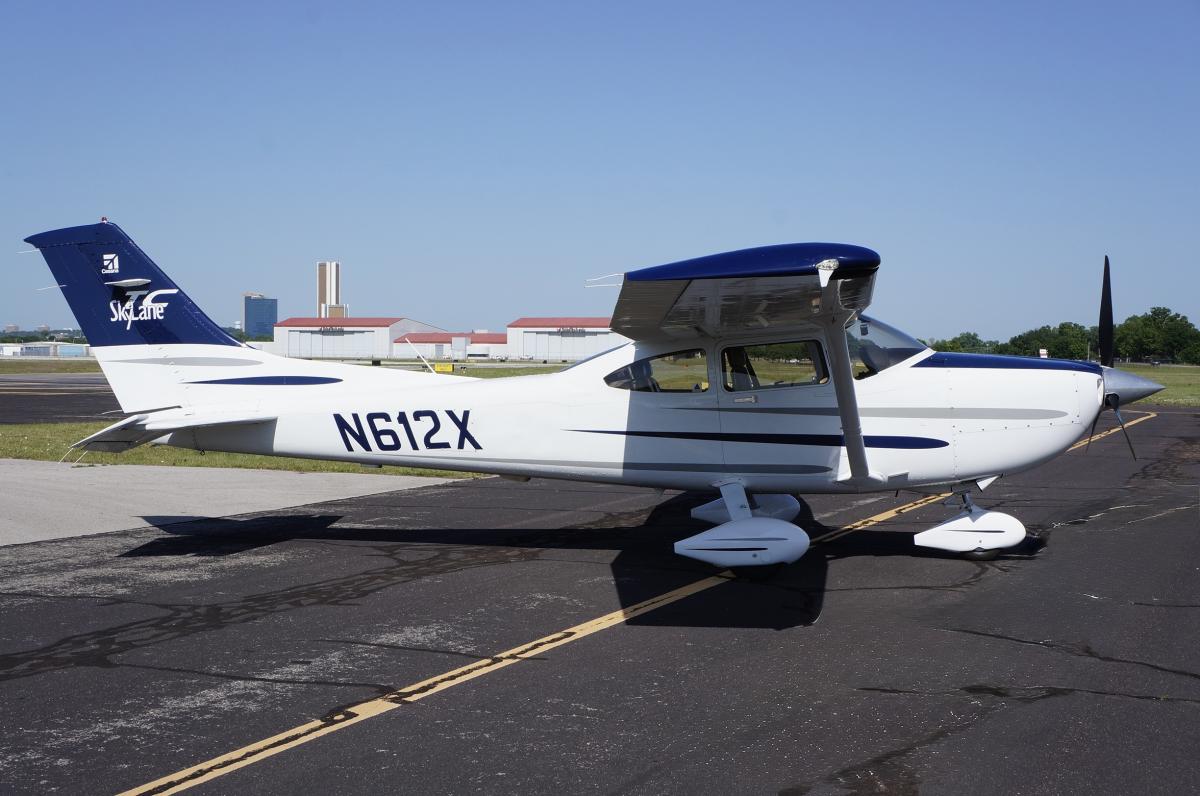

AIRFRAME:

2,000 Hrs Total Time Since NEW
Always U.S. Register
All Log Since NEW

ENGINE:
860 Hrs Since Factory Rebuilt by Lycoming Engines

Performed Compression test as follows (09/19/2025)  #1: 77/80, #2: 7/880, #3: 78/80, #4:
74/80, #5: 78/80, #6: 78/8

Installed factory rebuilt Lycoming TIO-540-AK1A S/N RL-7597-61A Total Time: 0.0
hours at Total Time Airframe of 1,144
vacuum pump), -Installed new dry air pump (vacuum), Tempest AA3215CC S/N 08HH24 (upper
IAW Tempest installation manual, torqued attach nuts to
50"lbs.
vacuum pump), -Installed new dry air pump (vacuum), Tempest AA3216CW S/N 082P02 (lower
IAW Tempest installation manual, torqued attach nuts to
50"lbs.
-Installed new Propeller control cable McFarlane P/N 565-580-038, Lot 39851.
-Installed new Mixture control cable McFarlane P/N 565-548-042, Lot 39444.
-Installed new Throttle control cable McFarlane P/N 565-549-031, Lot 39621.
McFarlane PMA # PQ3732CE.
-Installed all new Lord mount assemblies P/N J9613-82 (qty. 3) and P/N j9613-66 (qty.
1)(lower pilots side). Installed lower left engine mount with originally
installed heat shields.
-Installed new oil cooler from Pacific Oil Cooler Service inc. P/N 8001718, S/N
4946012.
-Installed all new hoses from Firewall forward, including:
-manifold pressure hose, AE3663161E0260
-Fuel to Engine hose, AE3663161G0174
-Oil cooler top hose, AE3663162J0230
-Oil cooler top hose, AE3663162J0174
-Fuel return hose, AE3663163E0320 (above five hoses included in hose kit
AQK182-028 supplied by Airpower Inc.)
-Airwolf remote mount filter hose: p/n 13000208-0194s
-Airwolf remote mount filter hose: p/n 13000208-0170s
-all new silicone drain lines for air/oil separator
-all new fuel and oil drain hoses.
-all new Mil-H-6000 hoses for Vacuum system (forward of firewall)
-new drain hose for sniffle valve.
-Installed new o-ring on Propeller to Crankshaft connection p/n A1633-11.
-transferred Prop de-ice slip ring from old ring gear to new ring gear. Installed bolts
with loctite and torqued.
-installed new brush block assemblies for propeller de-ice, p/n's C-40522-1 and
C-40522-2
-Installed new Sky-Tec starter P/N 149-NL/ec, S/N FNE-121571, PMA # PQ0852SW,
Supplement # 7
-Installed new alternator belt P/N 390K4E lot

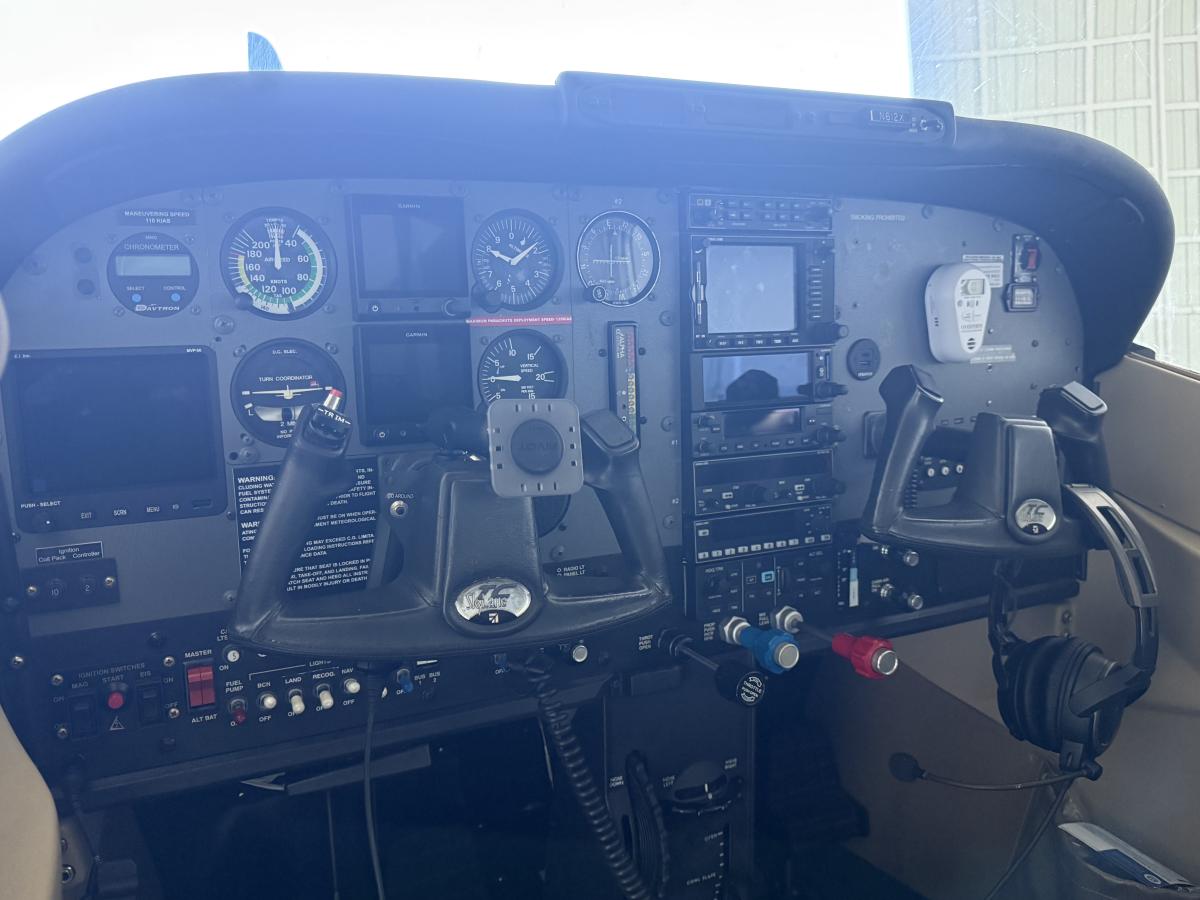

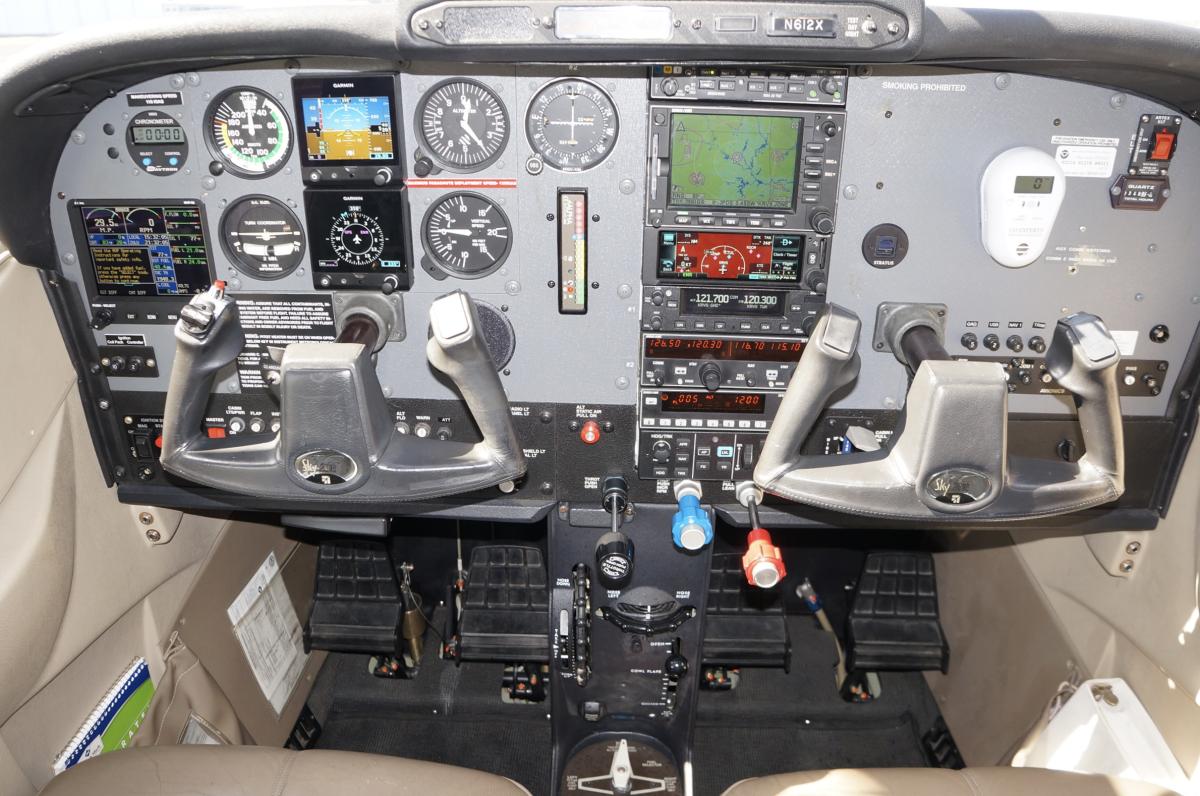

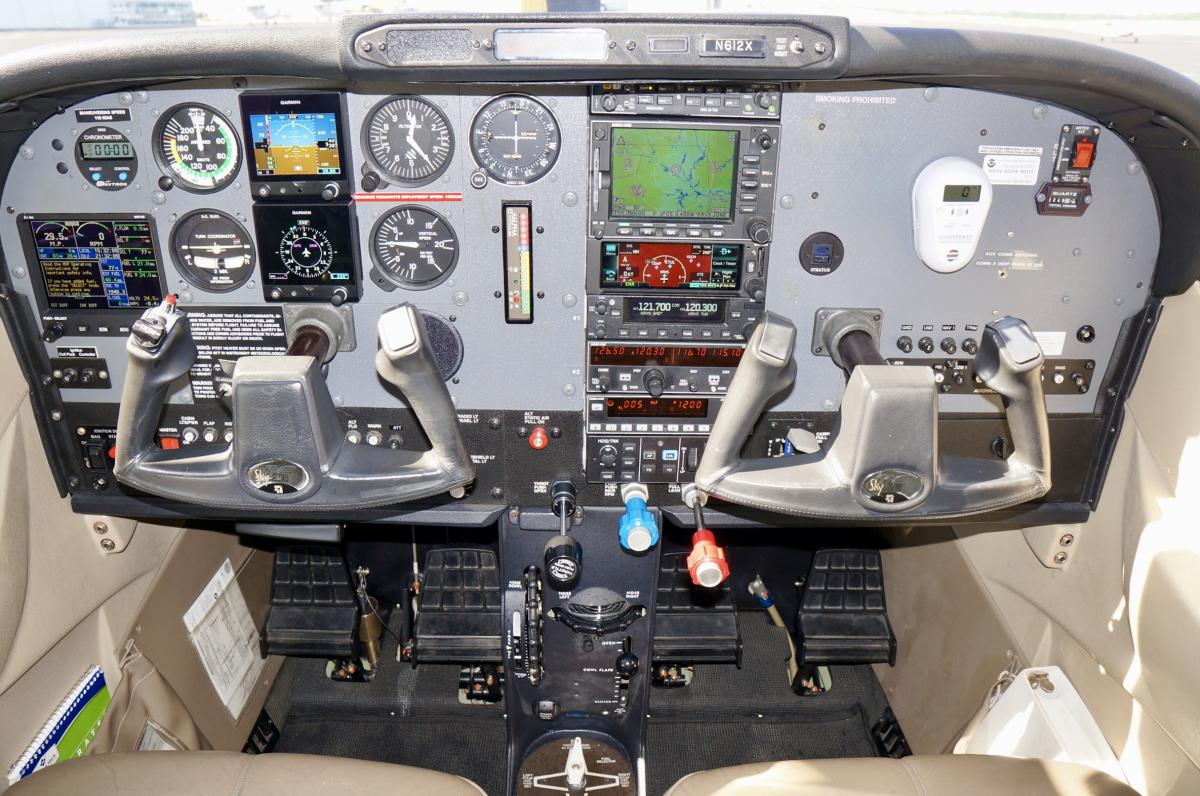

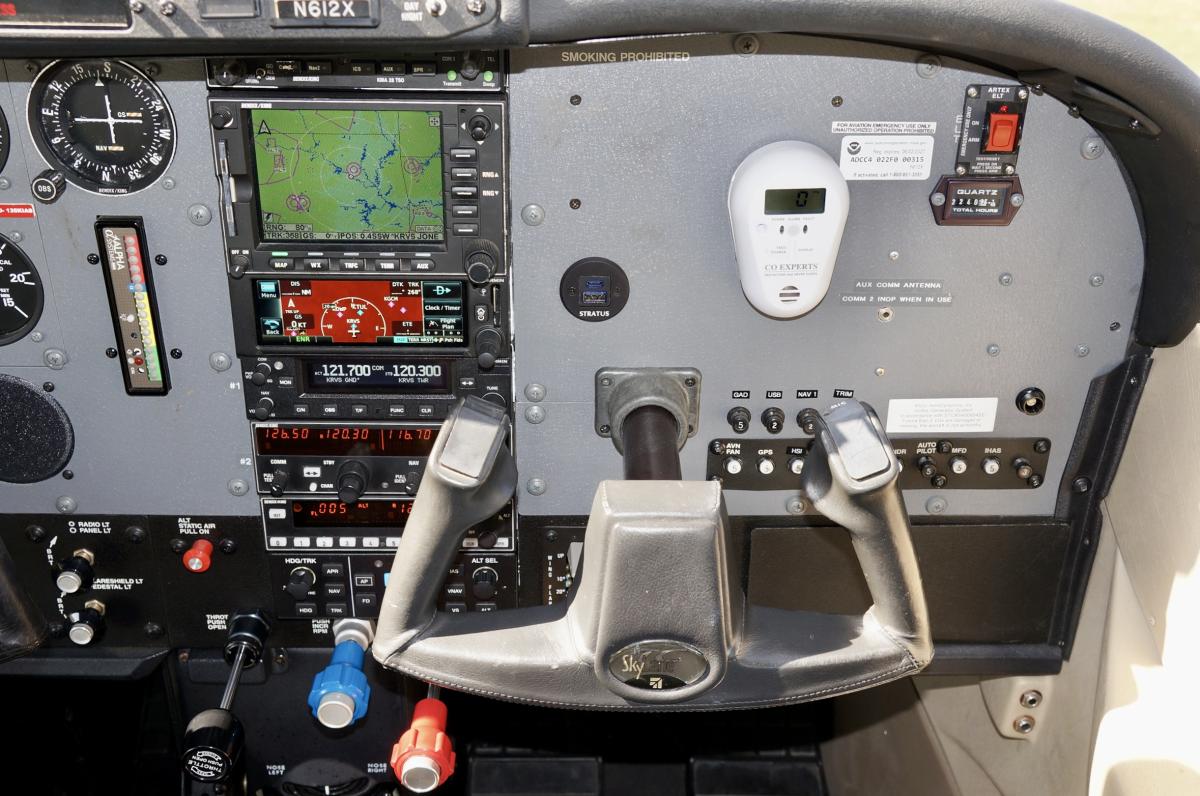

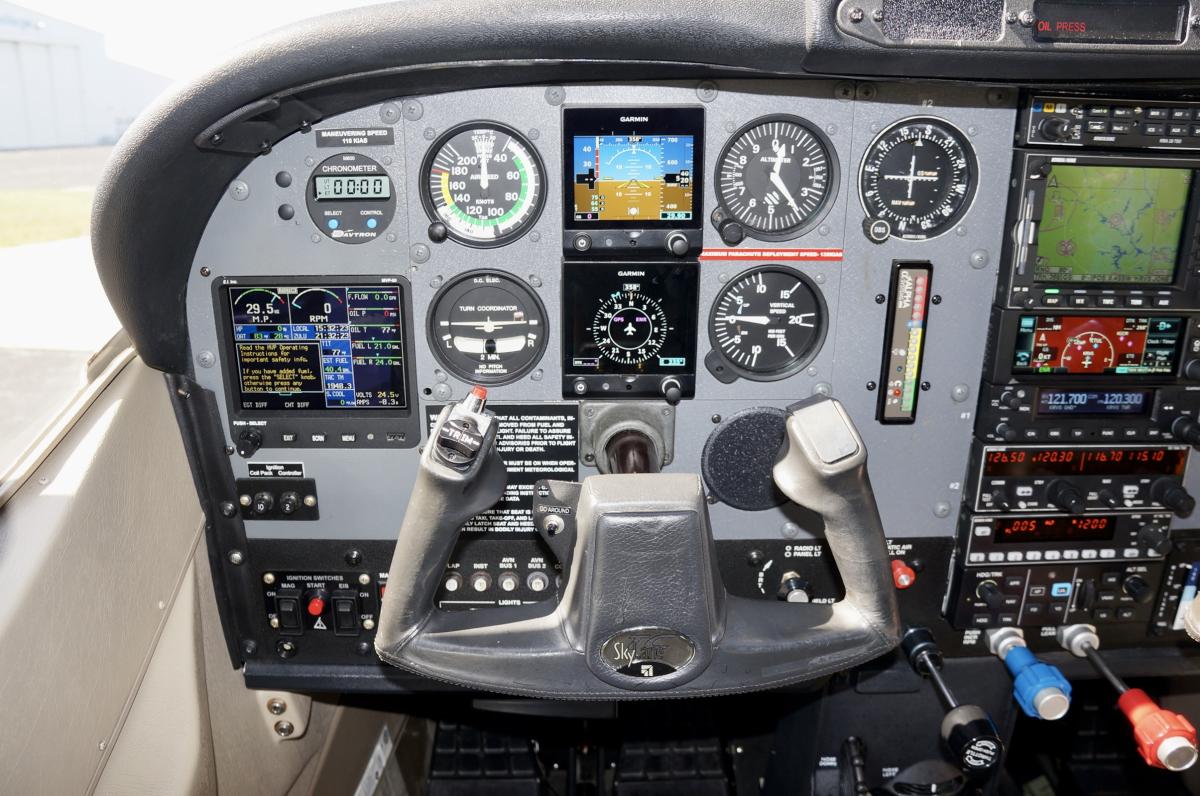

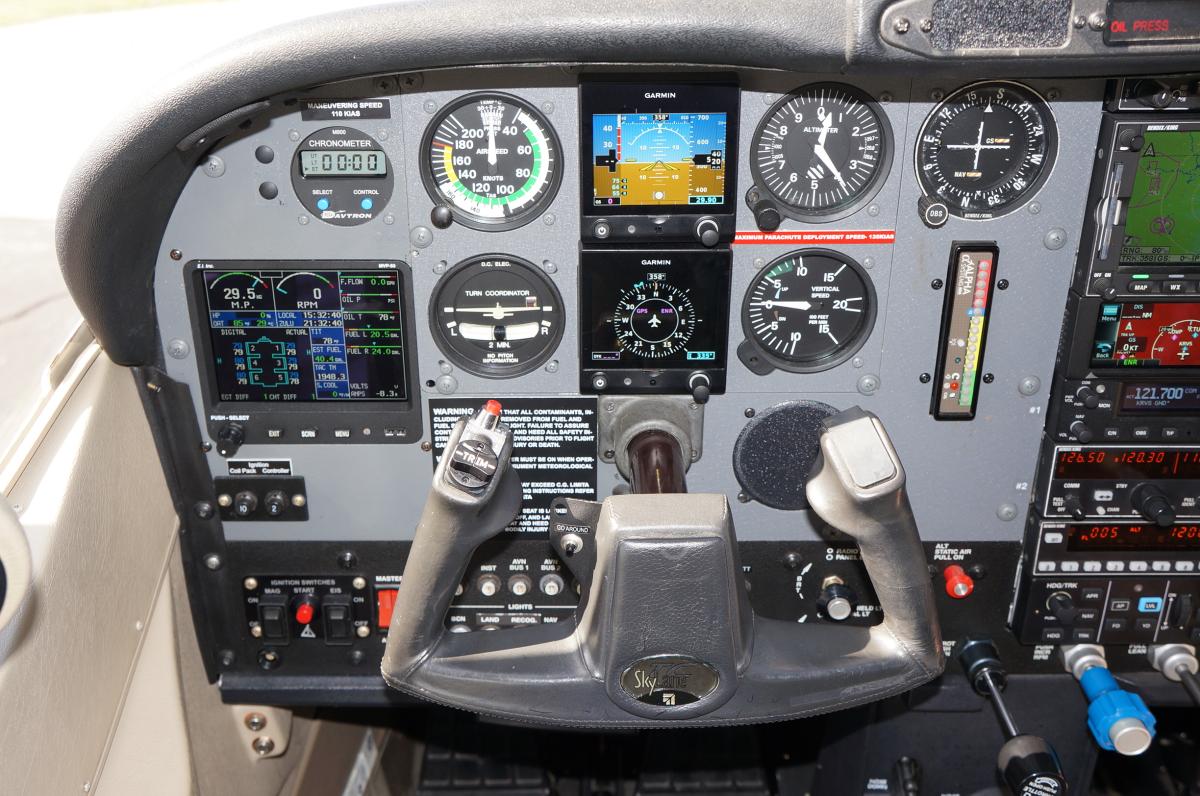

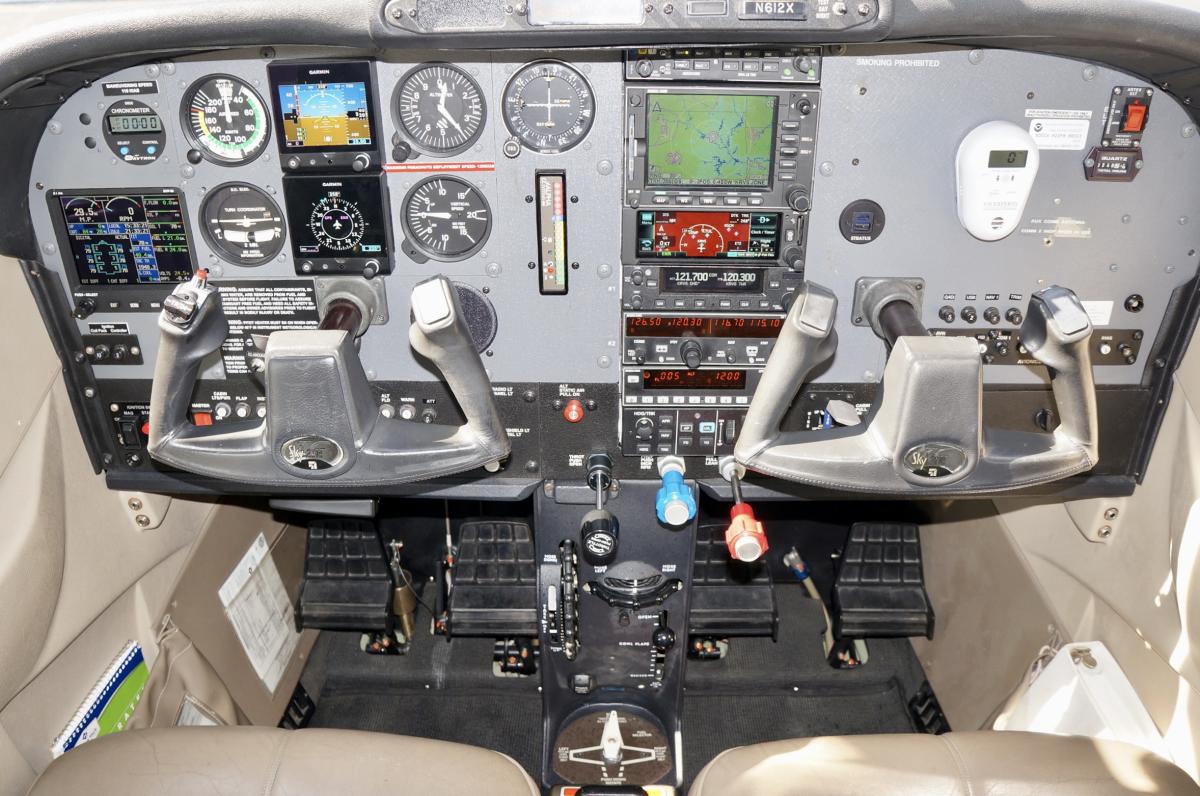

AVIONICS:
Dual Garmin G5                 Digital Primary Flight Instruments ( ADI & CDI)
Garmin GFC500                 Digital Autopilot w/ Stability Control
Garmin GPS 175                IFR Certified GPS
Garmin GNC 255A              Digital COM Radio
Bendix/King KDR-510         Multi Function Display w/ FIS Weather Data Link Receiver
uAvionics Wingtip               ADS-B Out
Electronics Int.  MVP-50     Engine monitor
Alpha Systems                   Digital Angle of Attack Indicator

ADDITIONAL EQUIPMENT:

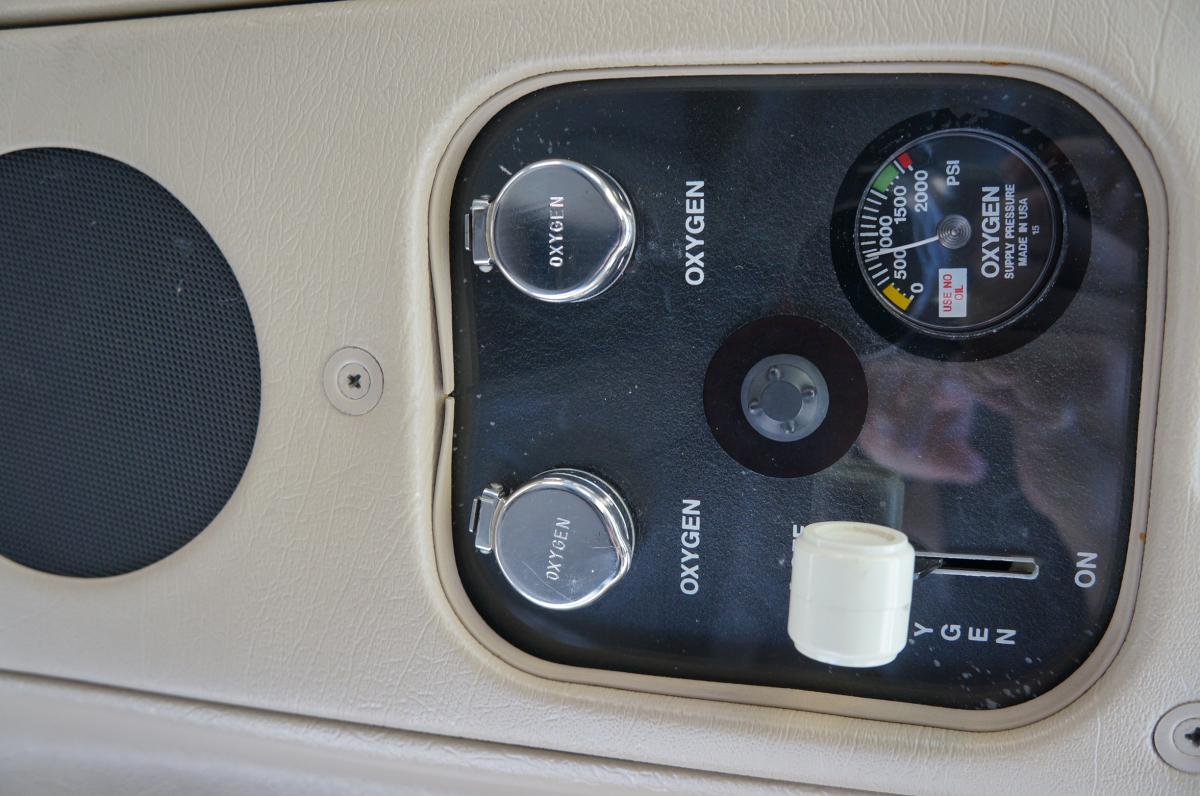

4 Place Factory Oxygen -New Tank in 2025

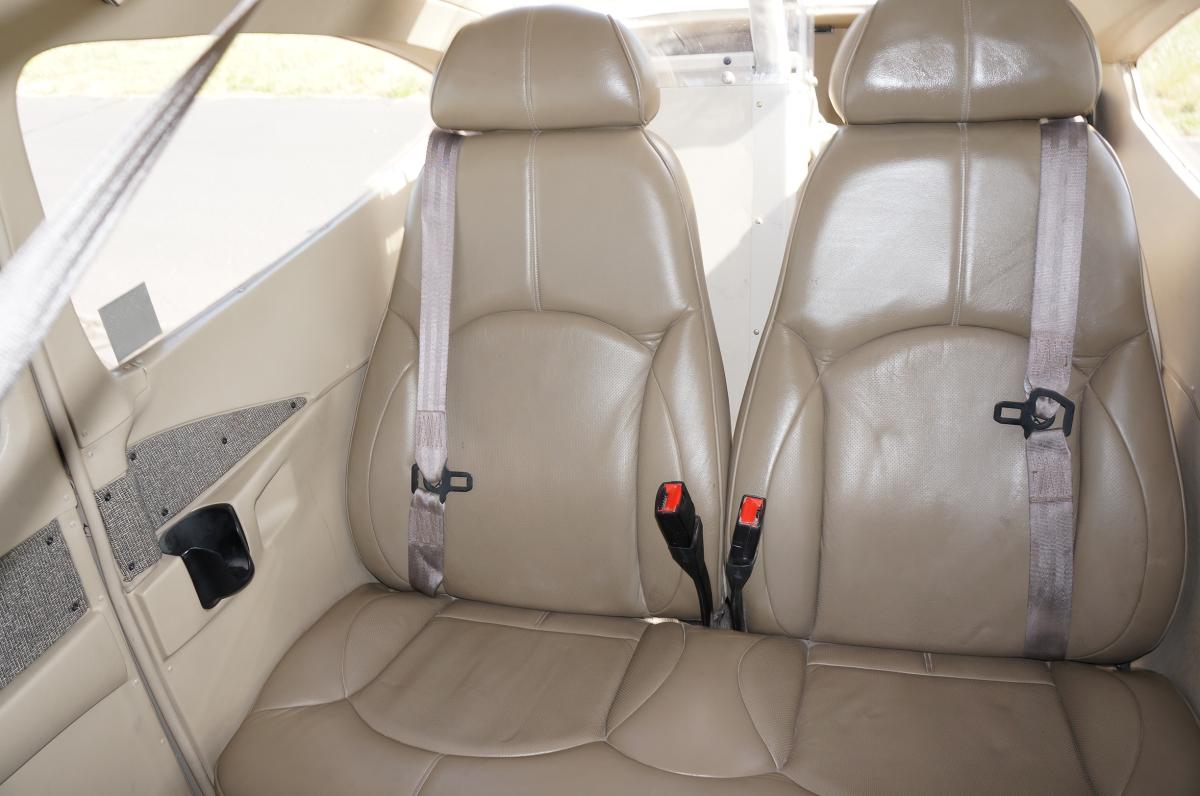

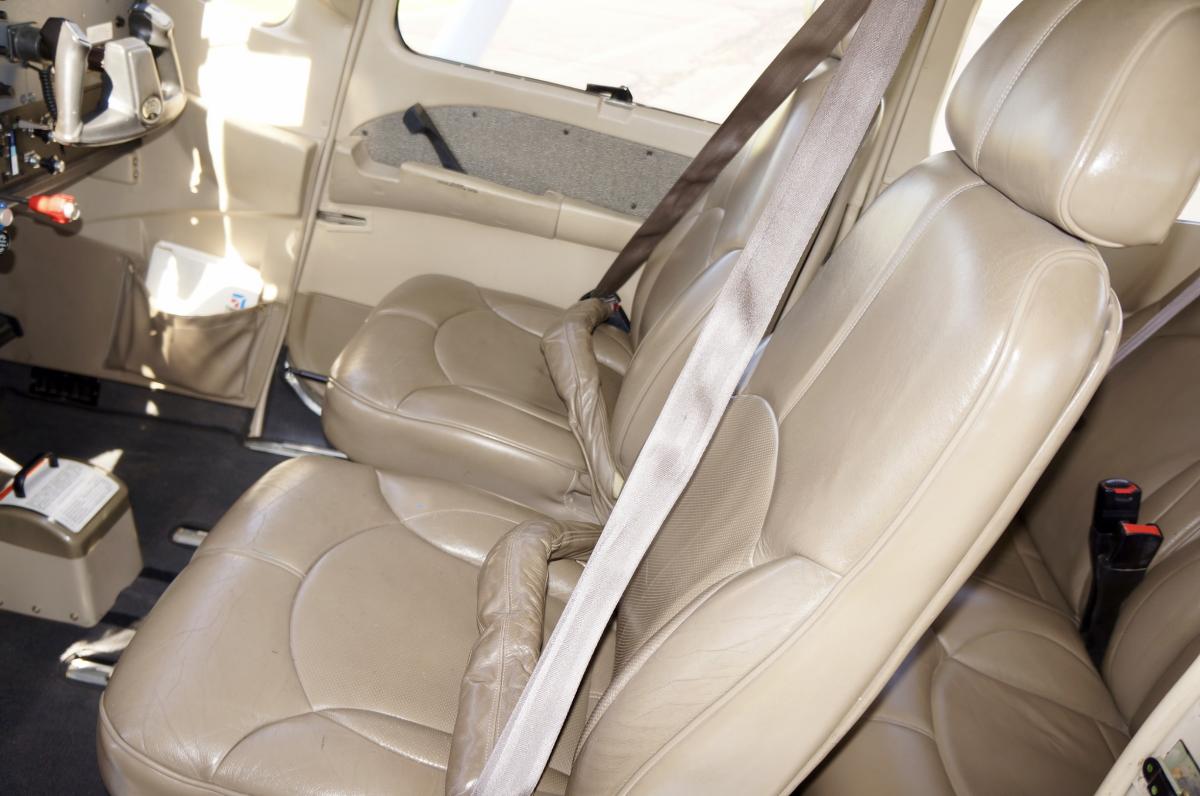

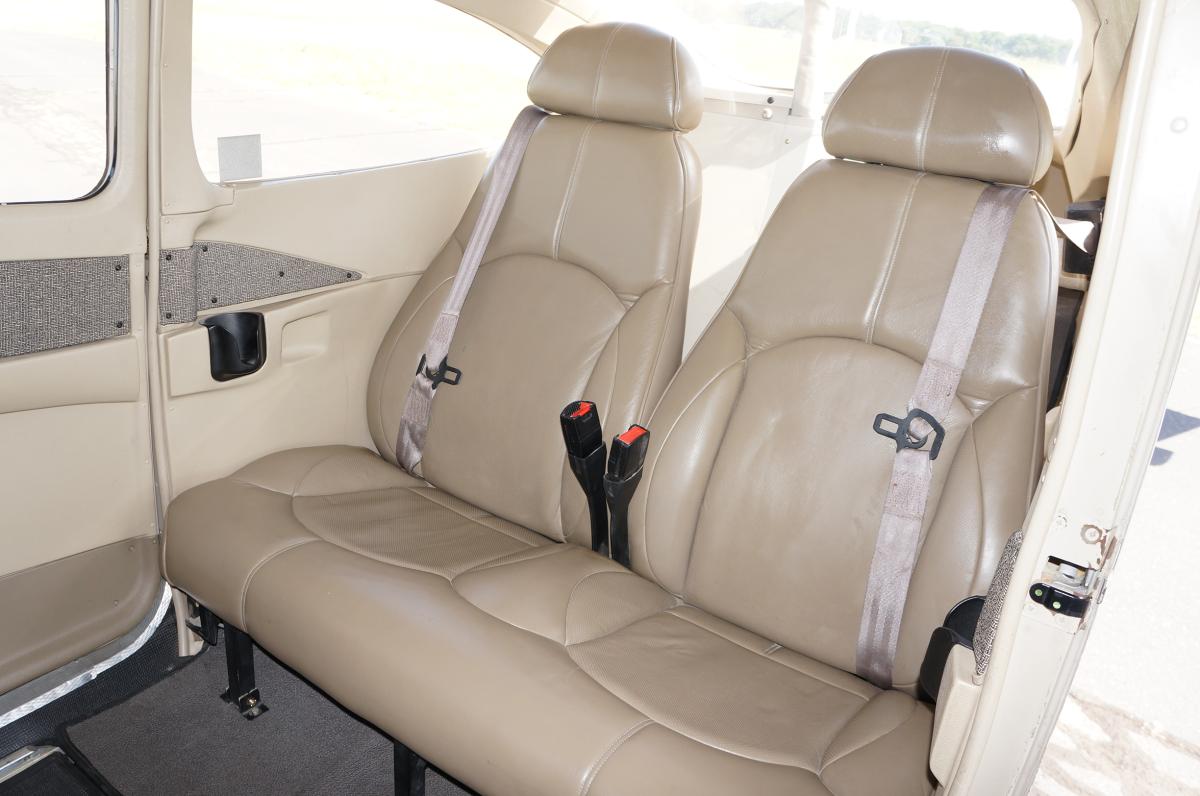

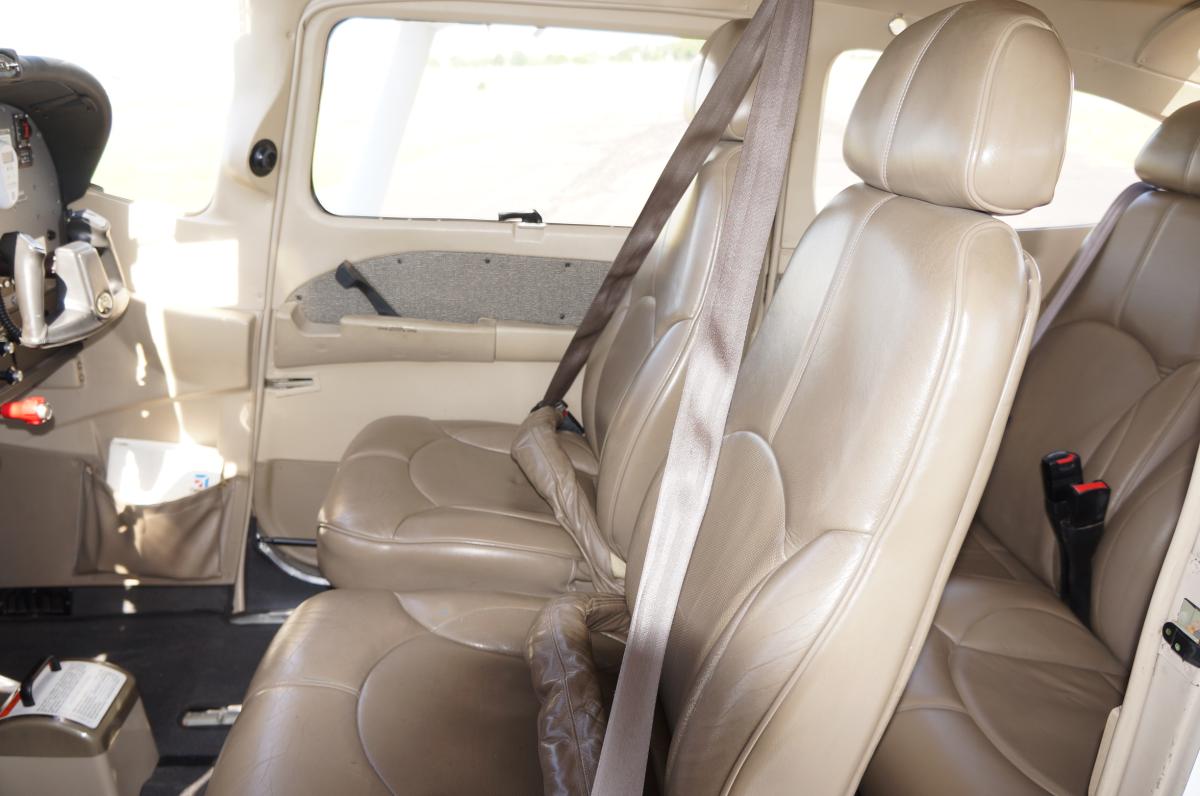

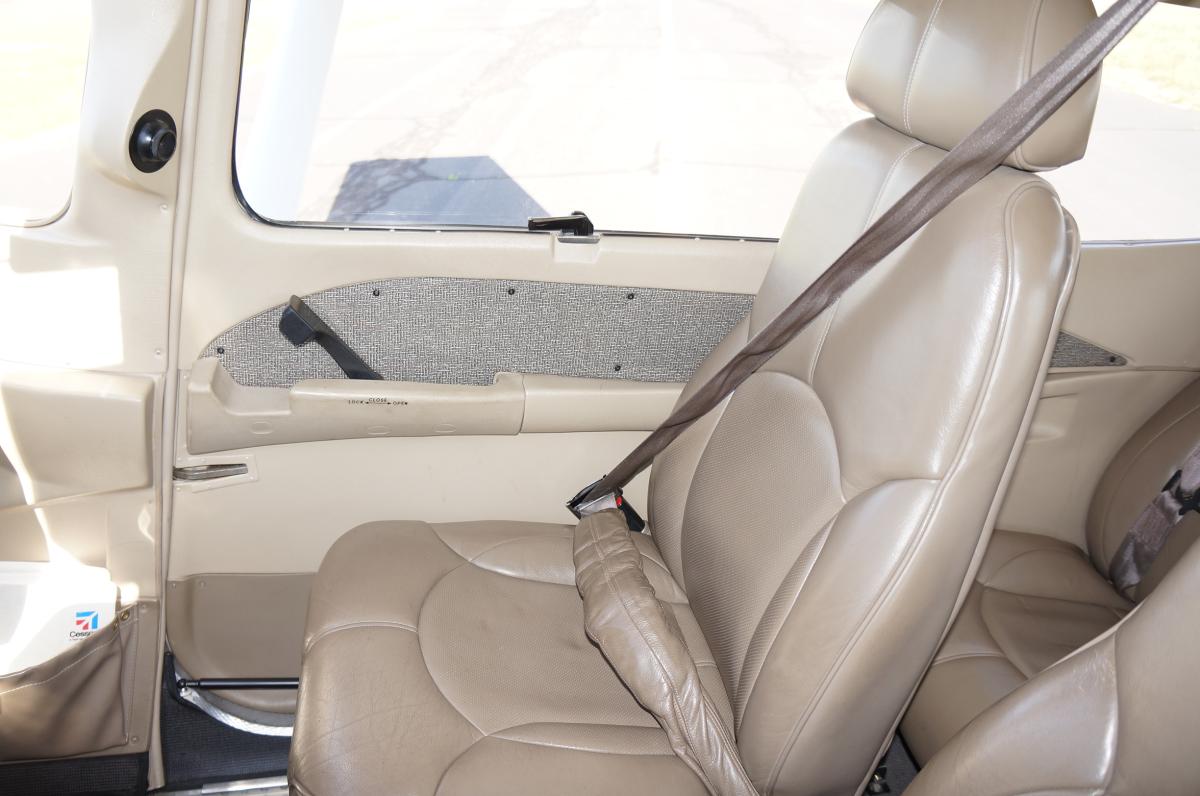

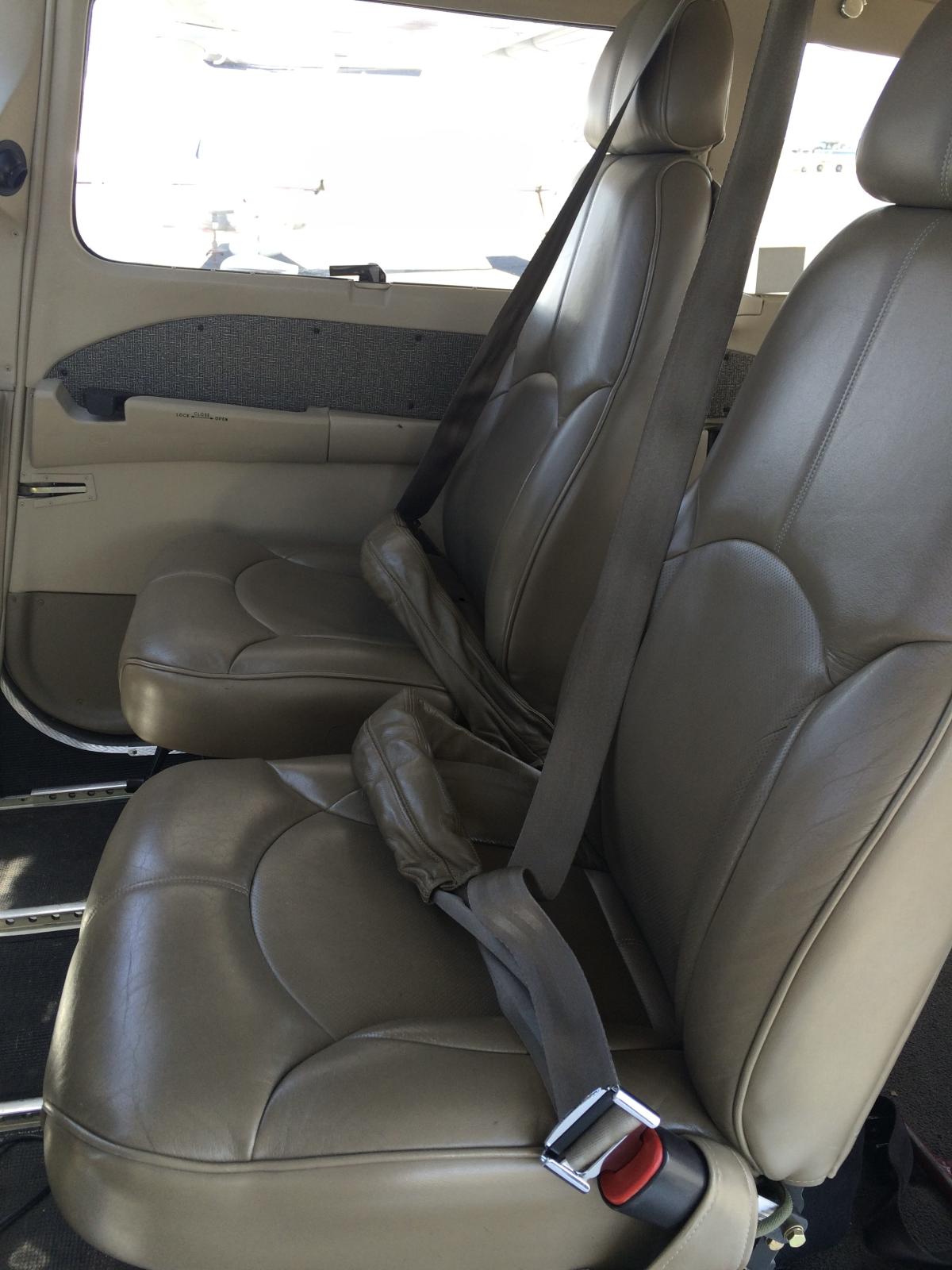

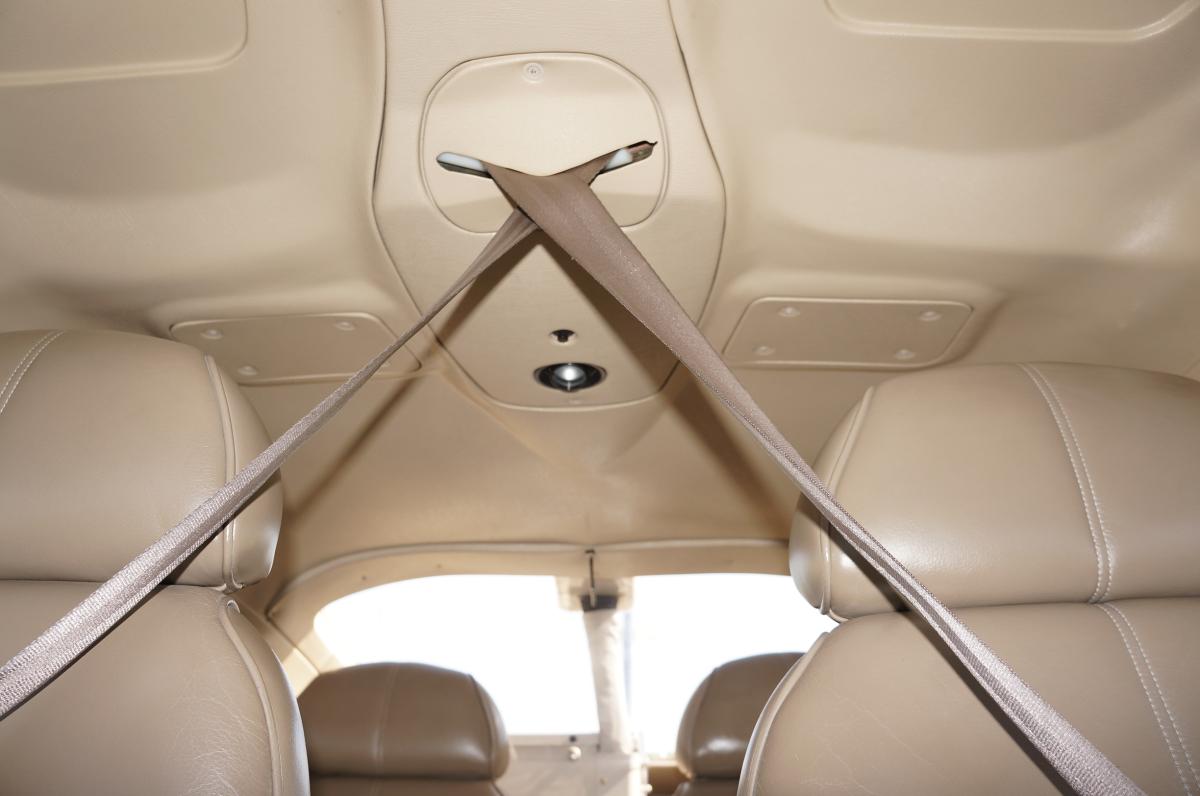

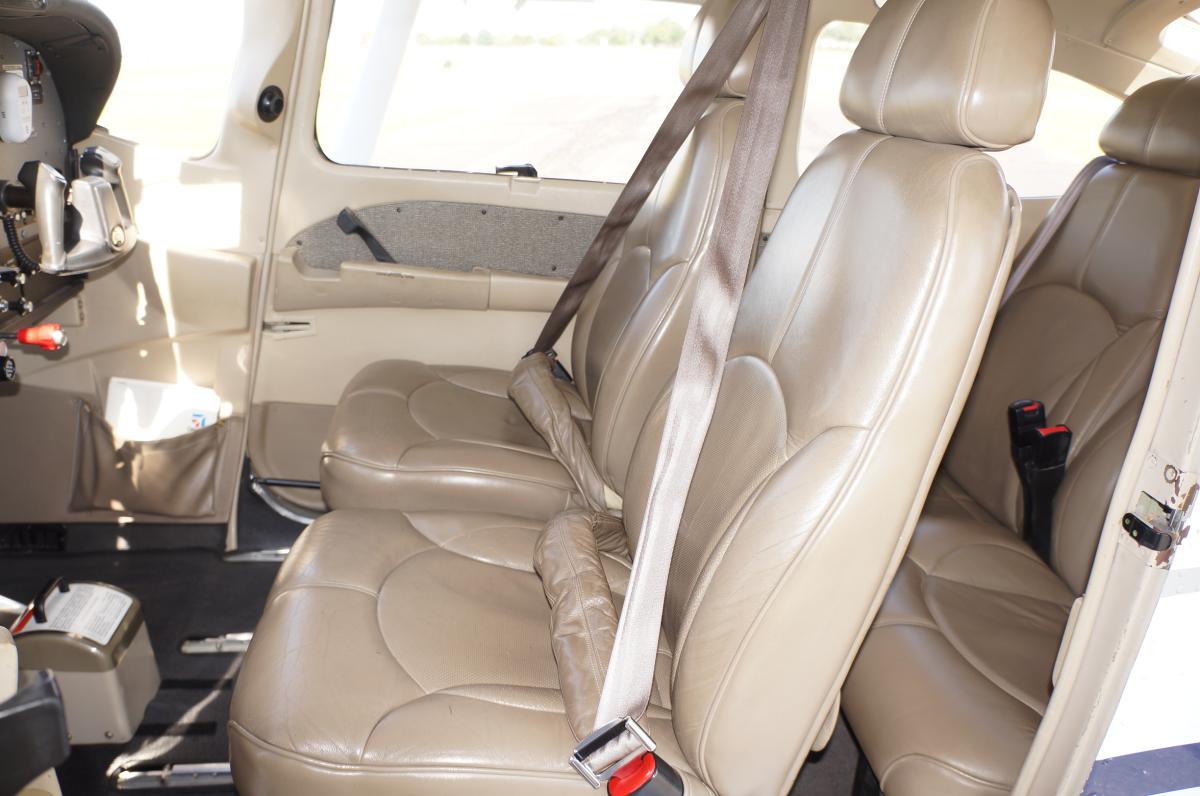

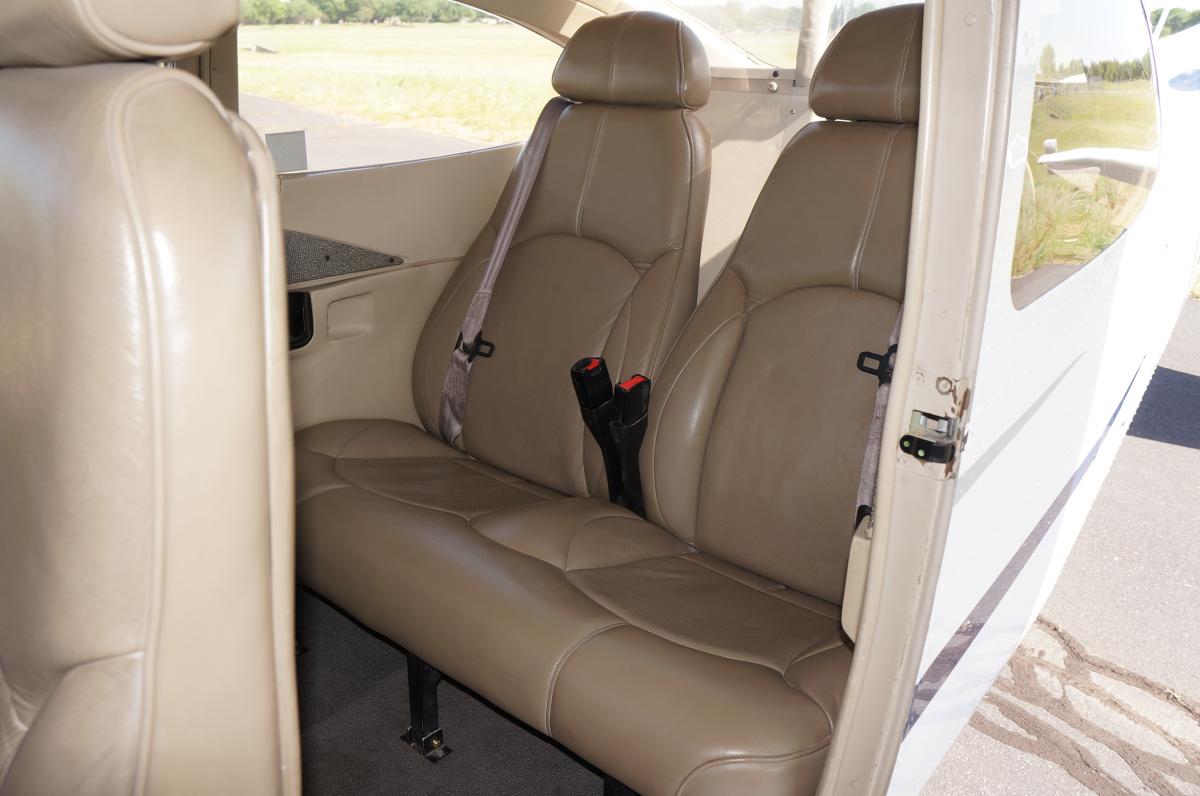

AmSafe Shoulder Harness w/ Airbags

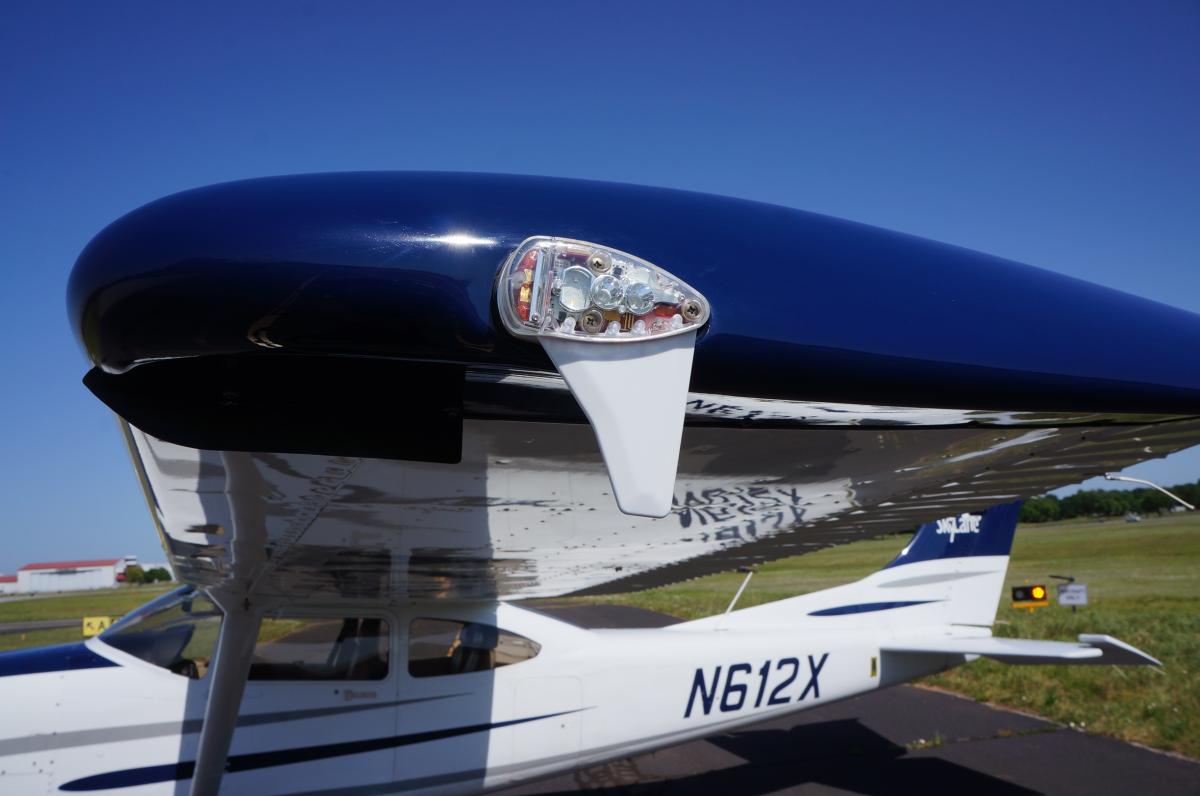

Stene Aviation Wingtip with LED NAV/Position Lights

INSPECTION STATUS:

Annual Due, September 1, 2026

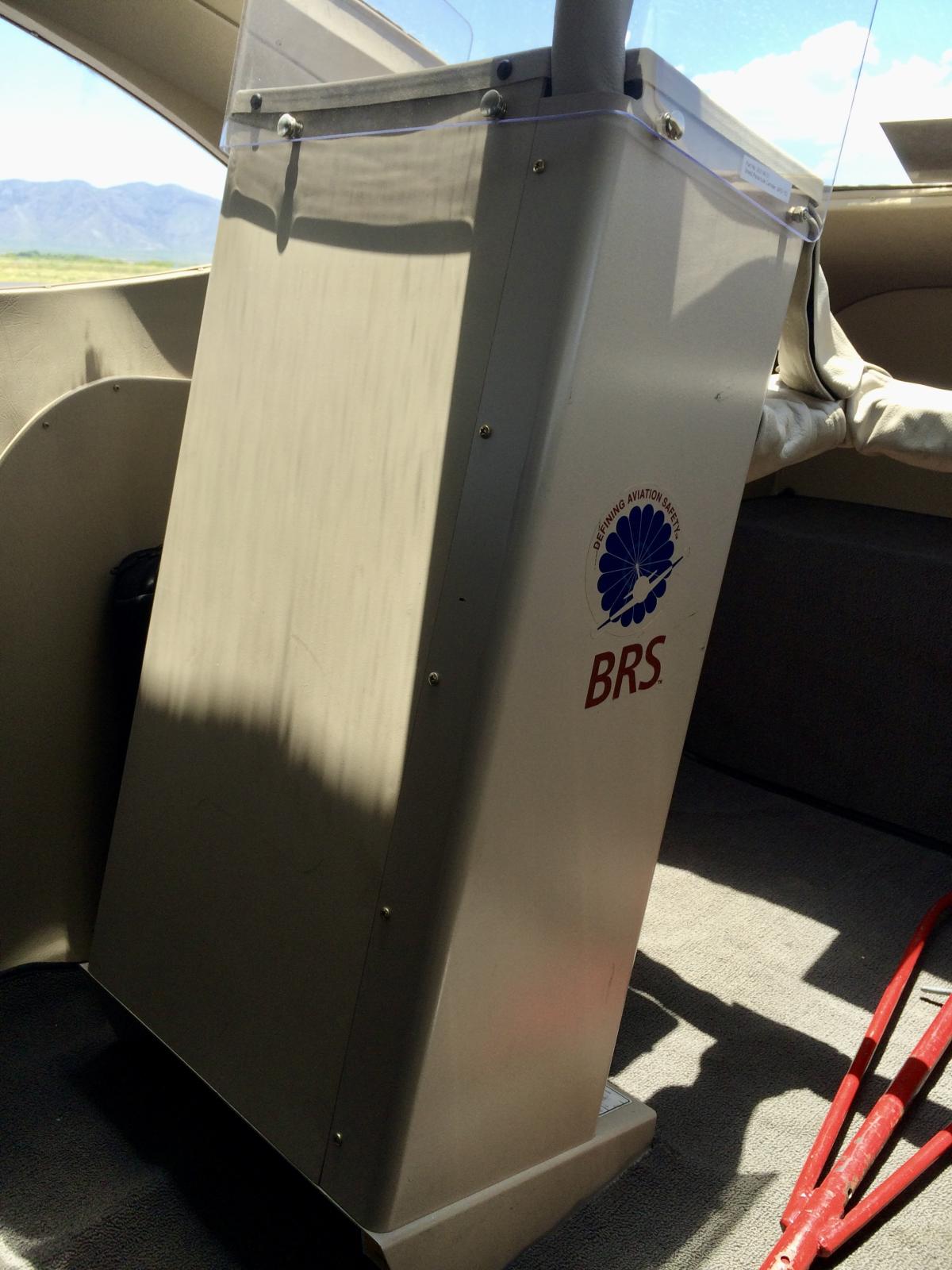

-Rocket and parachute Expire: 11/2032.
-Line cutter expires: 10/2027
AMSAFE Seat Belt Airbags due 01/2032.

new firewall in 2025 by Beegles. No prop strike involved. Damage was discovered during annual.

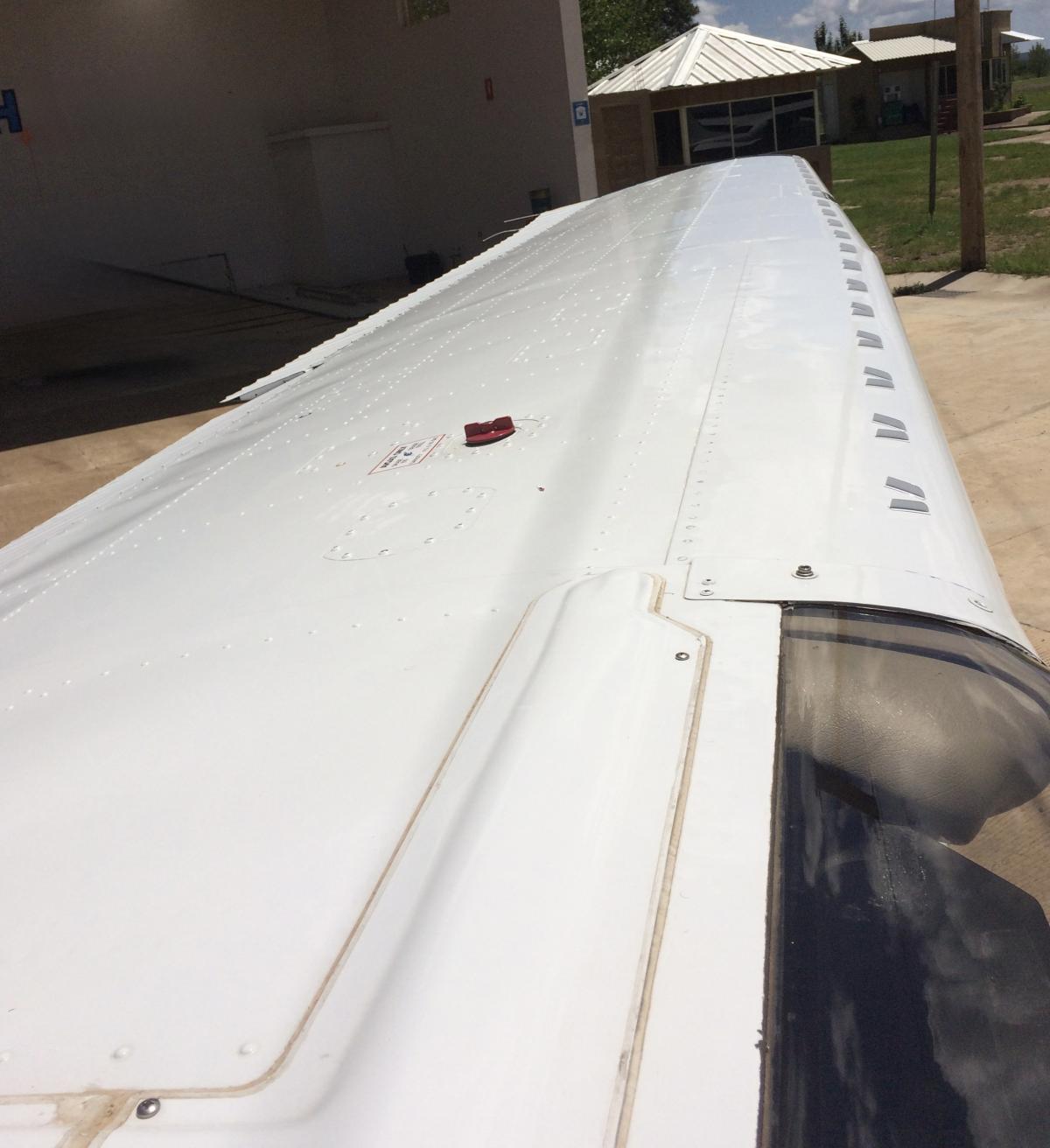

very small and minimal hail dings on elevator
