AIRFRAME:

3,883 Hours Total Time Since New

ENGINE:

ENGINE:
1,203 hrs since Major Overhaul with Factory New VAR Crankshaft by Signature Engines, Inc. of Cincinnati, OH FAA CRS # E5ZR316Y (March 28, 2001)
Less than 200 hours on Top Overhaul with Five Factory New Cylinders & One Overhauled Cylinder (July 2017)
Make: Continental  /  Model: TSIO-520-P  /  Serial #: 278583-R
310- Horsepower Engine with Heavy Crankcase & VAR Crankshaft (1,600-hour TBO)

PROPELLER:

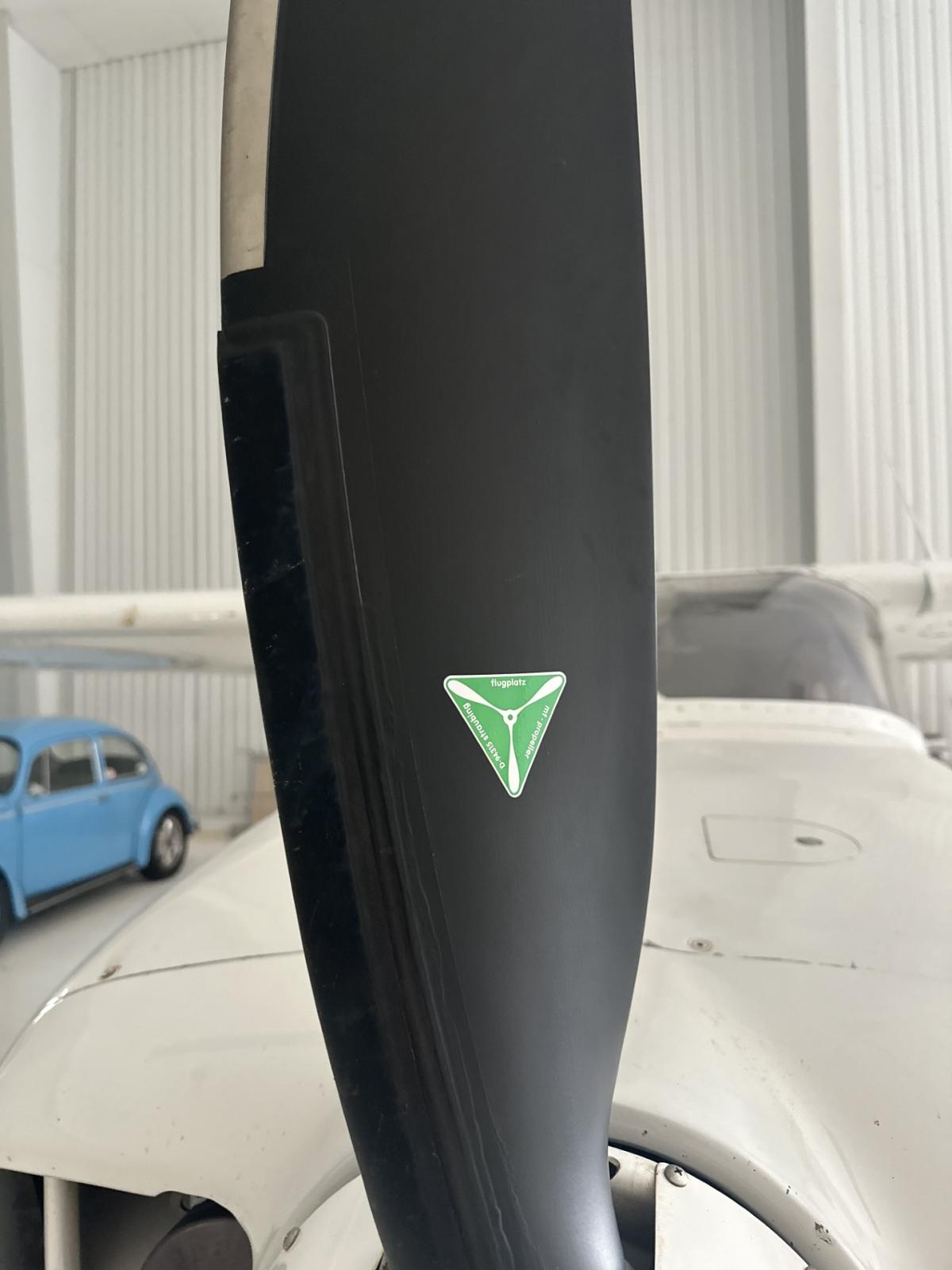

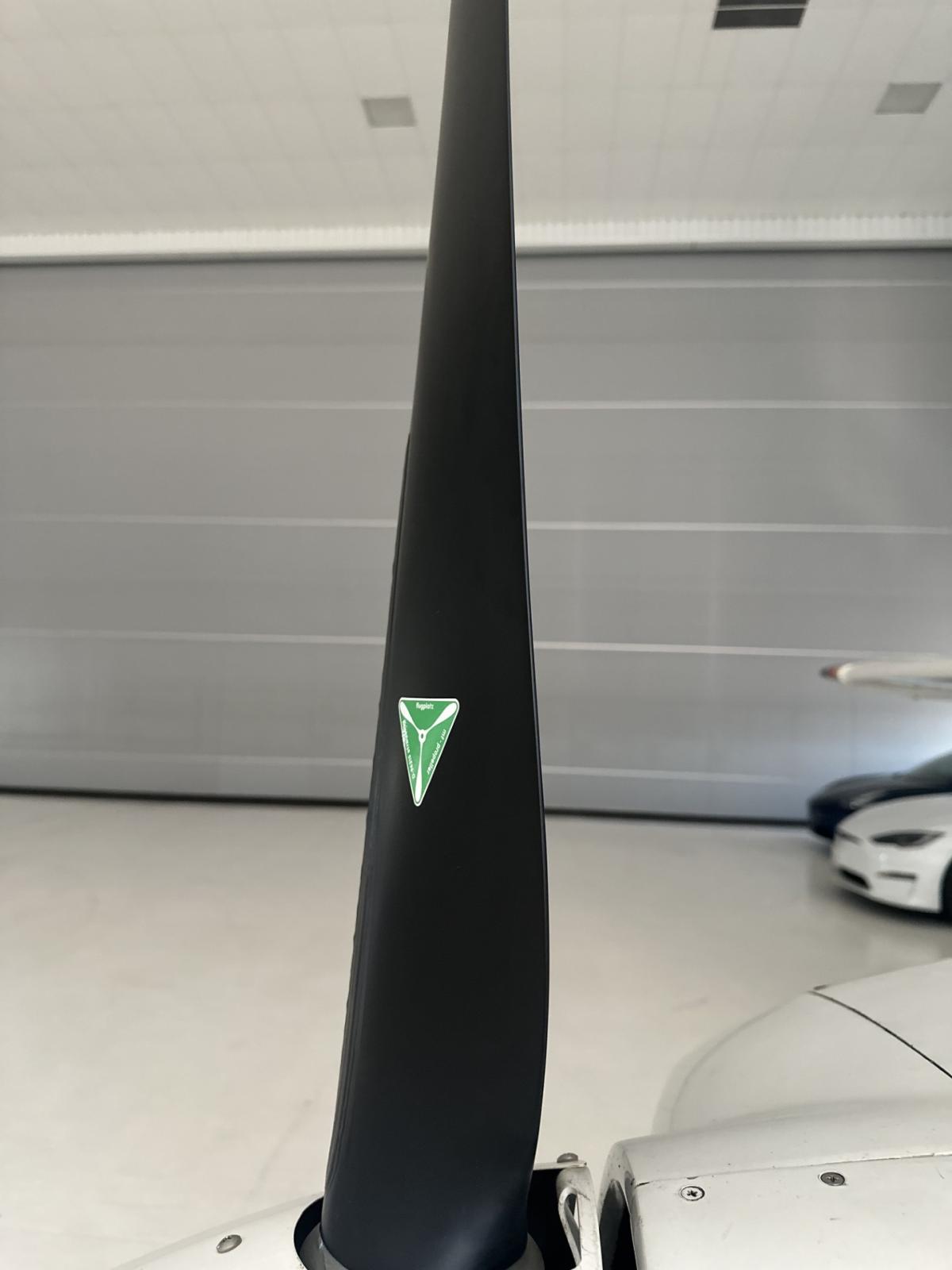

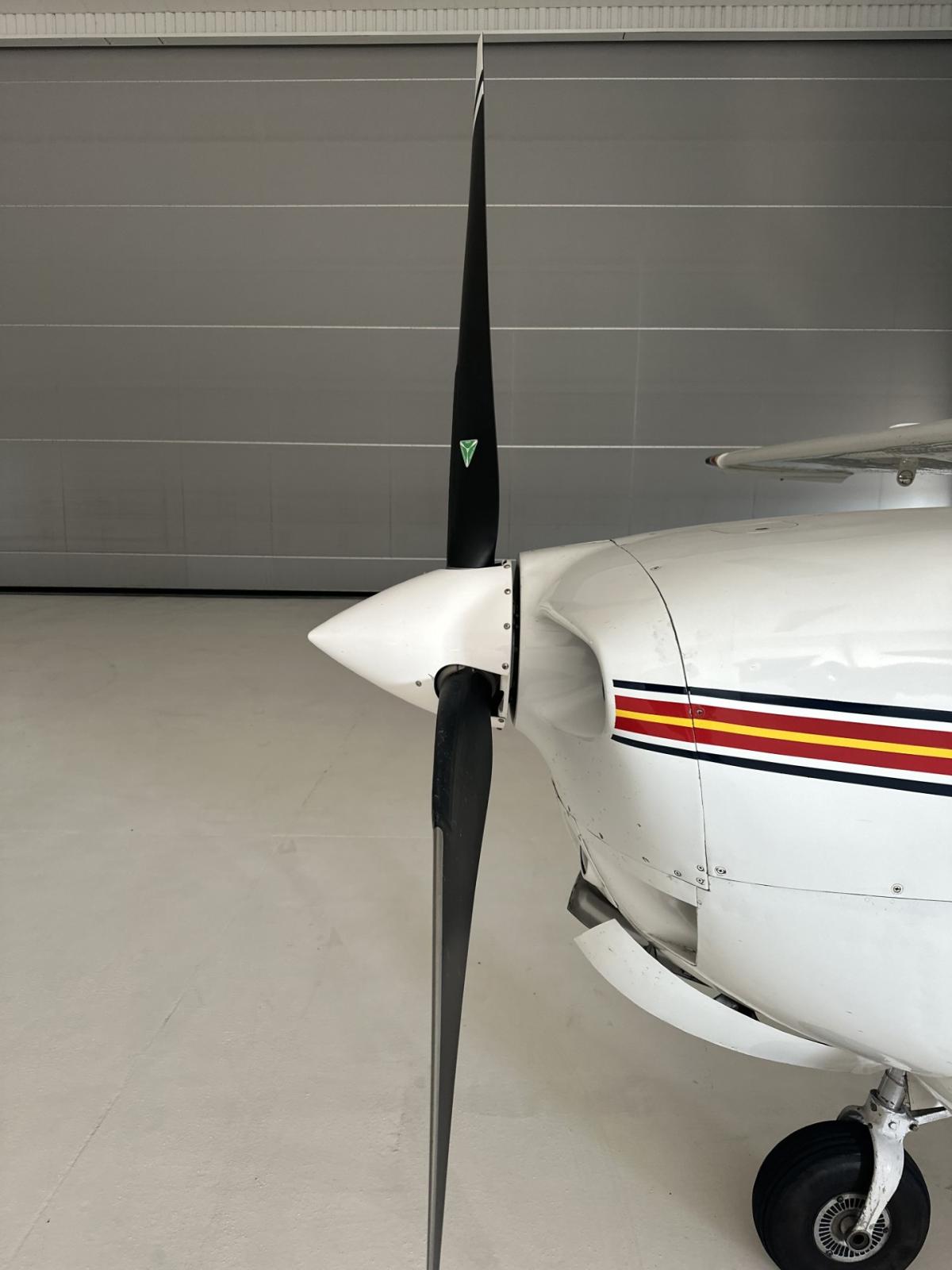

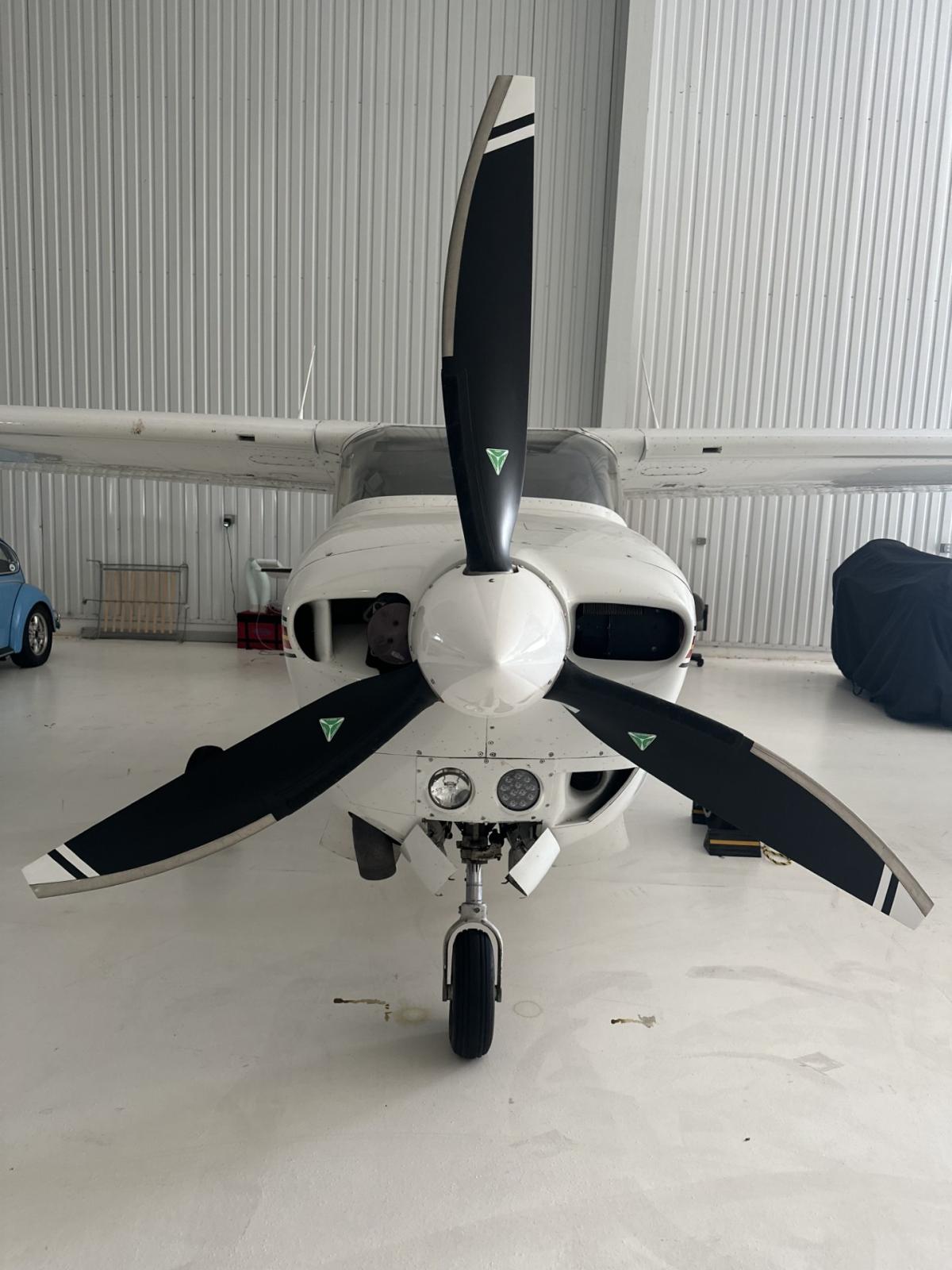

New MT Composite Propeller

MODS:
MT Composite Propreller
Flint Aero Tip Tanks - Fuel Capacity = 122 Gallons  (STC # SA4300WE)
O & N Aircraft Modifications Flight Control Balance Kit (STC # SA3753NM)
Precise Flight Speed Brakes (STC # SA2606NM)
TurboPlus Intercooler (STC # SA2390NM)
Horton 'STOL-Craft' Wing Leading Edge STOL Cuff with Wing Stall Fences
Barton/Monarch 'Umbrella style' Raised Fuel Caps (STC # SA2456CE)
Electric Standby Vacuum System
GAMI Fuel Injectors (STC # SE09289SE)
Bob Fields 'Aerocessories' Electric Pneumatic Cabin Door Seals (STC # SA2226NM)
RAPCO Vacuum Pump Cooling Shroud (STC # SA785GL)
M-20 Air-Oil Separator (STC # SA02033AT)

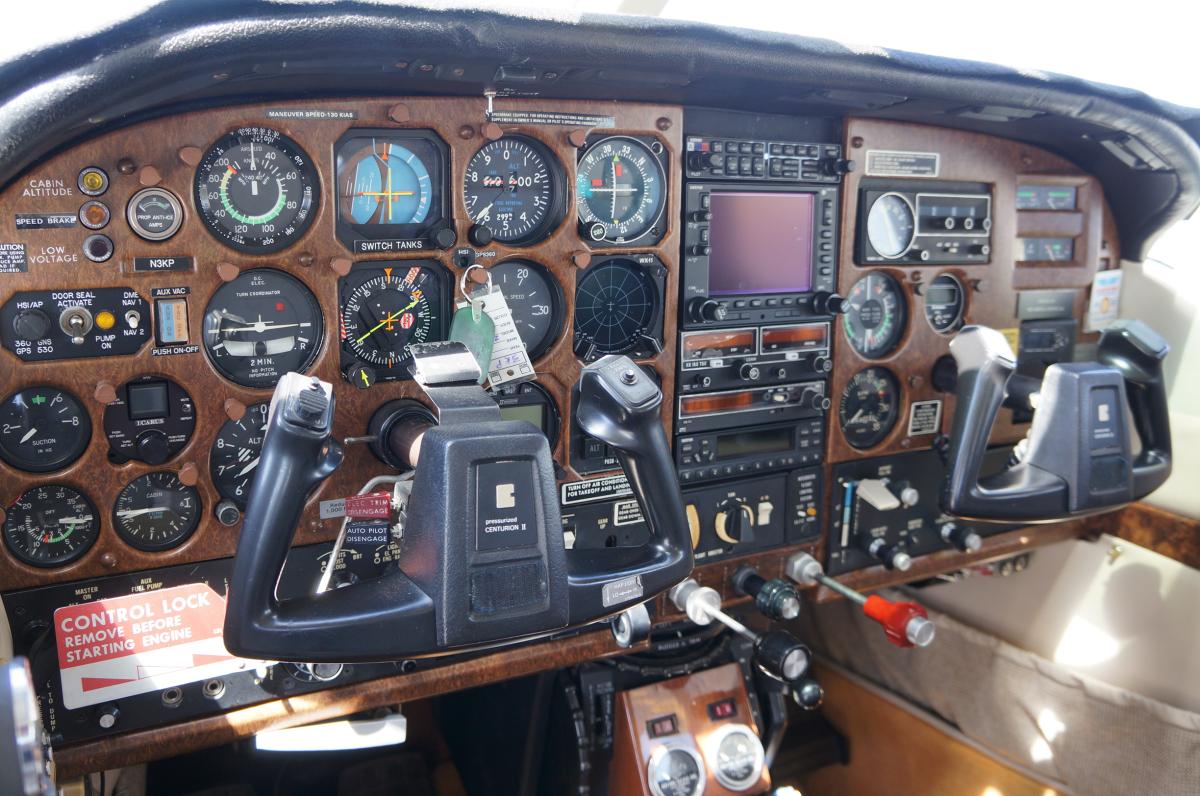

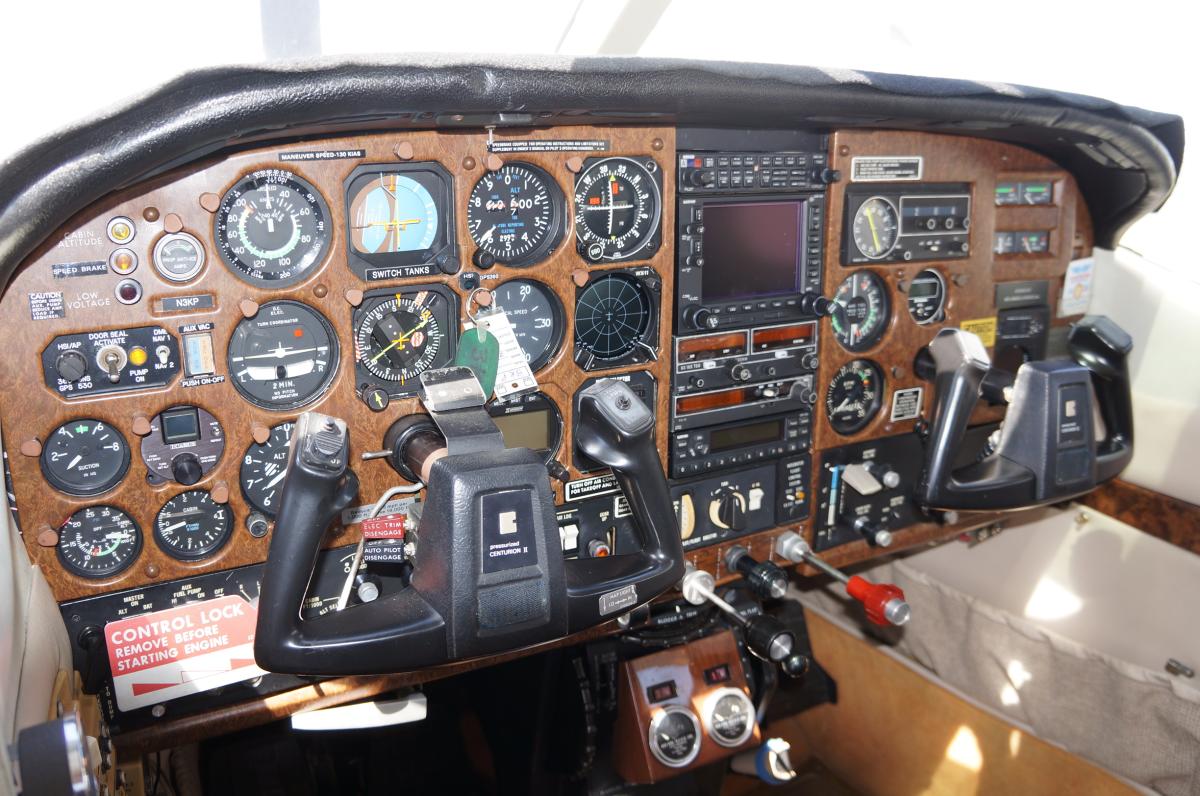

AVIONICS:
Garmin GMA-340 Stereo Audio Panel w/ 3-Light Marker Beacons & Voice-Activated 6-Place Intercom System with Isolation Modes
Garmin GNS-530W WAAS IFR-Certified GPS-Com w/ LPV, ILS, LOC, & VOR, Large Color Moving Map & Terrain Awareness (coupled to HSI)
Century IG-832A Slaved HSI
King KX-155 TSO Digital Nav-Com w/ VOR Localizer & 2nd Glideslope
WX-11 Stormscope
Apollo 360 VFR GPS #2
King KN-64 Digital DME channeled to both Nav #1 & Nav #2
King KR-86 ADF
Garmin GTX-330ES Digital Mode-S Transponder w/ ADS-B Out & Traffic Information Service (TIS)
Cessna 400 IFCS Autopilot w/ FD, Hdg & Nav/GPS Tracking, Pitch Mode, Approach Mode, Glideslope Coupling & Altitude Hold
ICARUS SAM GPS Remote 'Steering Assist Module' (GPSS Roll Steering) (STC # SA00243BO)

ADDITIONAL EQUIPMENT:
Factory Air-Conditioning
Flint Aero Tip Tanks - Fuel Capacity = 122 Gallons (STC # SA4300WE)
O & N Aircraft Modifications Flight Control Balance Kit (STC # SA3753NM) (Stiffening Ribs installed in Ailerons, Rudder & Elevators)
Factory Tail Reinforcement Kit (Cessna Service Kits SK210-125 & SK210-126 / Horizontal Stabilizer Bulkhead & Attach Bracket Strengthening Mod)
Precise Flight Speed Brakes (STC # SA2606NM)
TurboPlus Intercooler (STC # SA2390NM)
JPI EDM-700 Digital Graphic Engine Monitor w/ Digital EGT's, CHT's, & TIT (STC # SA00954SE)
Horton 'STOL-Craft' Wing Leading Edge STOL Cuff with Wing Stall Fences (STC # SA966CE)
E.I. 'Turbo Plus' Turbo Intercooler Temperature Differential Gauge
Barton/Monarch 'Umbrella style' Raised Fuel Caps (STC # SA2456CE)
Aero-Safe 'Guardian 1' Electric Standby Vacuum System
GAMI Fuel Injectors (STC # SE09289SE)
Bob Fields 'Aerocessories' Electric Pneumatic Cabin Door Seals (STC # SA2226NM)
RAPCO Vacuum Pump Cooling Shroud (STC # SA785GL)
M-20 Air-Oil Separator (STC # SA02033AT)
Brackett Air Filter (STC # SA71GL)
Wing-mounted Convex Landing Gear Position Inspection Mirror (STC # SA2749CE)
Cessna Service Letter SE84-3 complied with by installing Steel Nose Gear Down-Lock Spring Guide
Engine Oil Filter
Engine Preheat System
High Intensity LED Landing Light
Electric Pitch Trim
Rudder Trim
Dual Glideslopes
'Low Voltage' Warning Light
'High Cabin Altitude' Caution Light
Rosen STC'd Articulating Tinted Sunvisors
Polished Prop Spinner
Horizontal Stabilizer Abrasion Boots
Vernier Prop & Mixture Controls
Wingtip Strobe Lights
Manual Engine Primer
Factory Faux Woodgrain Instrument Panel
Instrument Post Lighting
24-Volt Auxiliary Power Source (cigarette lighter style) for charging iPads, iPhones, GPS's, etc.
Auxiliary Ground Power Receptacle (for jumpstarts)
Avionics Master Switch
Dual Push-to-Talk Switches
Pilot's Yoke-mounted 'Electric Trim Interrupt', and 'Autopilot Quick Disconnect' Switches
Pilot's Yoke-mounted 'Pitch Sync' Switch for Flight Director
Articulating & Vertically Adjusting Pilot & CoPilot Seats with Headrests & Shoulder Harnesses
Articulating Middle Seats with Headrests
Rear 5th & 6th Passenger Bench Seat with Overhead Skylights with Sliding Window Shades

Outside Air Temperature Gauge (OAT)

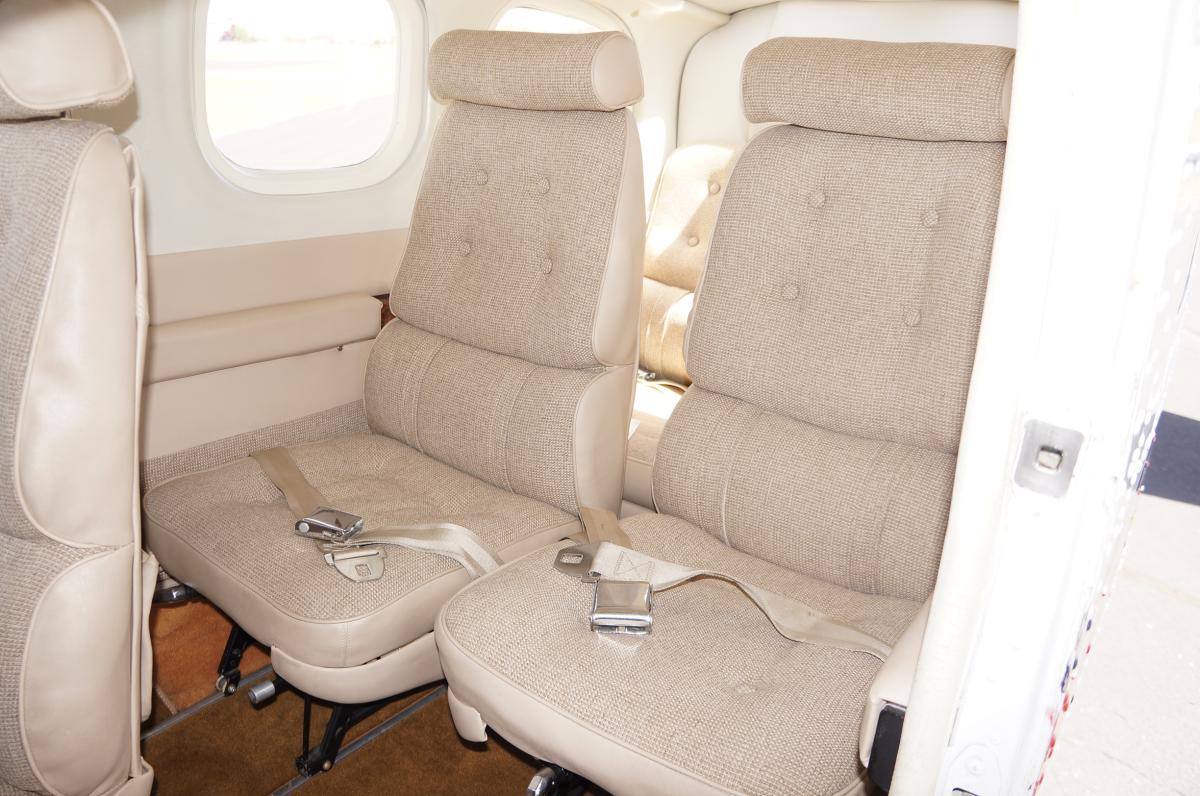

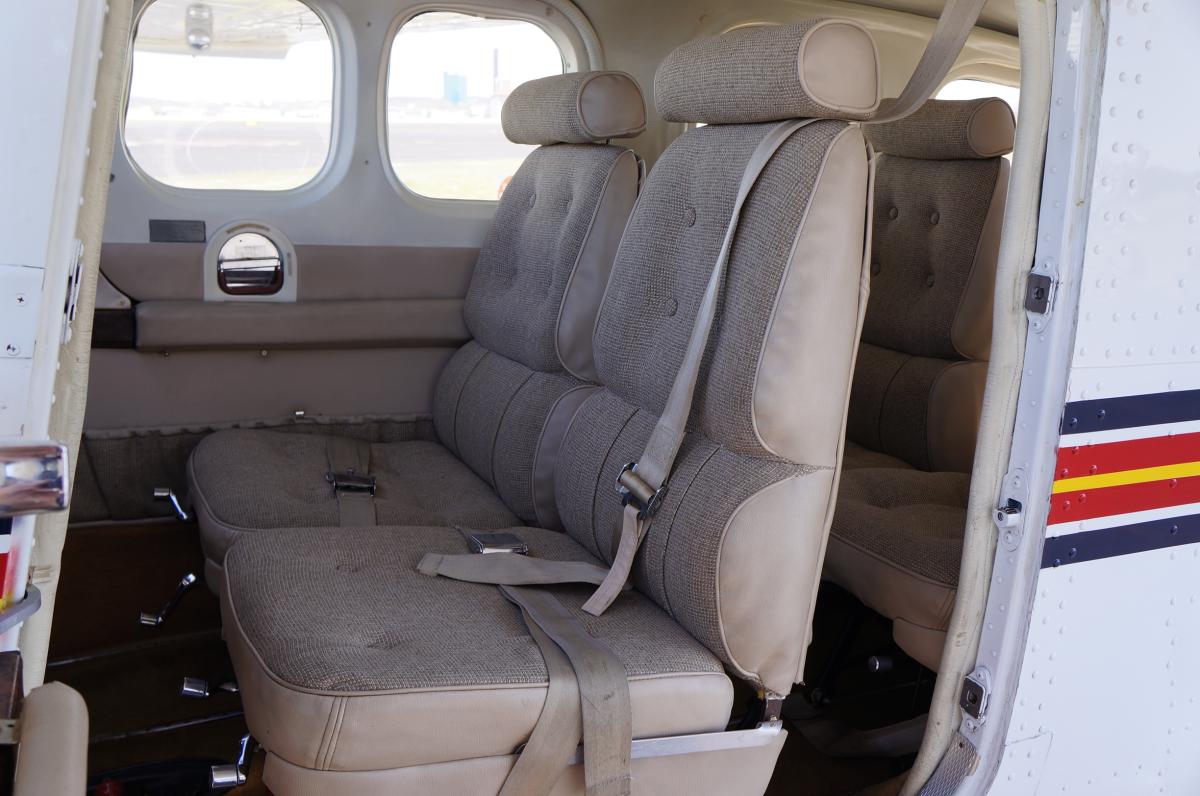

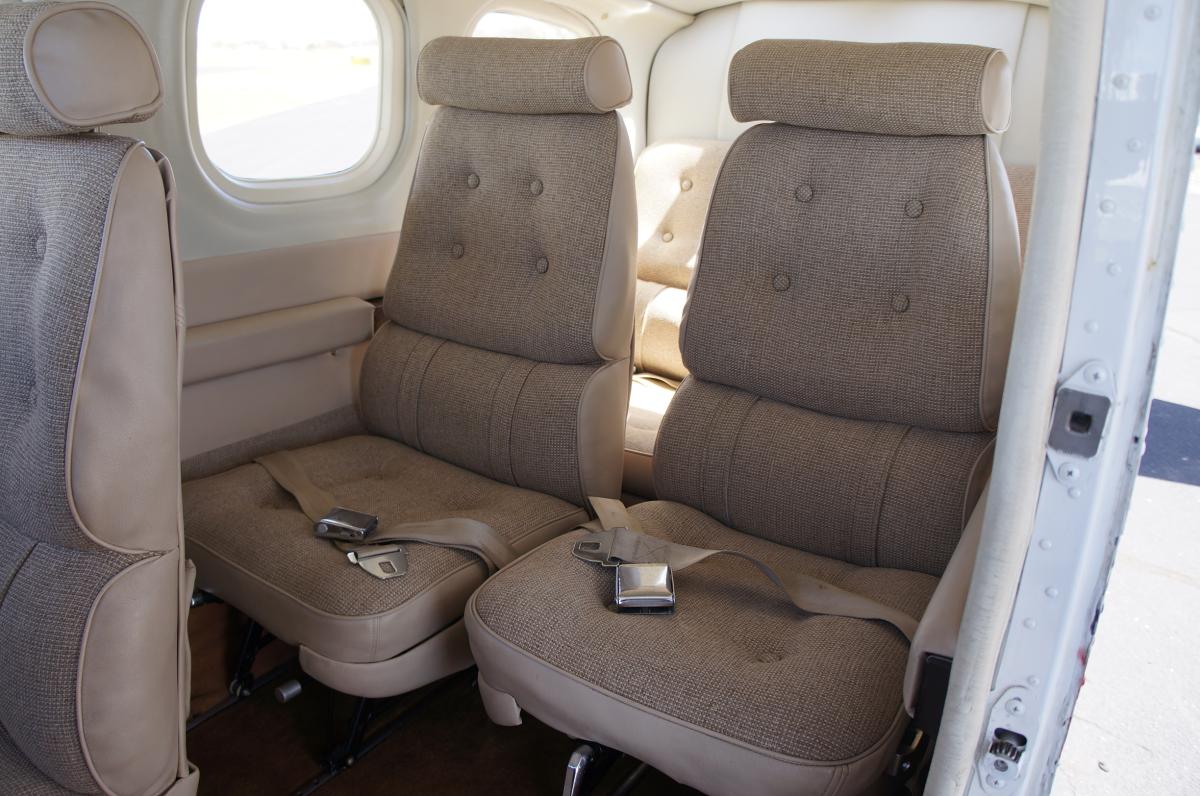

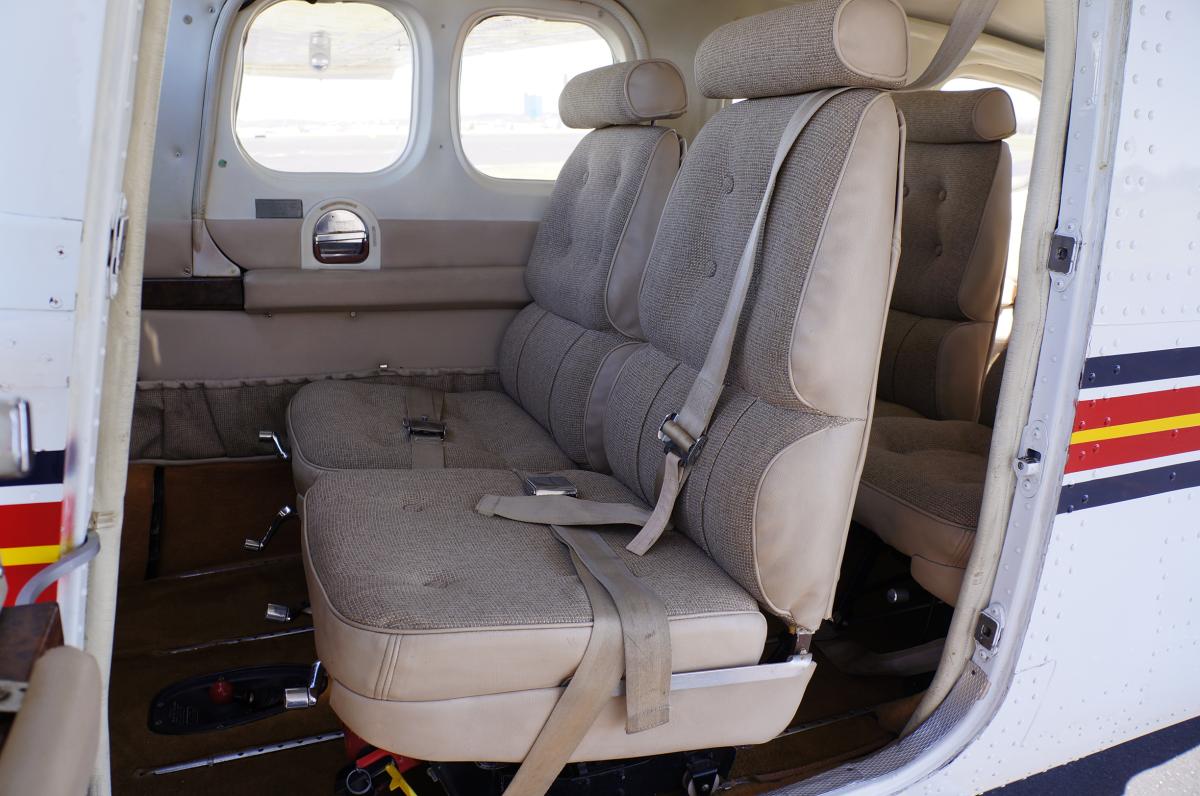

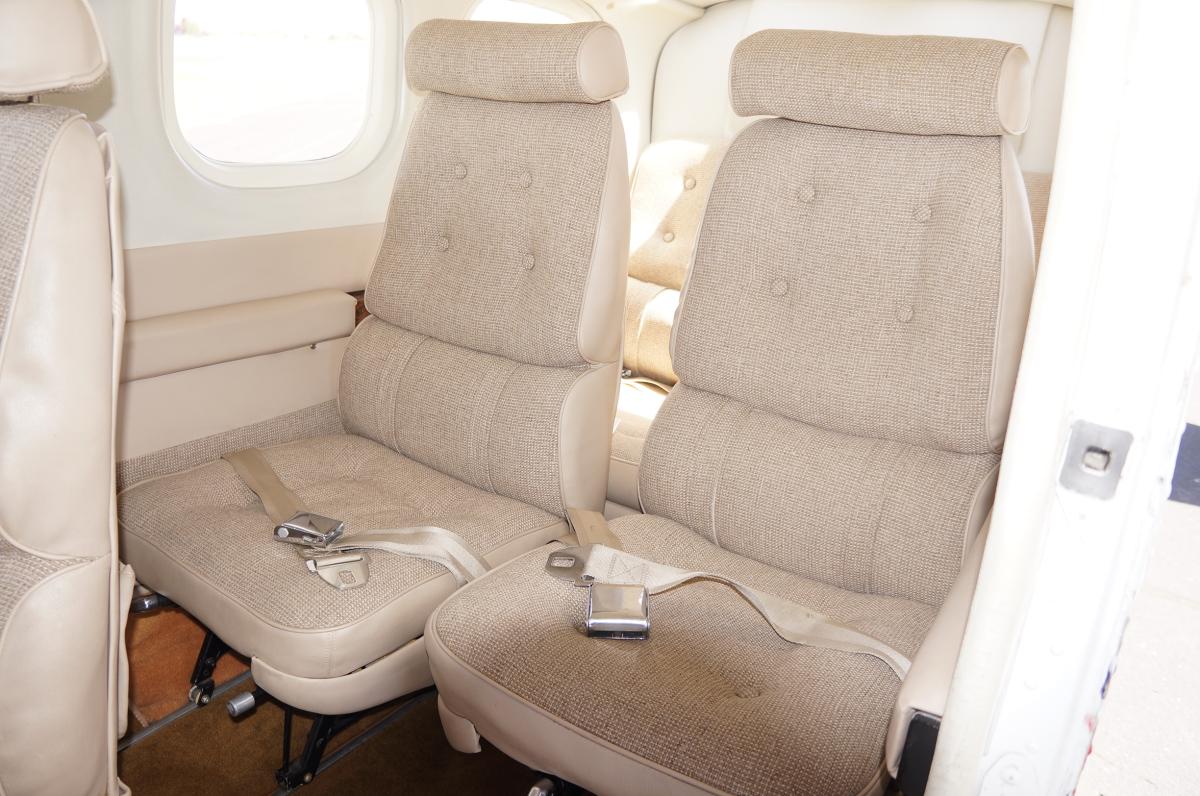

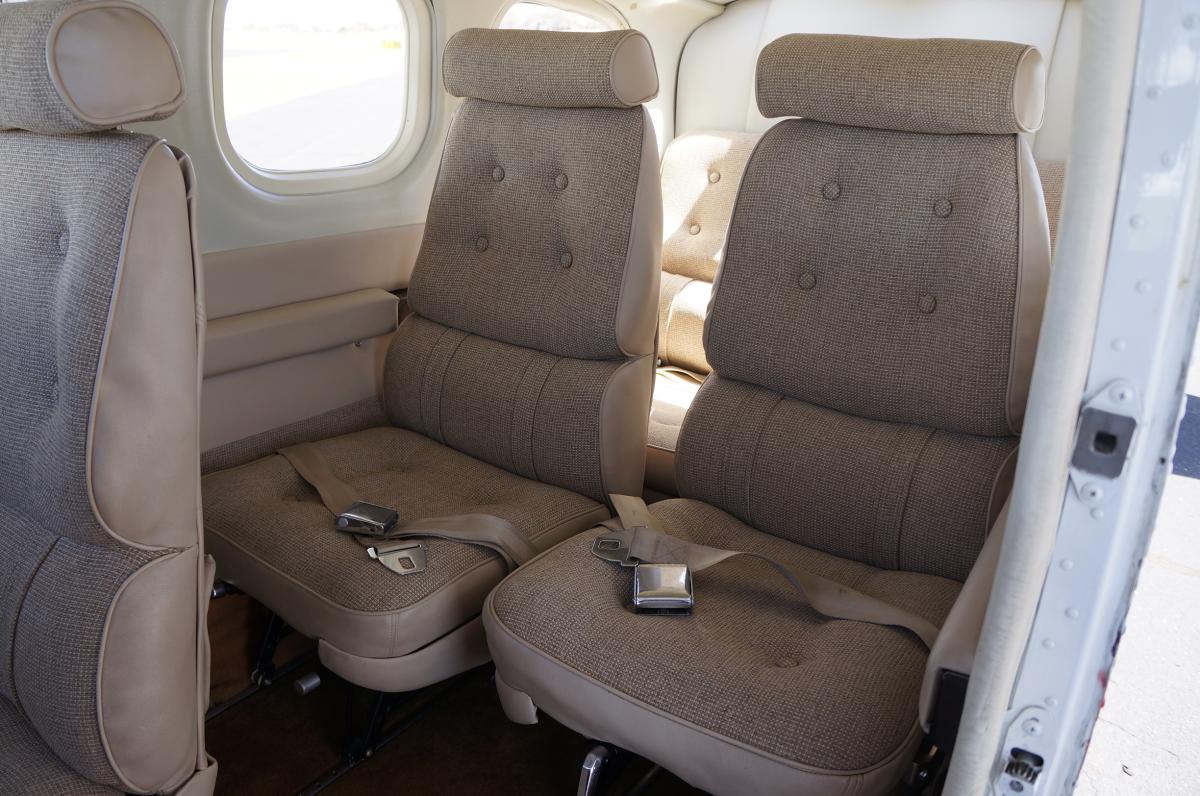

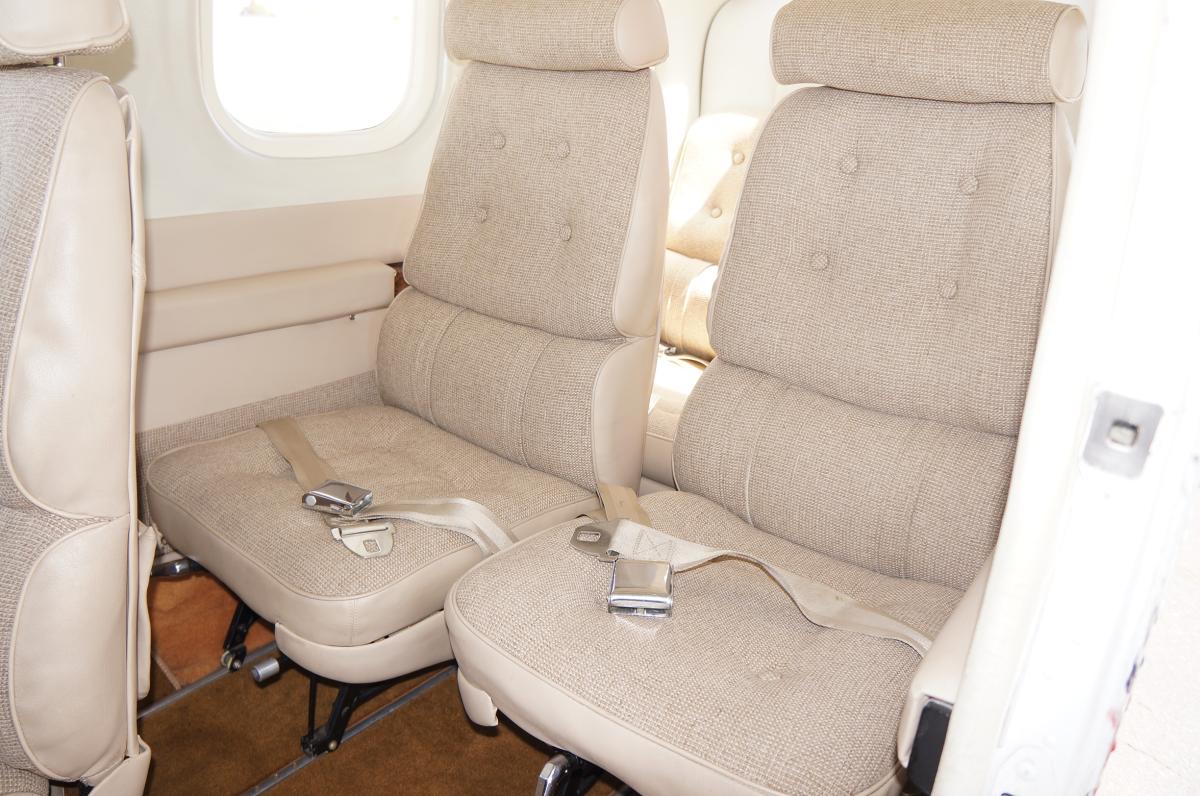

INTERIOR:

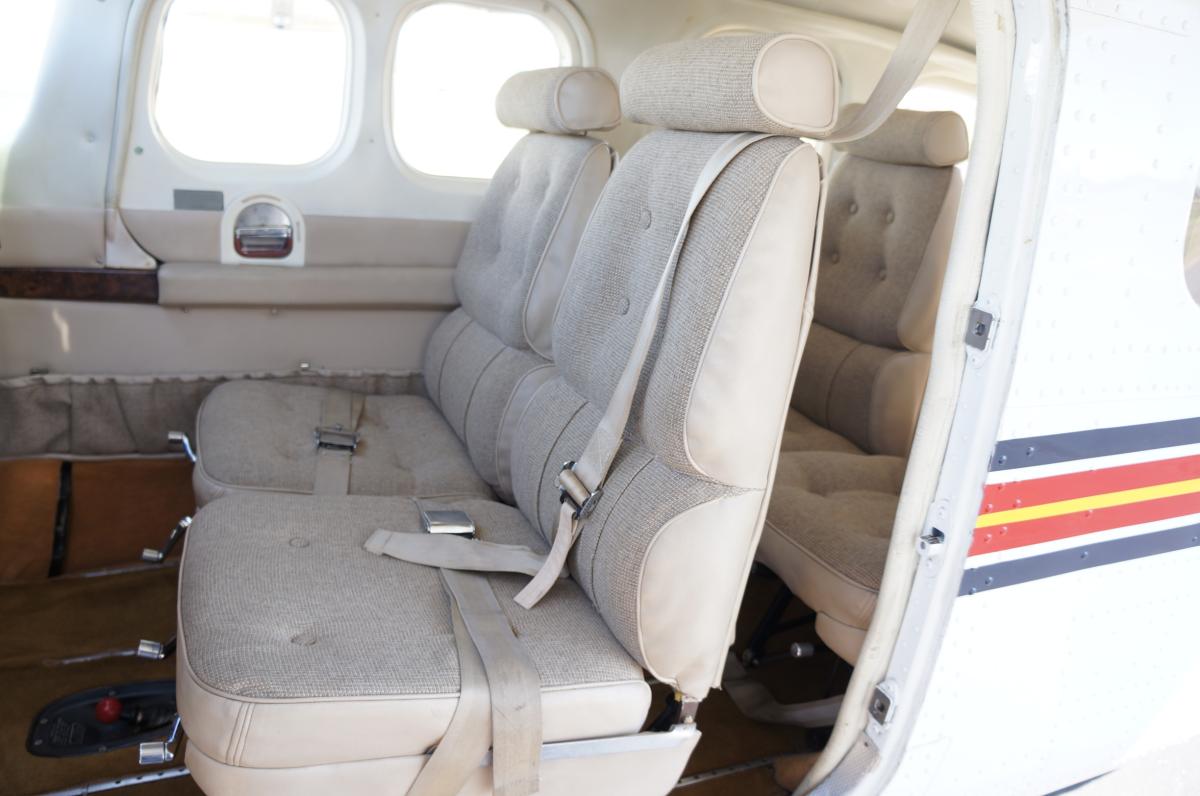

Interior replaced by A&A Aircraft Refinishers of Big Springs, TX with Airtex FAA vertical burn resistant compliant materials in June 1995 with:

'Wheat' Beige (DT-70) vinyl seats with 'Phoenix Toast' (#132) Beige 'houndstooth' style fabric inserts.
Matching Beige side panels with tweed map pockets.
Beige seatbelts.
Off-white interior window trim & headliner.
Beige carpeting new in 2011.
Very clean and serviceable.
Rated - 7 to 7+.

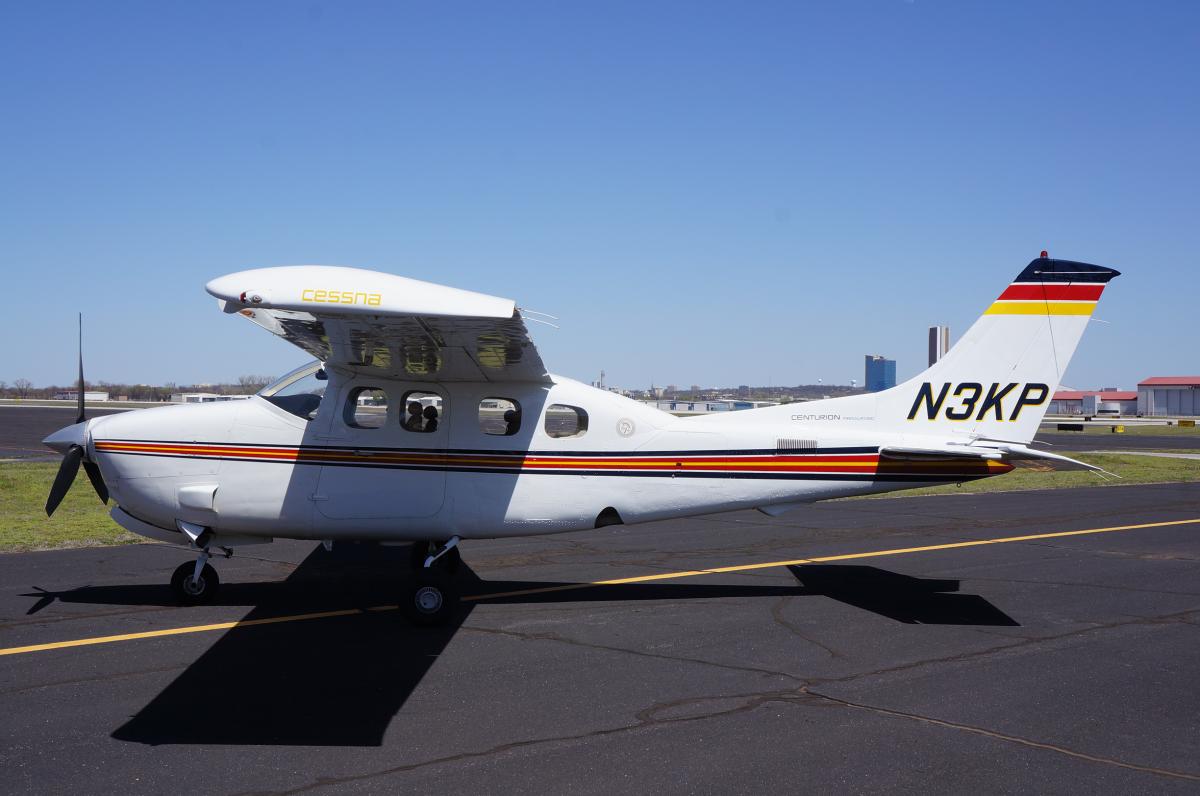

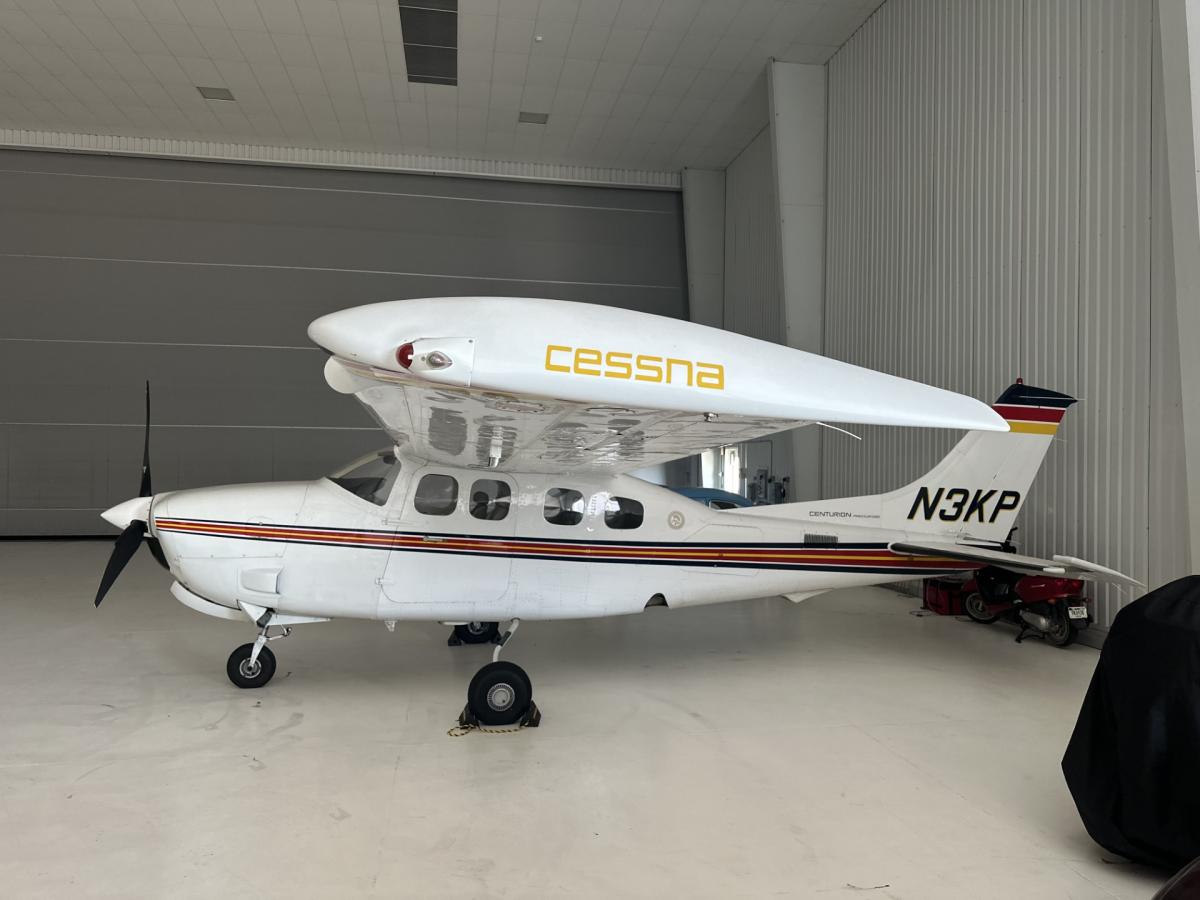

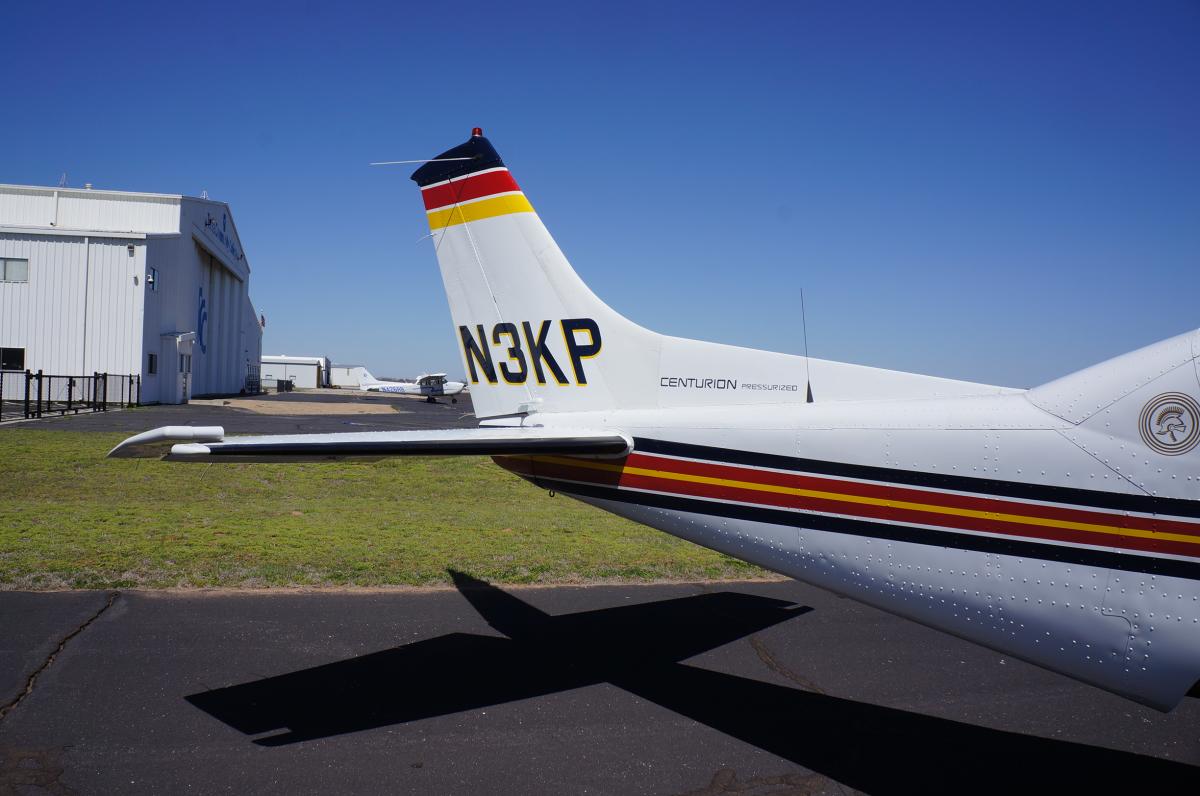

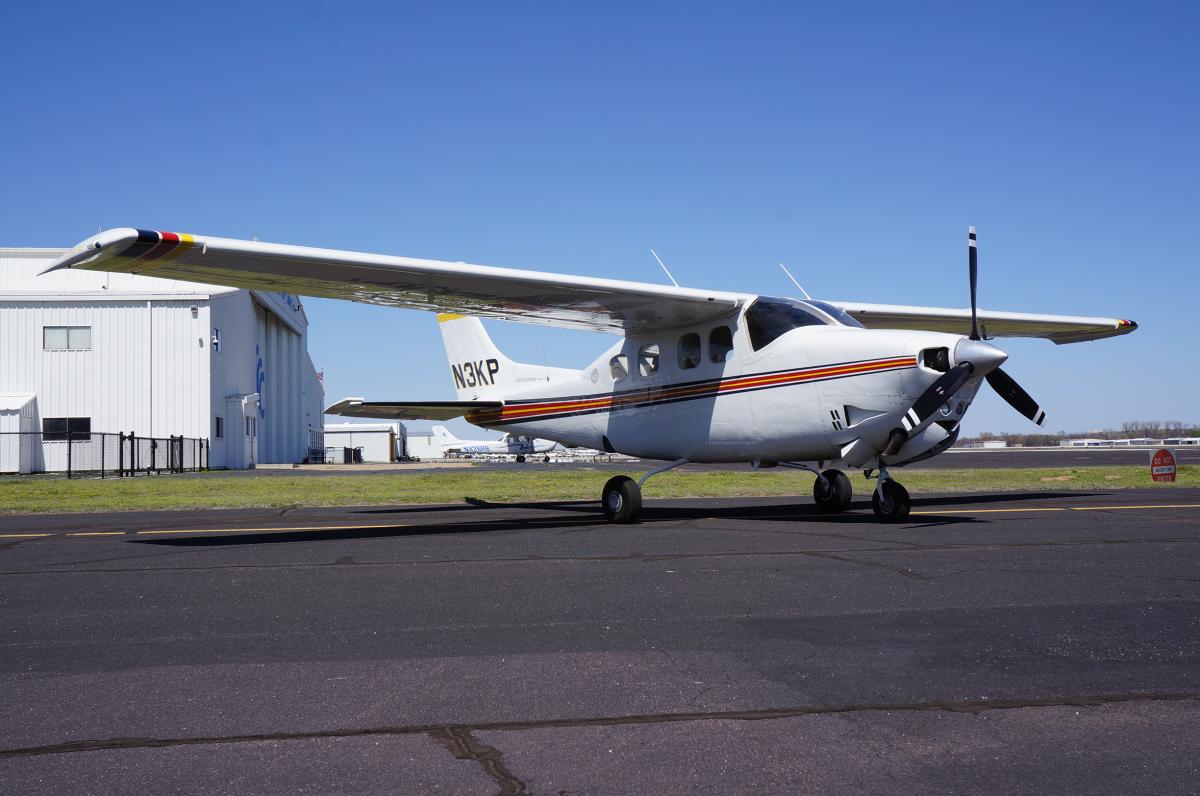

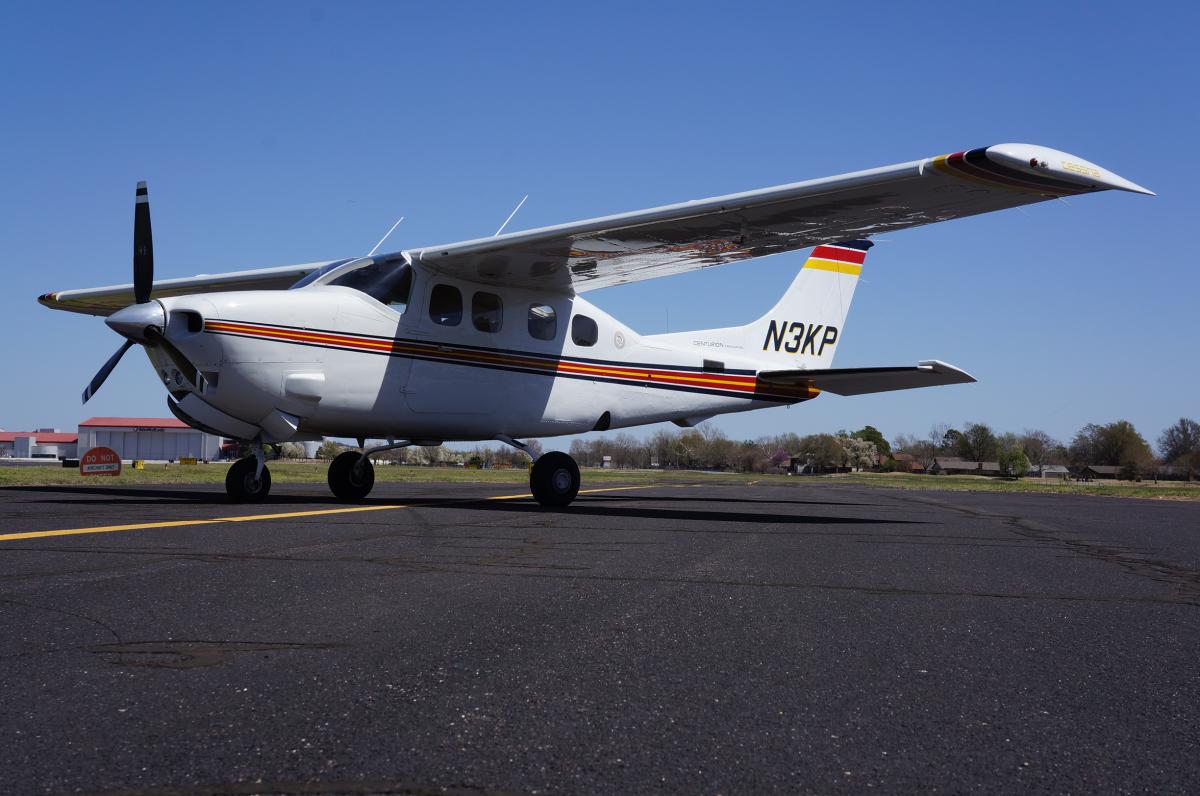

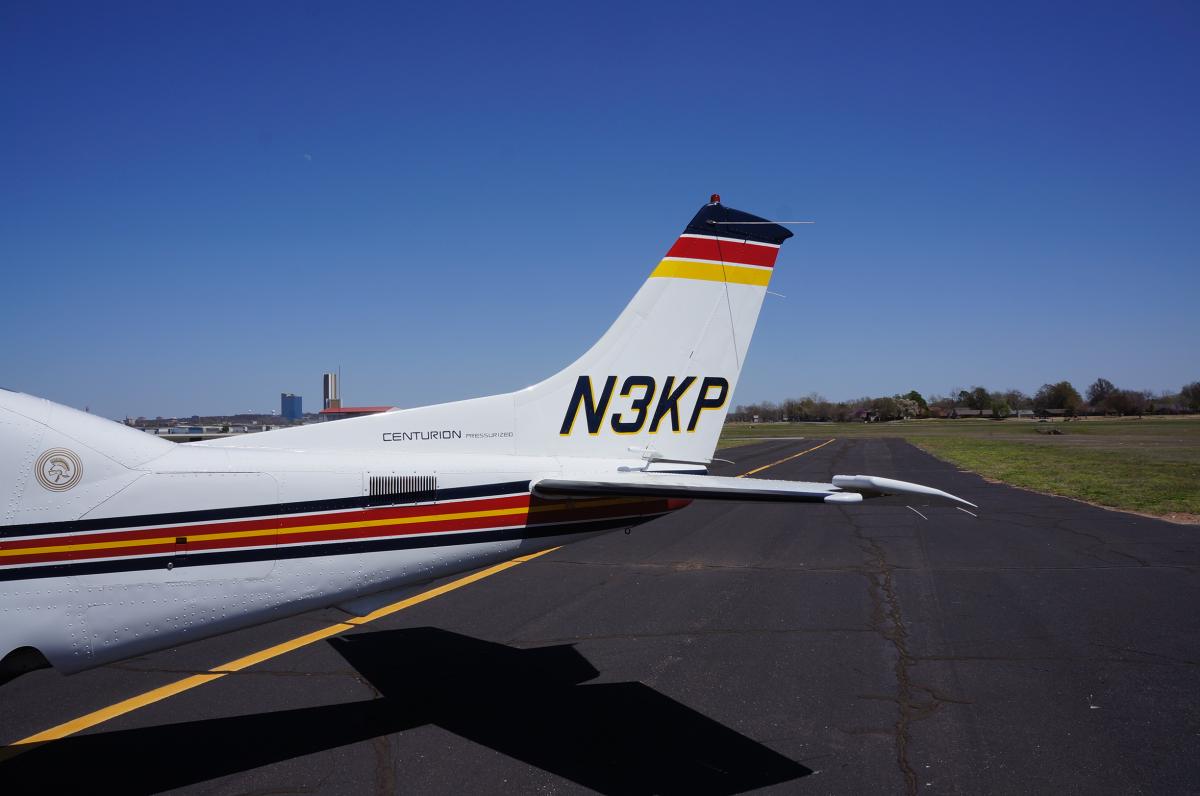

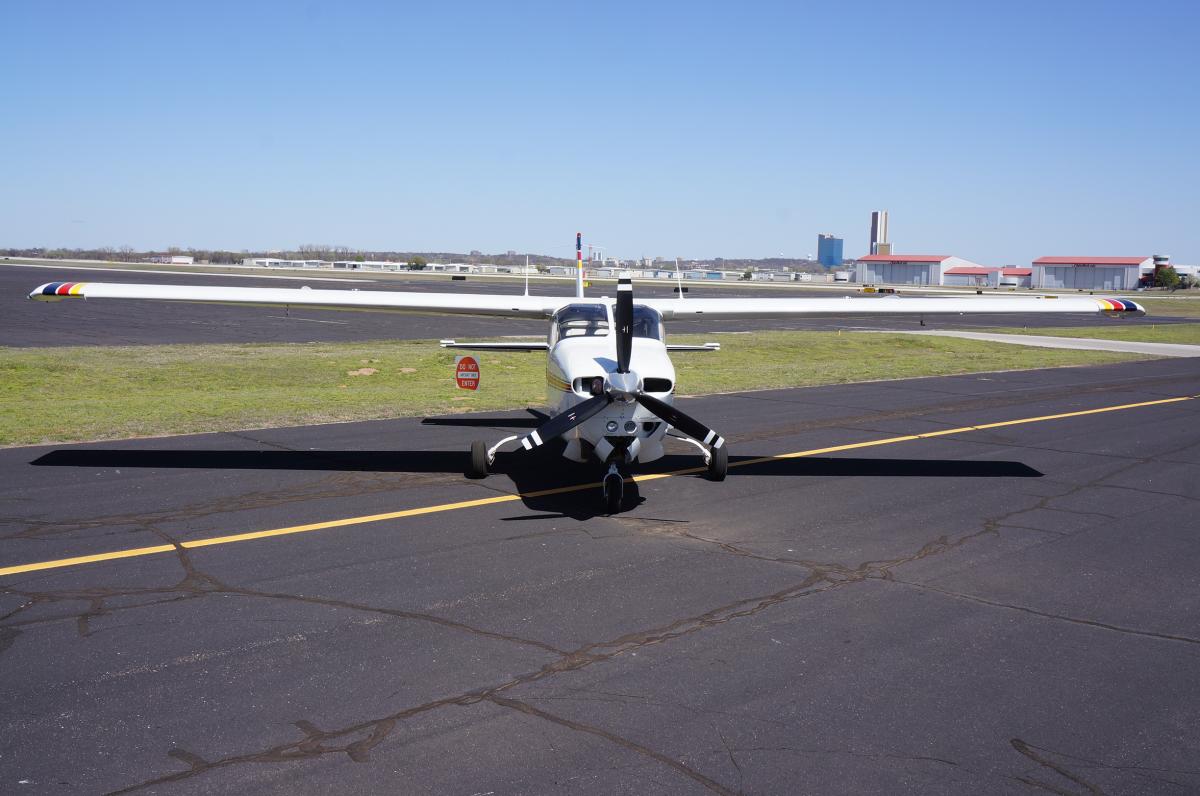

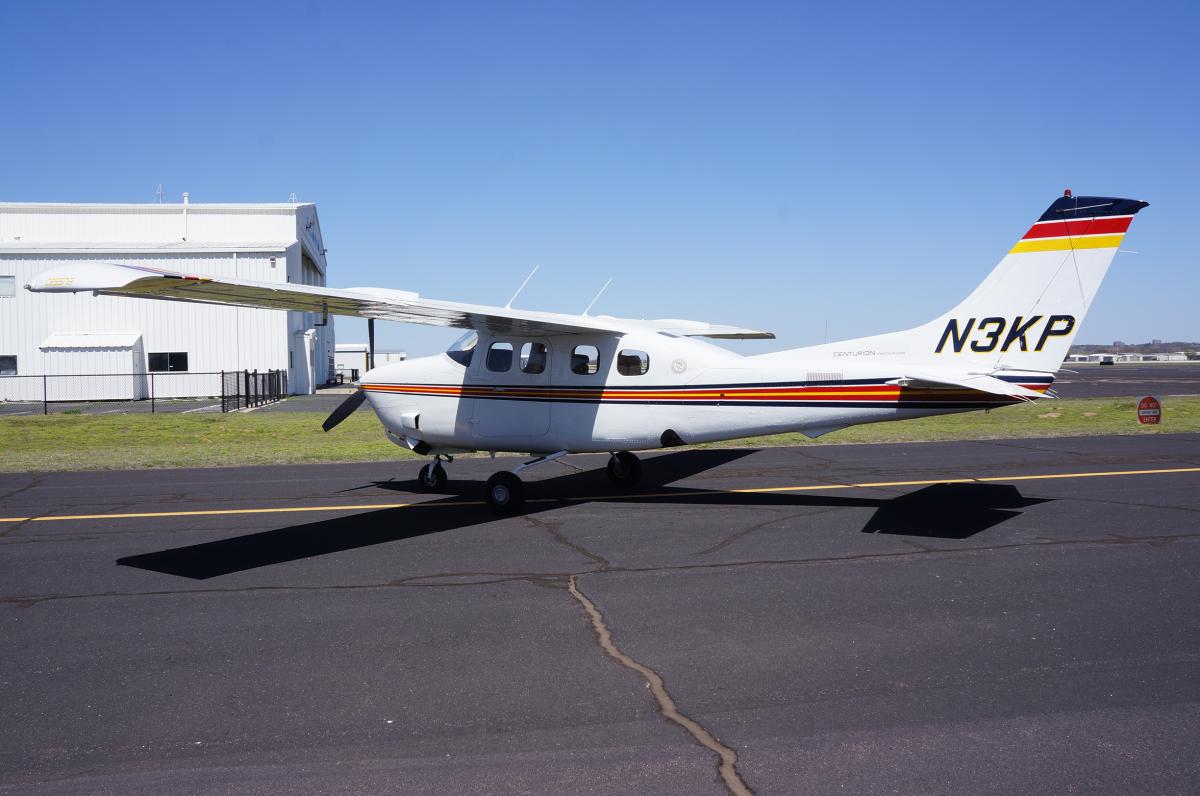

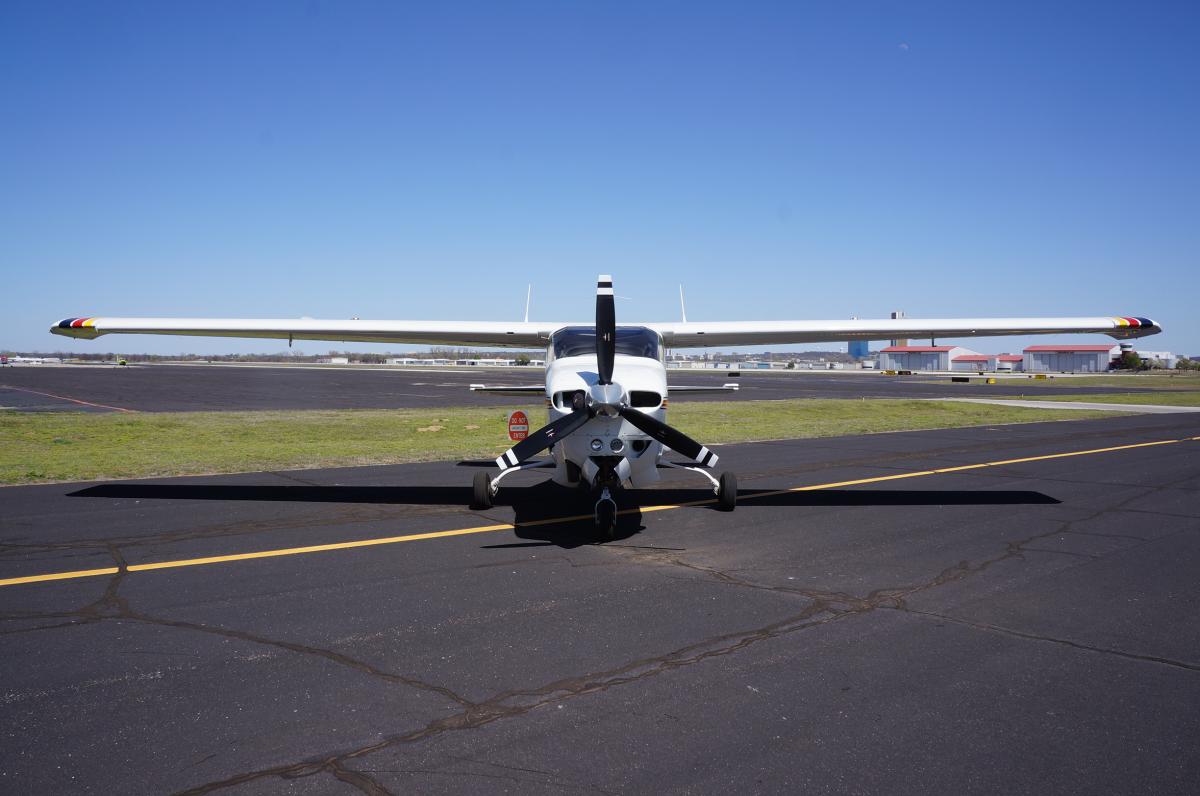

EXTERIOR:

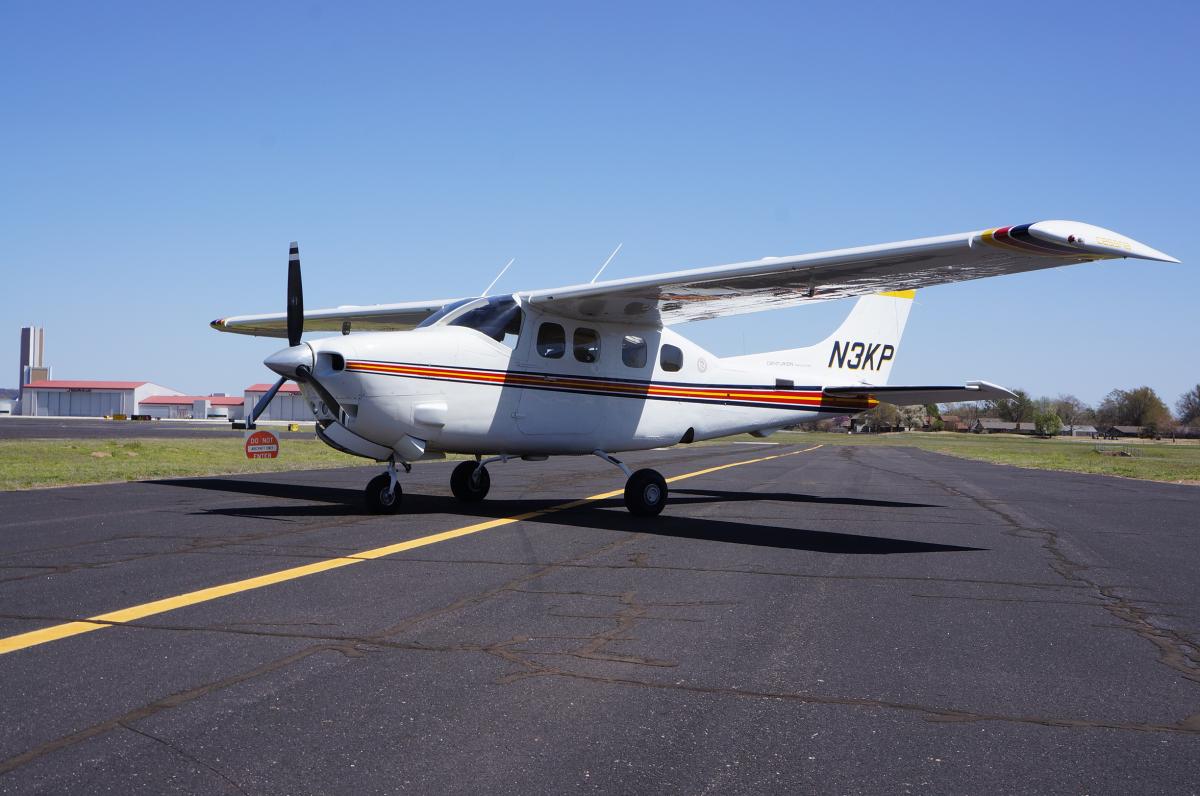

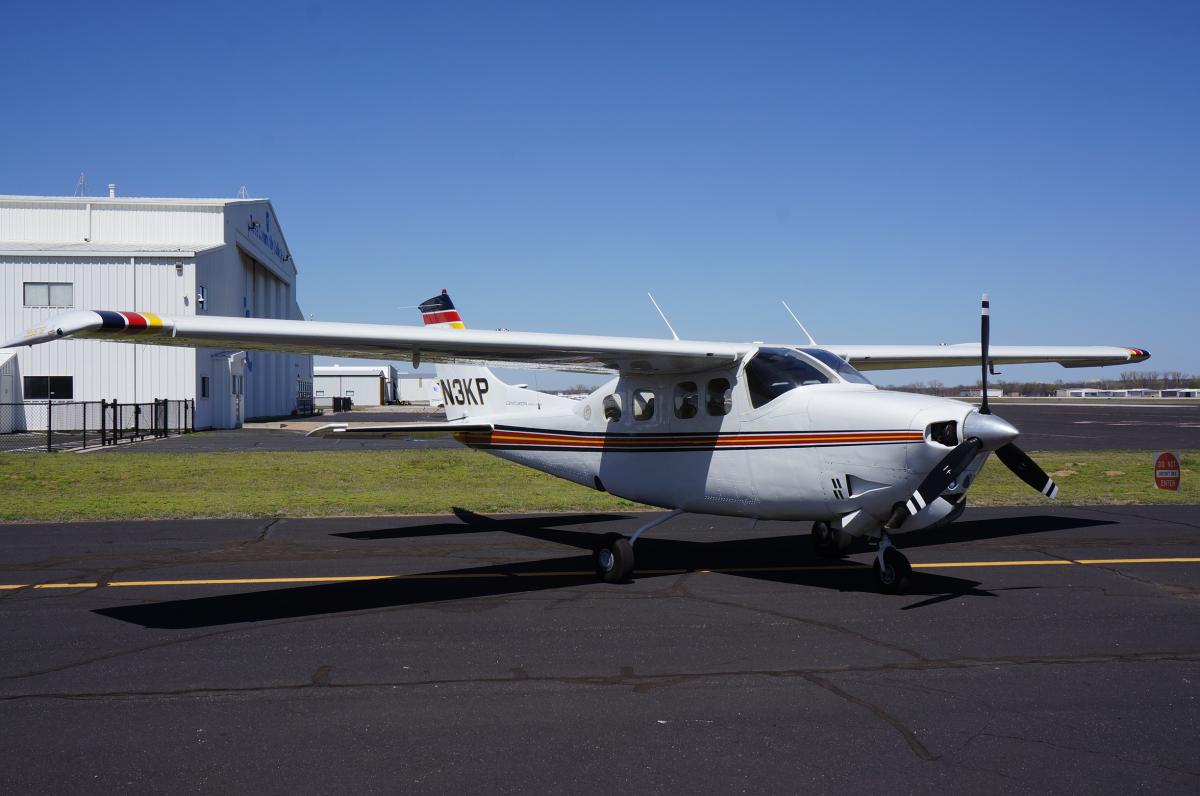

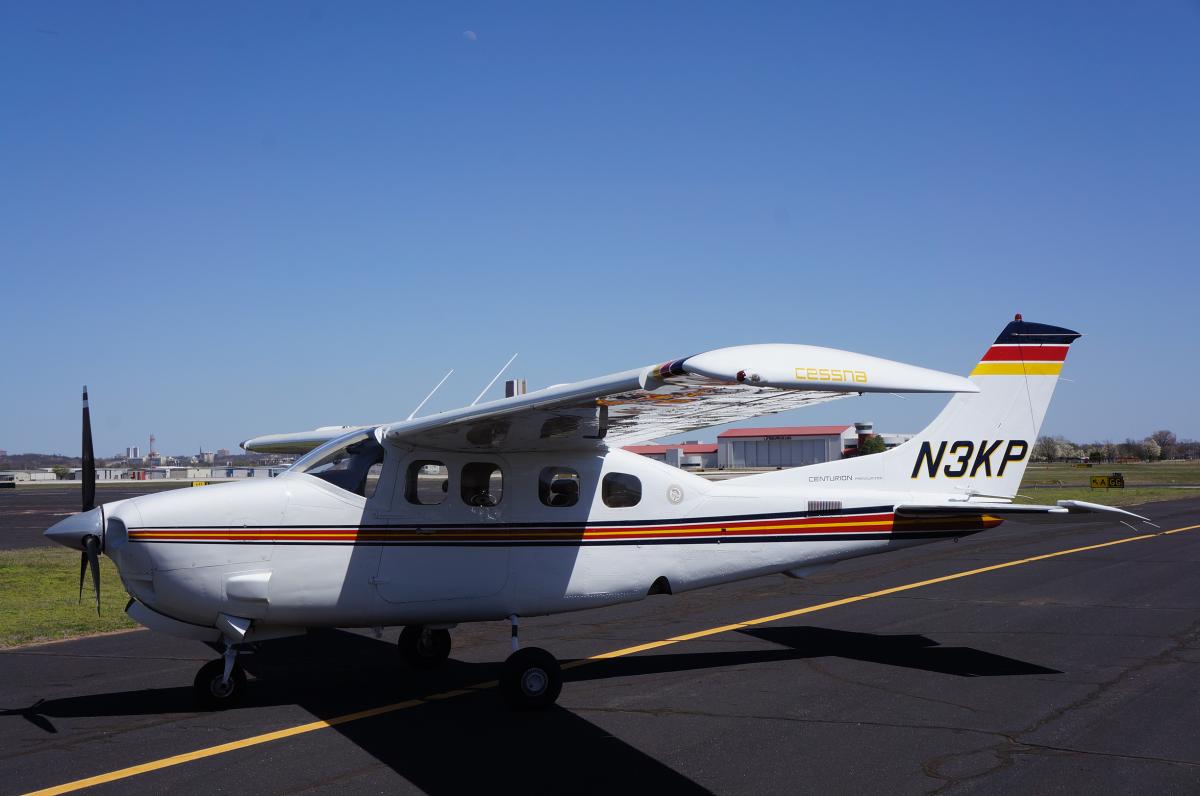

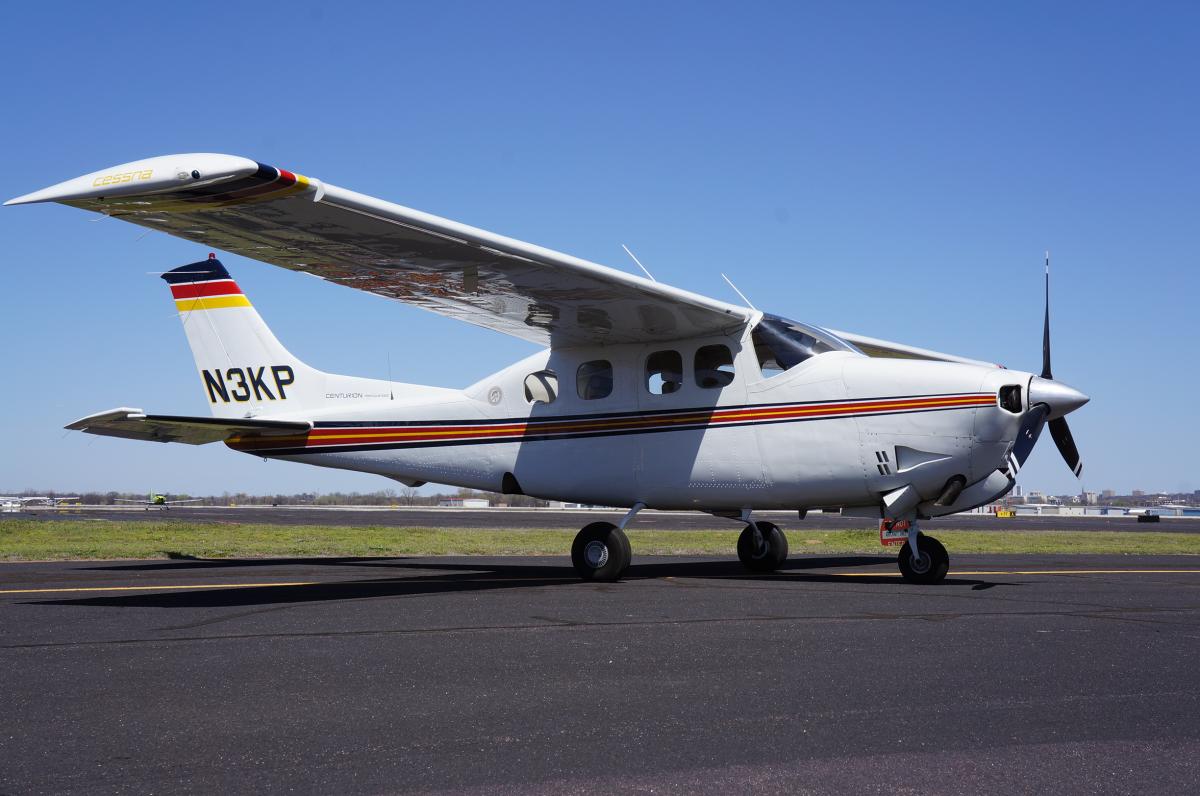

Professionally stripped, etched, washed, primed & painted by A&A Aircraft Refinishers in Big Springs, TX in June 1995 with:

JetGlo Off-White base.
JetGlo Midnight Blue trim.
JetGlo Sunfast Red and Chrome Yellow accent striping.

Very good condition. This paint looks very close to 'like new' condition. Quite amazing for the age of the paint job.
Rated 8+.

INSPECTION STATUS:

All Logs Complete Since New.
No Damage History.
Annual Inspection next due: Oct 1, 2024.
