• Avionics Suite: Garmin G530 WAAS & GTX 345
• Additional Highlights: RAM Engine Conversion

Airframe:
Total Time:5,691

Engines:
CONTINENTAL GTSIO520L
Time: 1242/936
TBO: 1600

Props:
Time: 1856

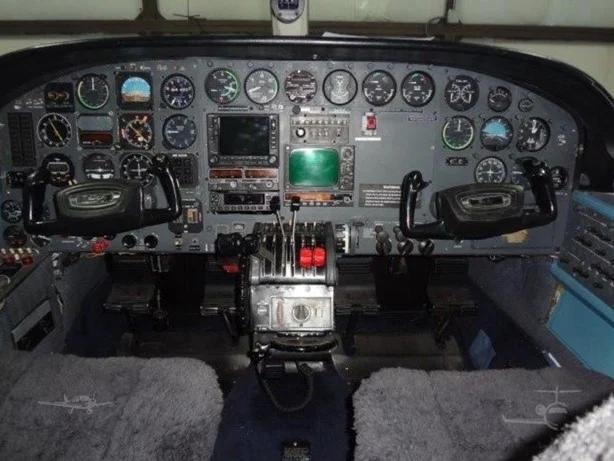

• Garmin GNS-530W IFR Approach Certified GPS/Com
• King KMA-24 Audio Panel
• King KX-155 Digital Nav-Com w/ VOR/LOC
• Century NSD-360 Slaved HSI
• Mid-Continent MD41-828 Annunciator/Selector Switch for GPS
• Bendix/King KWX-50 Weather Radar
• King KR-87 Digital ADF w/ Flight Timer
• King KN-63 Digital DME
• Garmin GTX-345 Mode S Transponder (ADS-B Complaint)
• Encoding Altimeter
• Cessna 400B Autopilot w/ Hdg, GPS & Nav Tracking, Pitch Mode, Altitude Hold & Glideslope Coupling

Professionally stripped, acid etched, washed, Alodined, primed and painted by Cimmaron Aircraft Corp. of El Reno, OK (May 1997) Base coat: Jet Glo 'Graystone' 570-508 Accenting Blue & Red Stripes Trim coats: Top stripe: Acry Glo 'Red' 416 Center stripe: Acry Glo 'Blue' 10122 Bottom stripe: Acry Glo 'Red' 416 Rated 7+ to 8

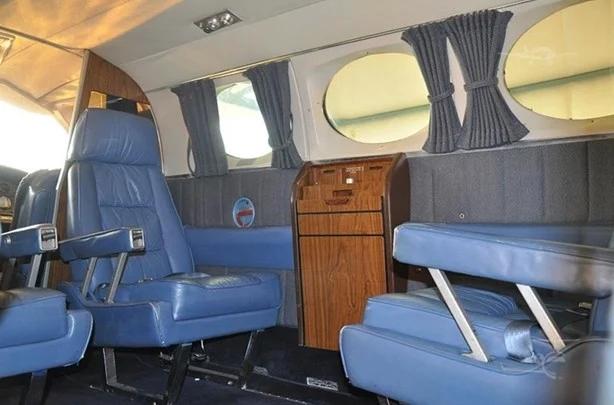

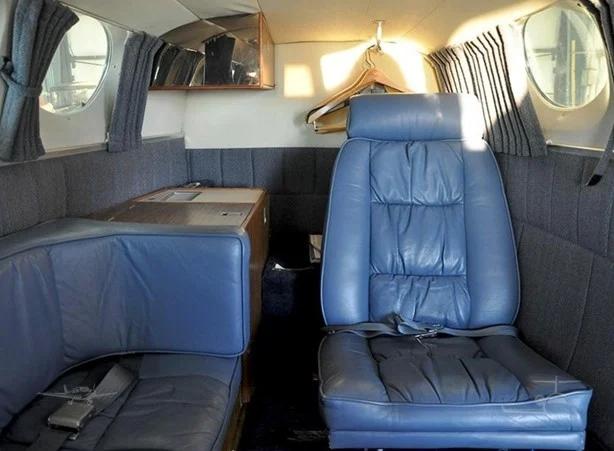

Blue Leather Upholstery w/ Matching Carpet & Sidepanels Dove Gray Headliner Executive Table & Refreshment Center Seventh Seat Potty Rated 7 to 7+

Full De-Ice Equipped Keith Products STC'd Air-Conditioning System RAM STC'd Max Gross
Takeoff Weight Increase to 7,560 lbs ! (STC # SA5981SW) RAM STC # SE8338SW-D (Locknuts
on cylinder attachment studs and thru-bolts, & install 6 additional cylinder attachment studs
onto engine crankcases. Turbo oil supply line relocated) RAM STC'd Bendix Pressurized
Magnetos (STC # SE4591SW-D) RAM STC'd Floscan Fuel Flow Transducer (for Digital Fuel
Flow Indication) (STC # SE5726SW-D) RAM STC'd Range-Marked EGT, CHT, Oil Temperature,
& Oil Pressure Gauges (STC # SA5878SW) RAM STC'd Vacuum Pump Cooling Shroud on Right
Engine Vacuum Pump (STC # SA3721SW-D) RAM STC'd Improved Engine Cooling Baffle and
Improved Exhaust System Slip Joints (STC # SA4592SW) RAM STC'd Induction Hose Clamps
(STC # SE3767SW) Engine Fire Extinguishing System (New Squibs installed on LH & RH Fire
Bottles in October 2016) Emergency Landing Gear Extension System. Electric Pitch Trim Large
Nose Baggage Compartment Right-Hand Executive Writing Table Refreshment Center Belted
Potty Seat Left & Right Wing Locker Fuel Tanks Passenger Oxygen System. Engine Oil Filters
Right-Hand Propeller Governor Syncrophaser Dual 100-Amp Alternators Dual Artificial Horizons,
Airspeed Indicators, Altimeters, and Vertical Speed Indicators Strobe Lights Alcor EGT
Gauges Artex 406 Hz ELT System. Hobbs Meter Pilot & Co-Pilot Inertia Reel Shoulder Harnesses
Overhauled Pilot's Nav Indicator #1, Attitude Indicator, & Dry Air Pump in May 2016
All New Pilot & Co-Pilot's Windshields, Side Windows, & Foul Weather Windows in January
2001 New Cabin Windows at the Left Side First Passenger Seat, & Right Side First & Second
Passenger Seats in January 2001 Exhaust AD # 2000-1-16 para. 'G' c/w in Aug 2013 w/ New
Turbo 'Y' Assembly, Wastegate Elbow, Overboard Exhaust Stacks, Slip Joints, Seals, Clamps

Full De-Ice Equipped Keith Products STC'd Air-Conditioning System RAM STC'd Max Gross Takeoff Weight Increase to 7,560 lbs ! (STC # SA5981SW) RAM STC # SE8338SW-D (Locknuts on cylinder attach-ment studs and thru-bolts, & install 6 additional cylinder attachment studs onto engine crankcases. Turbo oil supply line relocated) RAM STC'd Bendix Pressurized Magnetos (STC # SE4591SW-D) RAM STC'd Floscan Fuel Flow Transducer (for Digital Fuel Flow Indication) (STC # SE5726SW-D) RAM STC'd Range-Marked EGT, CHT, Oil Temperature, & Oil Pressure Gauges (STC # SA5878SW) RAM STC'd Vacuum Pump Cooling Shroud on Right Engine Vacuum Pump (STC # SA3721SW-D) RAM STC'd Improved Engine Cooling Baffle and Improved Exhaust System Slip Joints (STC # SA4592SW) RAM STC'd Induction Hose Clamps (STC # SE3767SW)
