Airframe:
Total Time: 5,162.8
Total Landings: 1,699
FalconCare Airframe Program (Coverage through 2028)
CAMP Maintenance Program
Currently Undergoing 36-Month Inspection at Dassault Little Rock, AR
No Known Damage History

Engines:
PRATT & WHITNEY PW307A
Time: 5162/4790/5162
Cycles: 1699/1588/1699
Engines enrolled on ESP Gold Engine Program (Currently $576.15 per engine/hr)

APU:
Time: Time: 2718
APU enrolled on MSP APU Program (Currently $140.04 per hour)

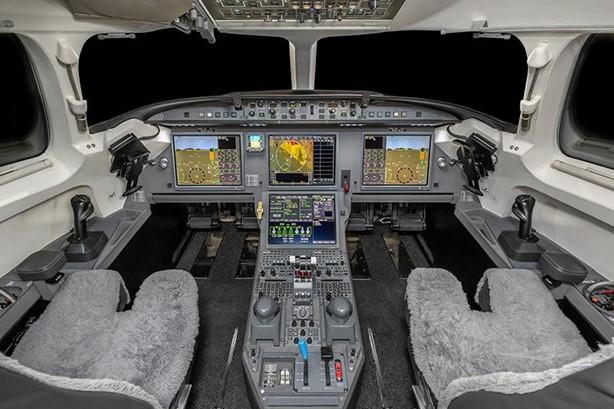

Honeywell EASy II – CERT 5 Avionics
Triple Honeywell LASEREF V
Dual Honeywell DM-855 DME Receivers
Dual Honeywell KRX-1053 Nav Receivers (VOR/LOC/GS)
Dual Honeywell KPA-1052 Audio Control Panels
Dual Honeywell KAC-1052 Radio Management Units
Dual Honeywell RCZ-833K VHF Comm Transceivers
Dual Honeywell RNZ-851 Nav Receivers
Dual Honeywell XS-857A Mode S Transponders (ADS-B Out)
Dual Honeywell DF-855 ADF Receivers
Dual Honeywell KRA-405B Radio Alitmeter
Honeywell ADAHRS AHRS
Honeywell MCS-7120 w/CG-710 upgrade SATCOM
Honeywell CVFDR-429 CVR
Honeywell EGPWS
ACSS TCAS-3000 w/ Change 7.1 TCAS II
4-screen DU-1310-based EFIS
GoGo AVANCE LX5 WiFi

2020

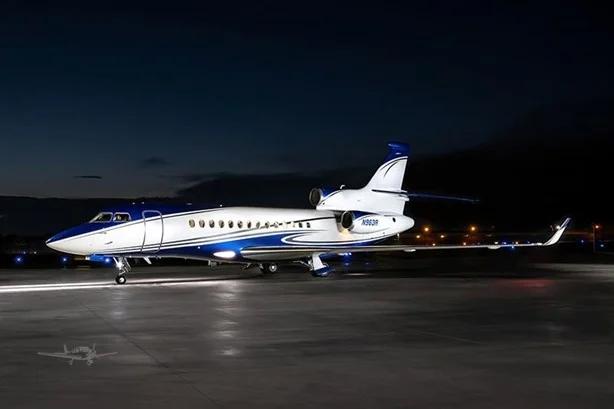

The aircraft is finished in overall Matterhorn White with Daytona Blue Metallic engine nacelles,
tail, and winglets, accented by Cumulous Gray and Daytona Blue Metallic striping. Exterior
completed by West Star Aviation in Grand Junction, CO in June 2020.

2020

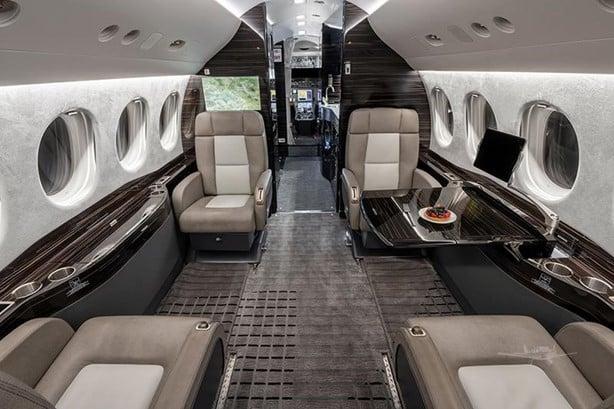

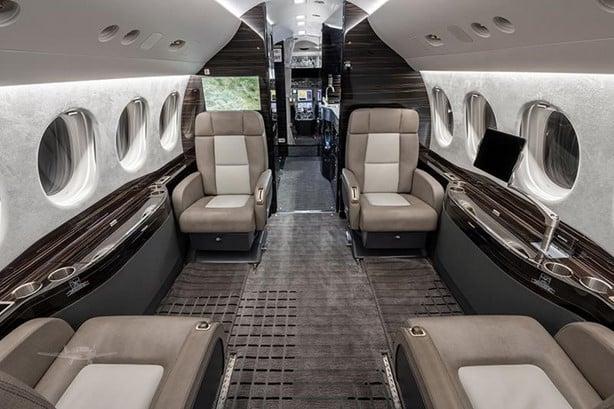

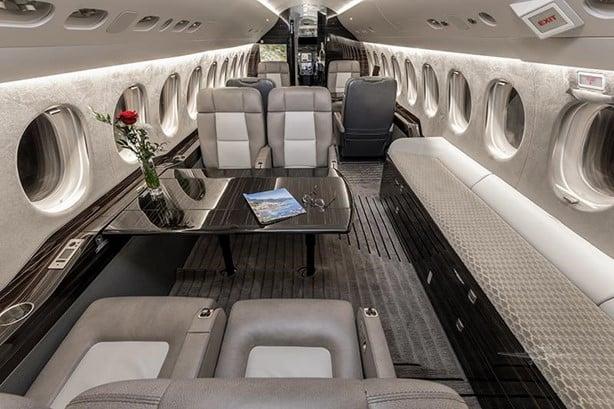

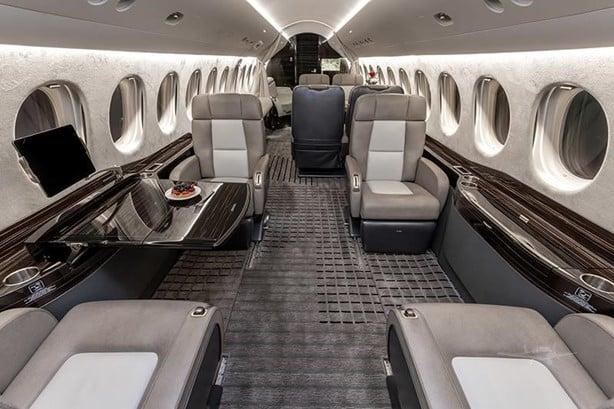

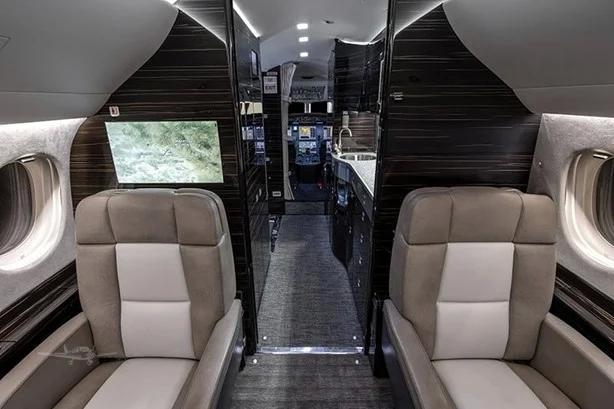

The 14-passenger executive interior features a forward four-place club configuration with
berthable, mechanically actuated seats, followed by a four-place dining/conference group

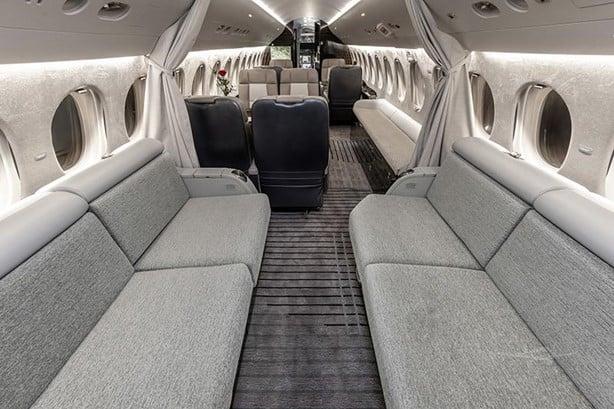

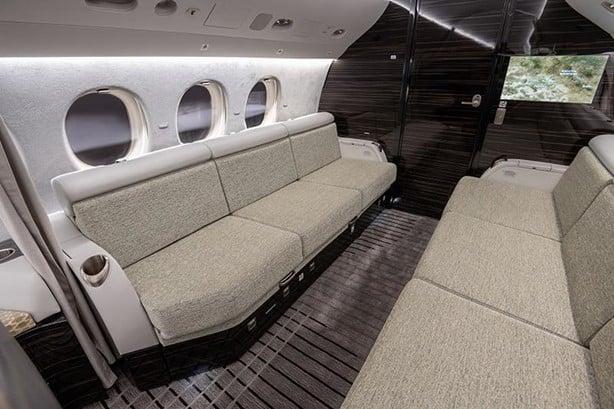

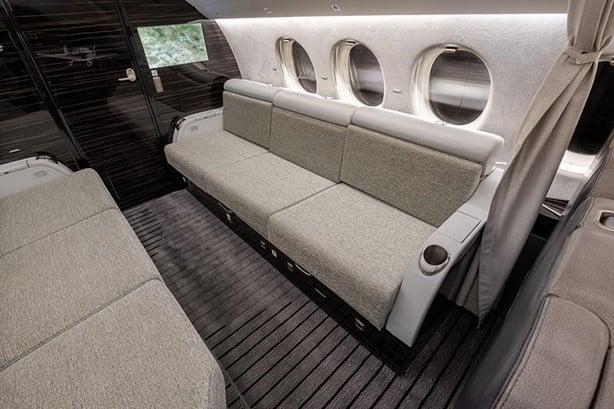

opposite a two-place settee. The aft cabin includes dual opposing three-place divans, offering
flexible lounge or rest space. All seating is completed in elegant two-tone taupe and ivory

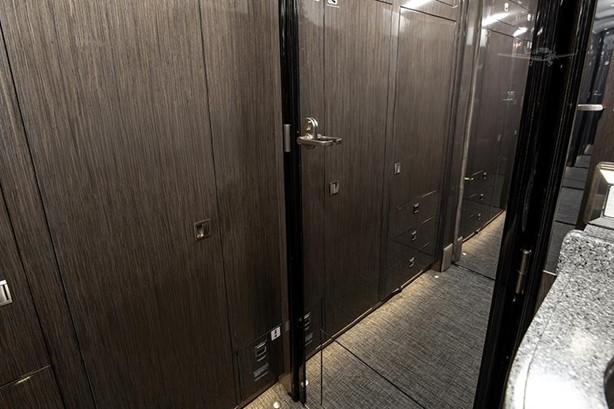

leather, complemented by high-gloss Macassar ebony veneer cabinetry and dark charcoal
patterned carpet. Cabin sidewalls and headliner are upholstered in a soft platinum Ultraleather,
with brushed metal hardware accents throughout. The interior was fully refurbished in June

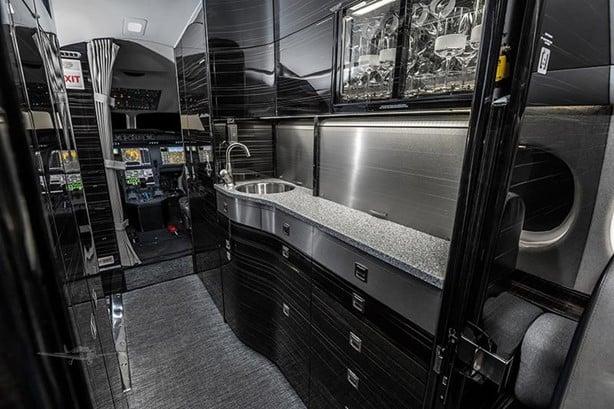

2020 by WestStar Grand Junction, CO, with updated soft goods and woodwork. A forward righthand galley and galley annex are equipped with a TIA WaveJet microwave oven, Iacobucci
cappuccino/espresso machine, Enflite high-temperature convection oven, Starr heated liquid
container, and a Collins galley control panel with integrated touchscreen. Cabin entertainment is
managed through a Collins FCMS cabin management system with galley touchscreen interface,
dual 24” bulkhead-mounted LCD monitors (forward and aft), dual 10.4” plug-in LCD monitors,
iPod and composite A/V input, Airshow 4000, and dual DVD players. Business connectivity
includes Gogo AVANCE LX5 high-speed internet, SwiftBroadband capability, and three
dedicated ethernet ports. A solid pocket door and accordion-style acoustic curtain separate the

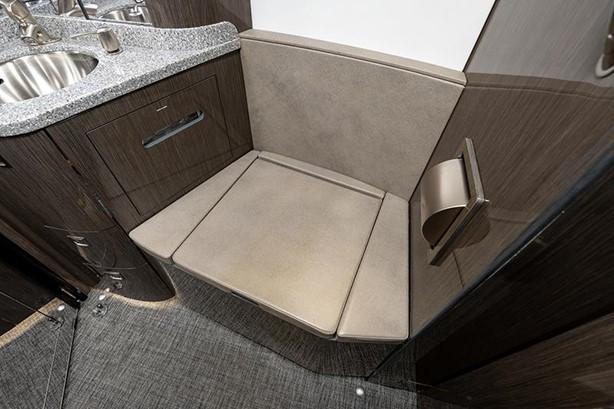

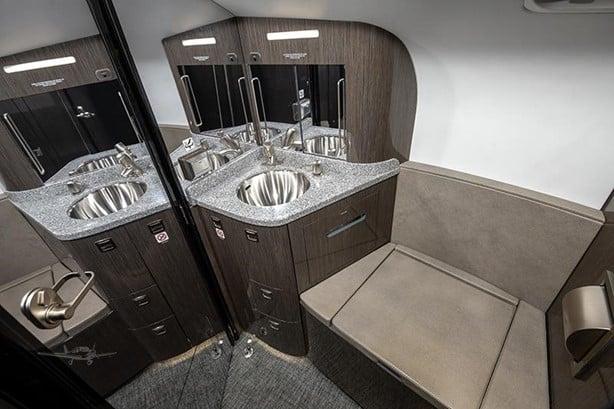

cabin from the galley and flight deck for privacy. Lavatories are located forward (crew) and aft,
with the aft lavatory featuring a vanity. An internal aft baggage compartment provides in-flight access.

GoGo AVANCE LX5 Wi-Fi System
Collins FCMS Cabin Management System

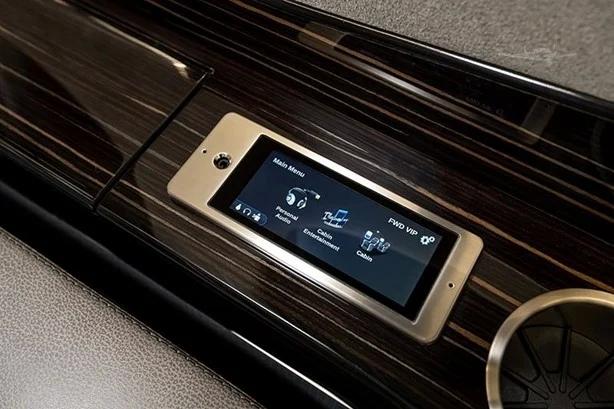

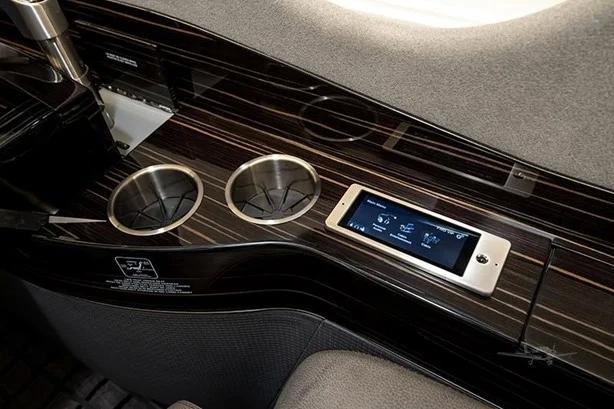

Galley Touch Screen Cabin Control
High Temperature Convection Oven
Dual DVD/CD Player
Securaplane External Camera
Forward Crew Lavatory
CPDLC with “Push to Load” Functionality
Synthetic Vision Technology
FANS 1/A
WAAS/LPV
HUD/EVS
