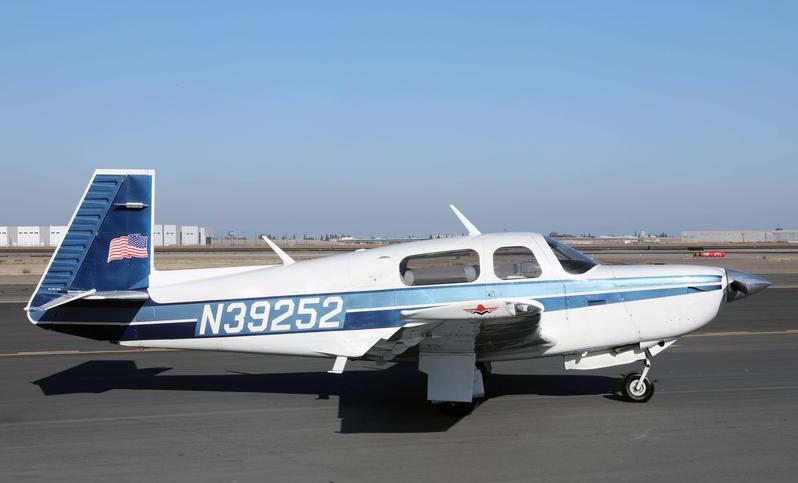

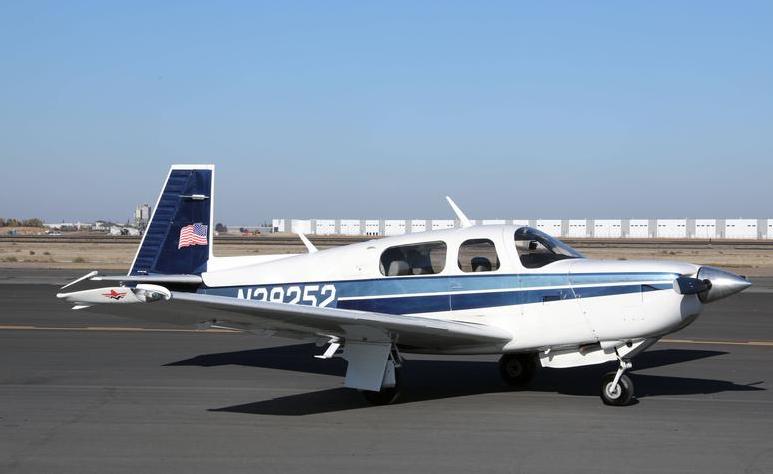

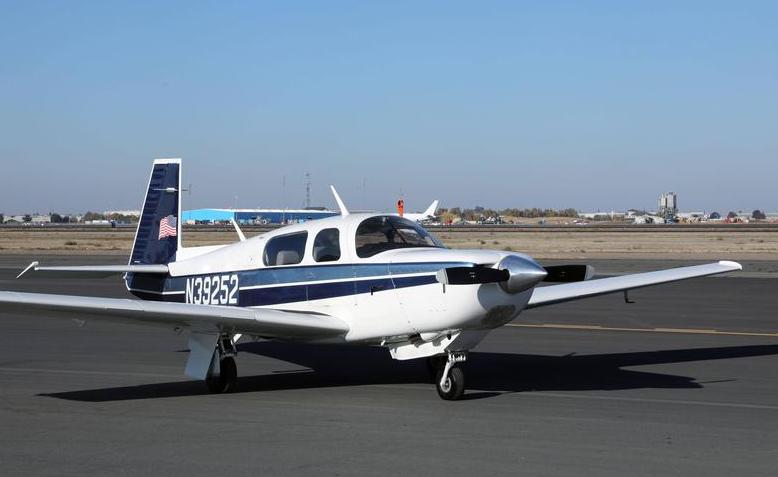

Presenting the 1989 Mooney M20K, a testament to Mooney's engineering excellence and
performance. This aircraft features a meticulously maintained Teledyne Continental 210 HP
engine, overhauled to exacting standards in 2019. With a comprehensive Garmin avionics
suite, including a GTN 750 touchscreen GPS/Nav/Com and ADS-B In/Out transponder,
navigating the skies is efficient and safe. The interior showcases luxurious gray leather seats,
complemented by premium cabin amenities. With recent upgrades and careful maintenance,
this Mooney M20K is a standout choice for pilots seeking reliability and comfort. Offered at
$239,000 USD, located at Jet Center MFR Medford, Oregon

Airframe:
TTAF: 1653.4

Engines:
Teledyne Continental Motor TSIO-360-MB, 210 HP
Serial Number: 317211
187.4 hours since major overhaul
1,600 hours Time Between Overhaul (TBO)
Compression readings at annual: #1 70, #2 70, #3 69, #4 71, #5 74, #6 69
Engine overhauled to new tolerances 03/21/2019 by Poplar Grove Airmotive
Turbocharger overhauled by Main Turbo 11/01/2022
New spark plugs installed 11/01/2022

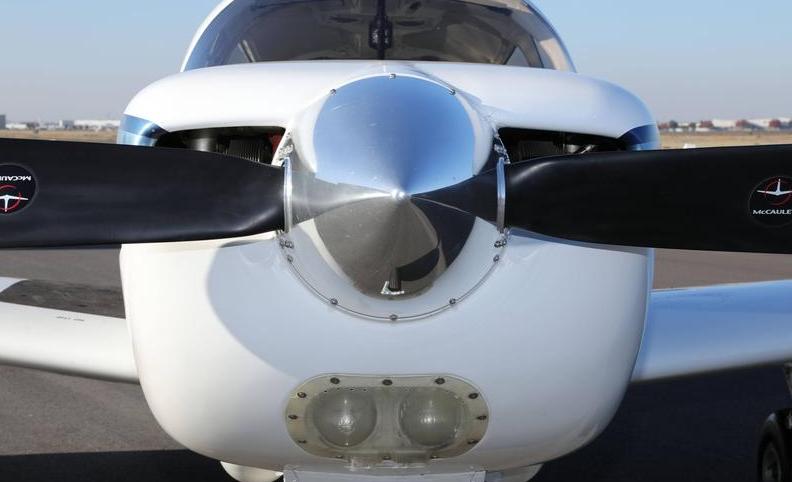

Props:

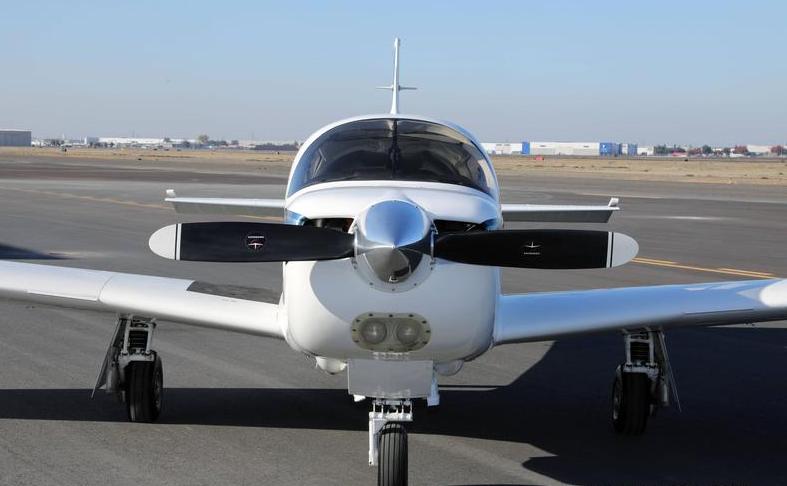

McCauley 2A34C221B/G-90DHC-16E two blade
Serial Number: 180312
187.4 hours since new
2,000 Hour TBO
Propeller manufactured new by McCauley Propeller Systems 04/26/2018
Governor manufactured new by McCauley Propeller Systems 11/14/2018

- **Audio Panel:** Garmin GMA 35 remote touchscreen
- **GPS/Nav/Com:** Garmin GTN 750 WAAS touchscreen GPS/Nav/Com per STC SA01933LA
- **Nav/Com:** King KX 155 TSO
- **EFIS:** Aspen Avionics Evolution EFD1000 PFD
- **GPS/VOR/LOC:** King KI 206 GPS/VOR/LOC course deviation indicator
- **HSI:** Bendix/King KI 525A horizontal situation indicator
- **Autopilot/FD:** King KAP 150 autopilot system with altitude hold
- **Transponder:** Garmin GTX 345 ADS-B In/Out transponder per STC SA01714WI
- **ADS-B In/Out:** Garmin GTX 345 ADS-B In/Out transponder
- **Encoder:** Garmin GAE12 encoder
- **Engine Monitor:** Electronics International CGR-30P color engine monitor with fuel flow
- **Intercom Sys.:** Four place intercom system via GMA 35 audio panel w/four standard jacks
- **Chronometer:** Davtron M811B digital chronometer
- **ELT:** Merl BP-1020 ELT with panel mounted switch
- **Additional:** AirGizmos iPad Mini 4 mount, true airspeed indicator, lighter/auxiliary power
port, panel mounted USB connector

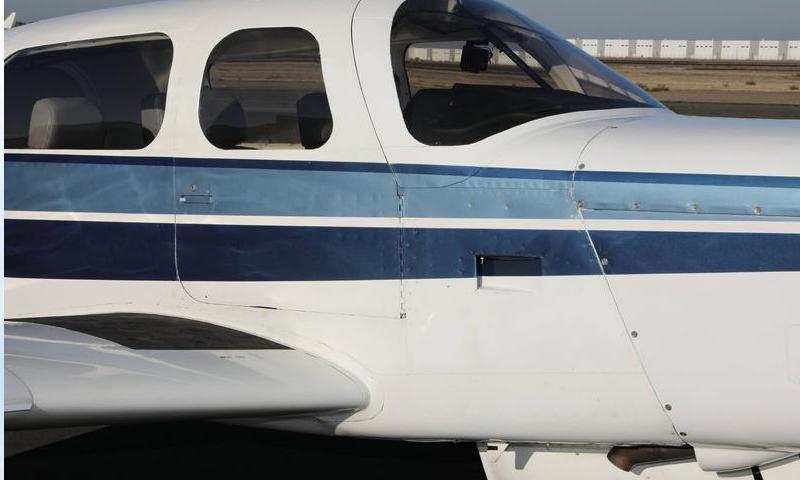

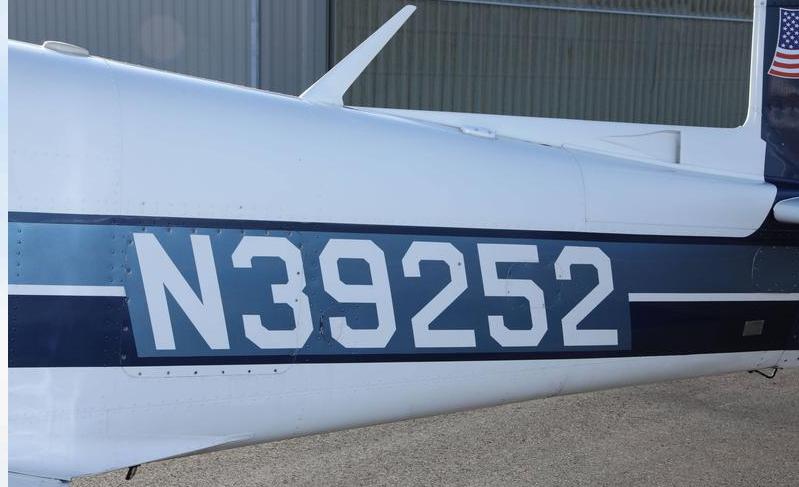

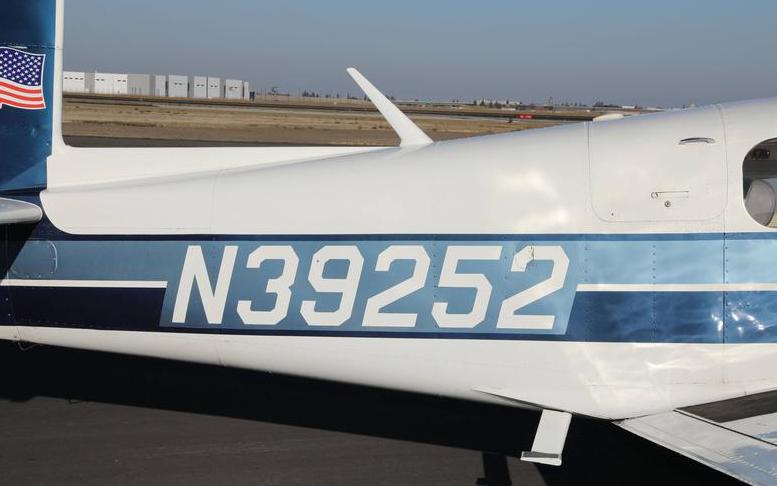

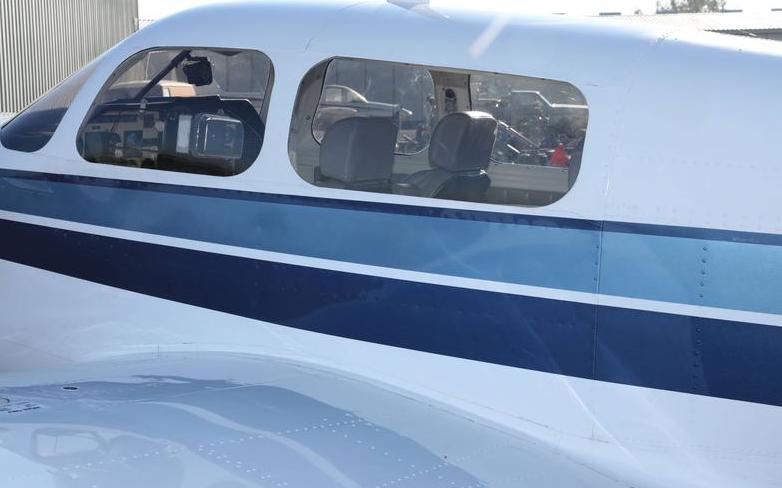

- Original factory finish
- P&L overall Really White (TC 10010) with Ming Blue Metallic (T 20453) and Sapphire Blue
Metallic (TC 20432) trim accents and striping
- Condition 6 exterior paint grading

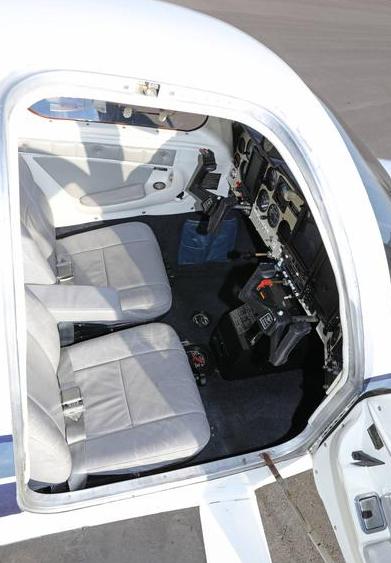

- Seats recovered in light gray leather 09/02/2017
- White headliner and textured plastic overhead trim
- White textured plastic window trim
- White textured plastic side panels with gray trim over navy carpeting
- Pilot and copilot gray leather seats with perforated inserts, headrests, pilot stowable center
armrest, shoulder harnesses and lap belts

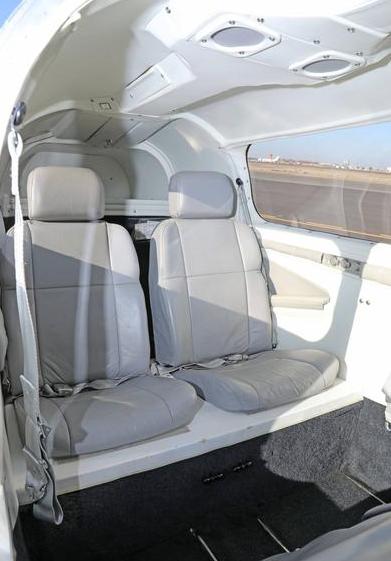

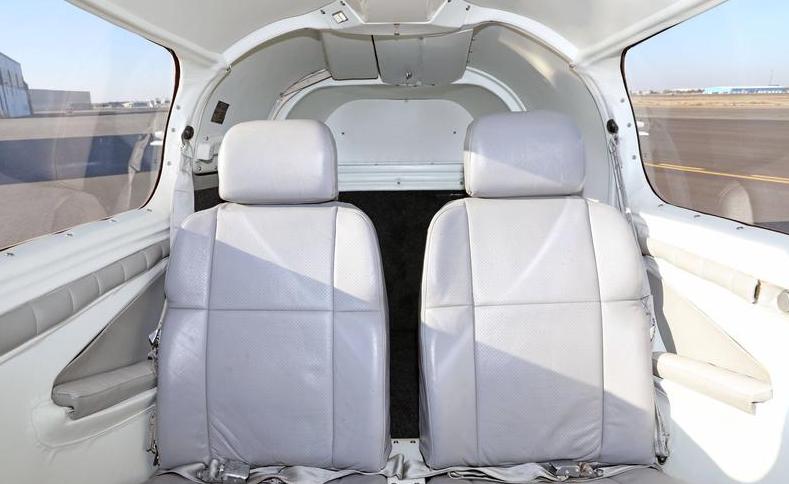

- Rear gray leather seats with perforated inserts, headrests, reclining seatbacks and lap belts
- Navy floor carpeting
- Two upper and two lower forward cabin air vents
- Aft overhead cabin air vents
- Two overhead cabin speakers

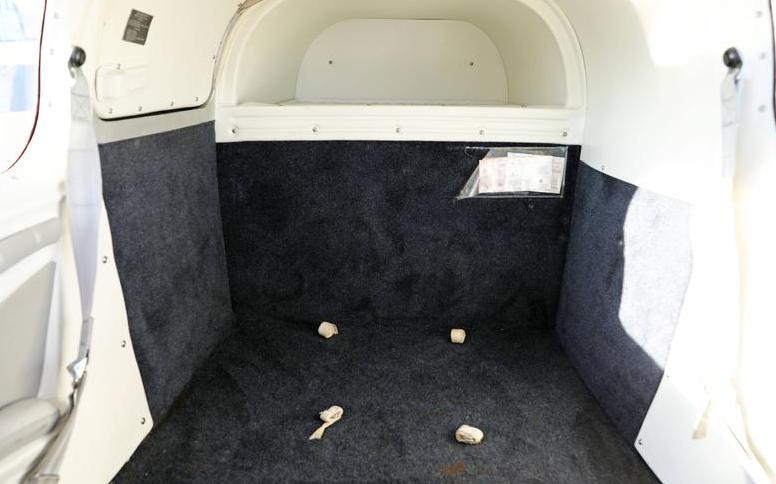

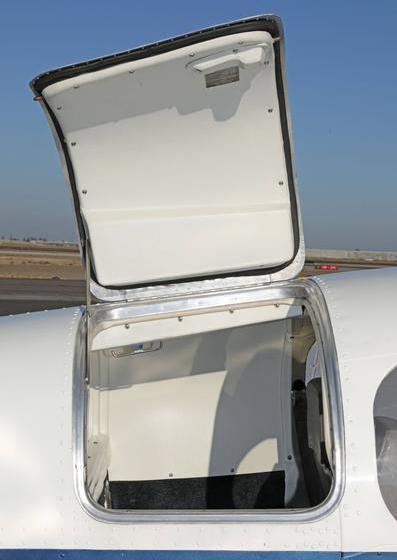

- Baggage door with spacious aft baggage area, hanger, hat shelf, tie down rings and straps
- Condition 7 interior grading

- New Bendix ignition switch installed 11/01/2022
- Weldon electric fuel boost pump and repaired regulator installed 05/19/2021
- Complete landing gear and preloads performed 05/18/2021
- Brake linings replaced 05/18/2021
- All instrument panel shock mounts replaced 05/18/2021
- Landing gear shock discs replaced 04/26/2018
- Fuel tanks resealed 09/02/2023
- Four port factory built-in oxygen system
- Standby vacuum pump
- Ground power receptacle
- External oxygen fill port
- No copilot brakes

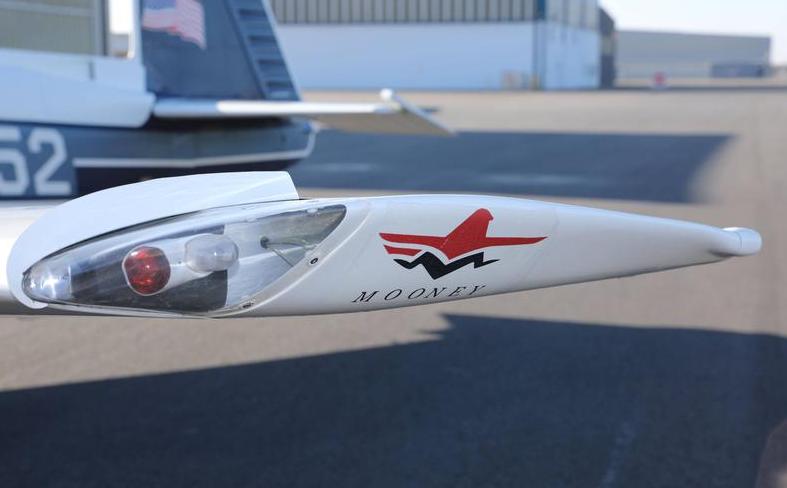

- Wing tip and tail strobe lights
- Fuel boost pump
- Electric flaps
- Electric cowl flaps

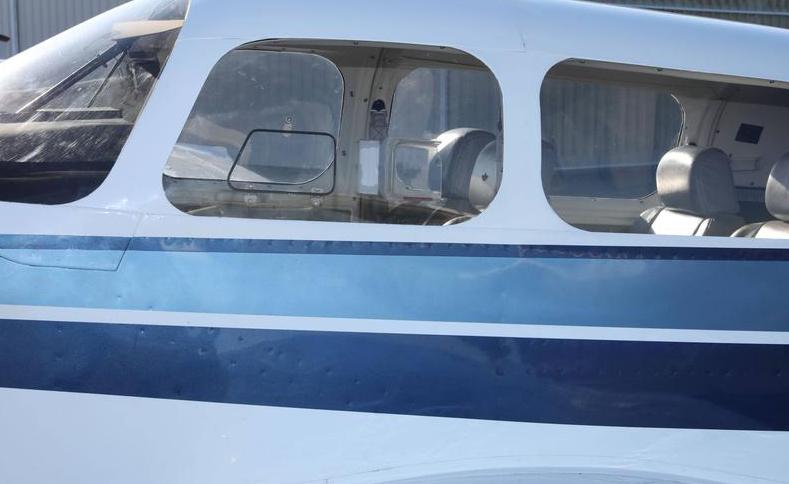

- Pilot side storm window with air scoop
- Parking brake
- Tinted sun visors
- Tow Bar

Annual inspection due by 12/02/2024
ELT battery replacement due by 11/30/2024
New Composite Oxygen cylinder 05/26/23
All logbooks continuous and complete

**Specifications:**
- **Wingspan:** 36' 1"
- **Length:** 25' 5"
- **Height:** 8' 4"
- **Gross Weight:** 2,900 lbs.
- **Useful Load:** 894.95 lbs. actual
- **Fuel Capacity:** 78.6 US gals (75.6 gals usable)
