2020 VELOCITY V-TWIN
Reg # N535EG
$519,000
Summary

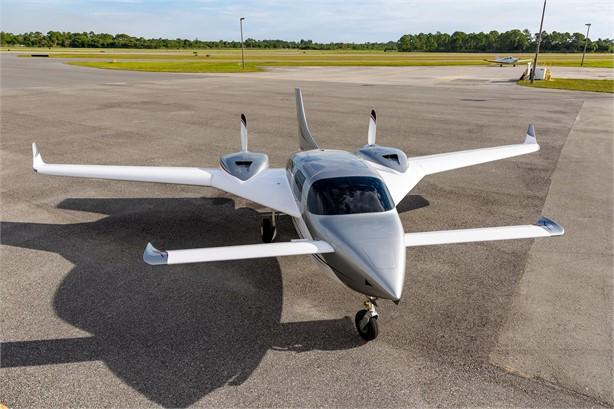

Here is your opportunity to own a Multiple Award Winning V-Twin Velocity, (2023 AirVenture Champion and 2023 Sun n; Fun "Outstanding Aircraft" ) This Aircraft was constructed at the Velocity facility and boasts a Custom Garmin Panel with Two G3X Screens, GTN-750 WAAS Touchscreen for LPV Approaches. The Engines are NEW custom built by Jimmy Broad at JB Engines in Sebring, FL MT Props, Completely Custom Italian Leather Interior, and a Custom Paint Scheme.
Airframe:
80 Hours Since New
(note: Aircraft is actively flying and time will increase)
We invite you to visit this aircrafts site for even more details, Performance Specs, More Photos, ETC
: >>> https://www.n535eg.com/index.php
The V Twin is the 2023 AirVenture Champion and 2023 Sun n' Fun "Outstanding Aircraft."
Engines:
80 Hours Since NEW Engines by JB Engines in Sebring FL.
NEW IO360 BZ4XD3-6 Engines
Props:
80 Since New MT Props
Airframe:
80 Hours Since New
(note: Aircraft is actively flying and time will increase)
We invite you to visit this aircrafts site for even more details, Performance Specs, More Photos, ETC
: >>> https://www.n535eg.com/index.php
The V Twin is the 2023 AirVenture Champion and 2023 Sun n' Fun "Outstanding Aircraft."
Engines:
80 Hours Since NEW Engines by JB Engines in Sebring FL.
NEW IO360 BZ4XD3-6 Engines
Props:
80 Since New MT Props
Avionics

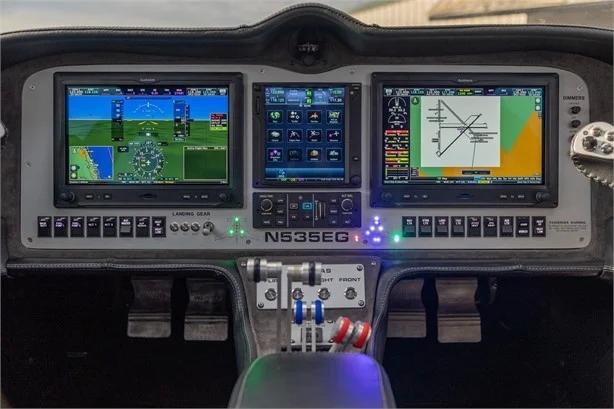

The panel is a work of art. It is etched to allow for filled (painted) lettering, finished off in Suede and silver & black anodized parts. In a nod to days gone by, a SIRS Pegasus (lit) Compass and Quartz Electric Aircraft clock (also lit) provide a bit of a nostalgic feel to the panel, while at the same time providing useful utility.
She features a full IFR Garmin G3Xx2 touch screen equipped panel with a GTN-750 (GPS/NAV/COM) with traffic, weather and terrain. The details: a GDU-465 (with Sirius XM), a GDU-460, two GSU-25s, a GAD-27, a GAD-29, aGTR-20, a GTX-45R, a GMA-35, a GMC-507, two GEA-24s (with two accompanying GSA-28 servos) fed by a Garmin heated pitot tube (with AOA), and anodized ball vents that make the cabin comfortable. This remarkable suite of Garmin components fully integrate dual ADAHRS for IFR flying confidence. She also has panel-accessible twin 700 watt electric heaters and a four camera “Safety of Flight” video system which includes three state-of-the-art bullet cameras and a FLIR PathFindIR® camera.
At the heart of 535 are twin certified Concorde 24v batteries. Circuit protection is provided by Vertical Power’s VPX-Pro, mounted on the canard for ease of access. Driving the electrical system are twin 150A Plane Power alternators that enable full bus power off of one alternator, should either alternator fail entirely! Additional features include Smart Glide, ADSB in and out, seat heaters, a Guardian panel mounted CO detector, both Bose headphone & standard headphone jacks for the pilot + three occupants, Garmin push-to-command, multiple USB ports, and finally, stick-accessed auto-trim round out this exceptional setup.
She features a full IFR Garmin G3Xx2 touch screen equipped panel with a GTN-750 (GPS/NAV/COM) with traffic, weather and terrain. The details: a GDU-465 (with Sirius XM), a GDU-460, two GSU-25s, a GAD-27, a GAD-29, aGTR-20, a GTX-45R, a GMA-35, a GMC-507, two GEA-24s (with two accompanying GSA-28 servos) fed by a Garmin heated pitot tube (with AOA), and anodized ball vents that make the cabin comfortable. This remarkable suite of Garmin components fully integrate dual ADAHRS for IFR flying confidence. She also has panel-accessible twin 700 watt electric heaters and a four camera “Safety of Flight” video system which includes three state-of-the-art bullet cameras and a FLIR PathFindIR® camera.
At the heart of 535 are twin certified Concorde 24v batteries. Circuit protection is provided by Vertical Power’s VPX-Pro, mounted on the canard for ease of access. Driving the electrical system are twin 150A Plane Power alternators that enable full bus power off of one alternator, should either alternator fail entirely! Additional features include Smart Glide, ADSB in and out, seat heaters, a Guardian panel mounted CO detector, both Bose headphone & standard headphone jacks for the pilot + three occupants, Garmin push-to-command, multiple USB ports, and finally, stick-accessed auto-trim round out this exceptional setup.
Exterior
2020
Custom Paint Scheme By Scheme Designers, Inc. Paint by Air Crafters Refinishing, inc. Always Hangared
Custom Paint Scheme By Scheme Designers, Inc. Paint by Air Crafters Refinishing, inc. Always Hangared
Interior
2020

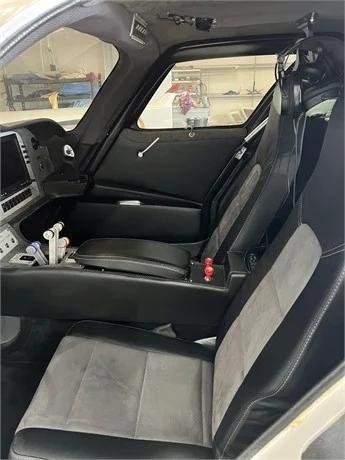

custom (Lorenz designed) quick release-to-2x-sized hard-points for all seat pans, Inertia 3-point seat belts, and Corbeau roller bearing seat brackets for front seats replacing the Velocity kit-standard metal-on-metal slides. The combination of the Lorenz quick release and Corbeau sliding seat brackets makes for simple adjustments and removal for all seats. Integrated seat heaters and twin electric full cabin heat. All seats constructed of 3 layer aircraft-rated Conform Foam (3 flame resistant memory foams of various of densities) and a thin Conform foam laminate to cover. Meets FAR 25.853 & 25.855.
The interior is finished with actual Italian leather, a charcoal Alcantara headliner, German (Porsche) velour carpet and brushed aluminum trim throughout. The sticks and brow are hand-stitched in Italian leather. She has matching a large vanity mounted tool and document satchel and a massive front keel console compartment with shielded USBx2. Upgraded Hendricks door latch systems. Bose and traditional headset jacks x4 + Mid-Continent Digital Clock & USB charger (x2) are provided for the comfort of rear seat passengers.
custom (Lorenz designed) quick release-to-2x-sized hard-points for all seat pans, Inertia 3-point seat belts, and Corbeau roller bearing seat brackets for front seats replacing the Velocity kit-standard metal-on-metal slides. The combination of the Lorenz quick release and Corbeau sliding seat brackets makes for simple adjustments and removal for all seats. Integrated seat heaters and twin electric full cabin heat. All seats constructed of 3 layer aircraft-rated Conform Foam (3 flame resistant memory foams of various of densities) and a thin Conform foam laminate to cover. Meets FAR 25.853 & 25.855.
The interior is finished with actual Italian leather, a charcoal Alcantara headliner, German (Porsche) velour carpet and brushed aluminum trim throughout. The sticks and brow are hand-stitched in Italian leather. She has matching a large vanity mounted tool and document satchel and a massive front keel console compartment with shielded USBx2. Upgraded Hendricks door latch systems. Bose and traditional headset jacks x4 + Mid-Continent Digital Clock & USB charger (x2) are provided for the comfort of rear seat passengers.
Additional Equipment
Her wingspan is just about 35’ and she measures 22’ from tip to tail. The all-LED exterior lighting package includes a beautiful triple landing light setup, integrated wingtip positions and wig-wags. She has four external cameras, including a strake-mounted FLIR Corporation FlightPathIR® and three bullet cameras perfectly placed to ensure on-demand visibility of all landing gear and propellers during flight. A custom fitted, highly insulative rubber boot resides on the upper part of her forward landing gear. A permanent tow bar attachment bracket is provided for ease of movement.
Remarks
May 2024 Conditional Inspection
Specifications and/or descriptions are provided as introductory information. They do not constitute representations or warranties of Scott MacDonald Aircraft Sales, Inc.; Accordingly, you should rely on your own inspection of the aircraft. The offer for sale of this aircraft is subject to contract and the aircraft may at any time be withdrawn from the market without prior notice. Specification is subject to verification by the purchaser.
Specifications and/or descriptions are provided as introductory information. They do not constitute representations or warranties of Scott MacDonald Aircraft Sales, Inc.; Accordingly, you should rely on your own inspection of the aircraft. The offer for sale of this aircraft is subject to contract and the aircraft may at any time be withdrawn from the market without prior notice. Specification is subject to verification by the purchaser.
